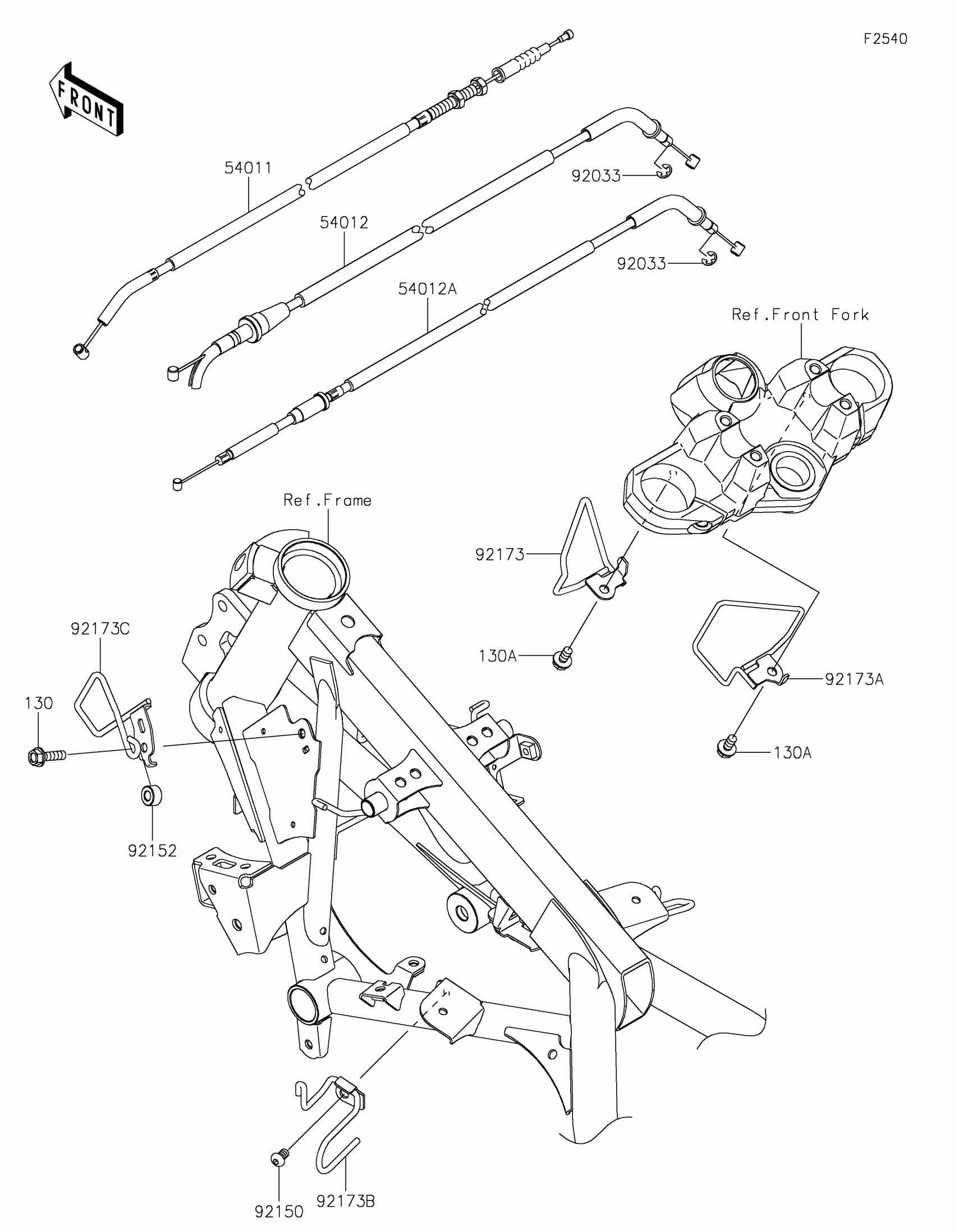

Kawasaki Versys-X 300 Cables Diagram

Description

Price

54011

CABLE-CLUTCH

54011-0622

$37.38

54012

CABLE-THROTTLE,OPENING

54012-0650

$39.01

54012A

CABLE-THROTTLE,CLOSING

54012-0651

$39.01

92033

RING-SNAP

92033-0787

$0.42

92150

BOLT,6X10

92150-1577

$3.60

92152

COLLAR,6.5X14X8

92152-2352

$3.74

92173

CLAMP,UPP HOLDER,LH

92173-1629

$3.90

92173A

CLAMP,UPP HOLDER,RH

92173-1630

$3.90

92173B

CLAMP,THROTTLE CABLE

92173-1631

$5.11

92173C

CLAMP,CLUTCH CABLE

92173-1813

$5.88

130

BOLT-FLANGED,6X22

130BA0622

$1.29

130A

BOLT-FLANGED,6X12

130BB0612

$2.34
