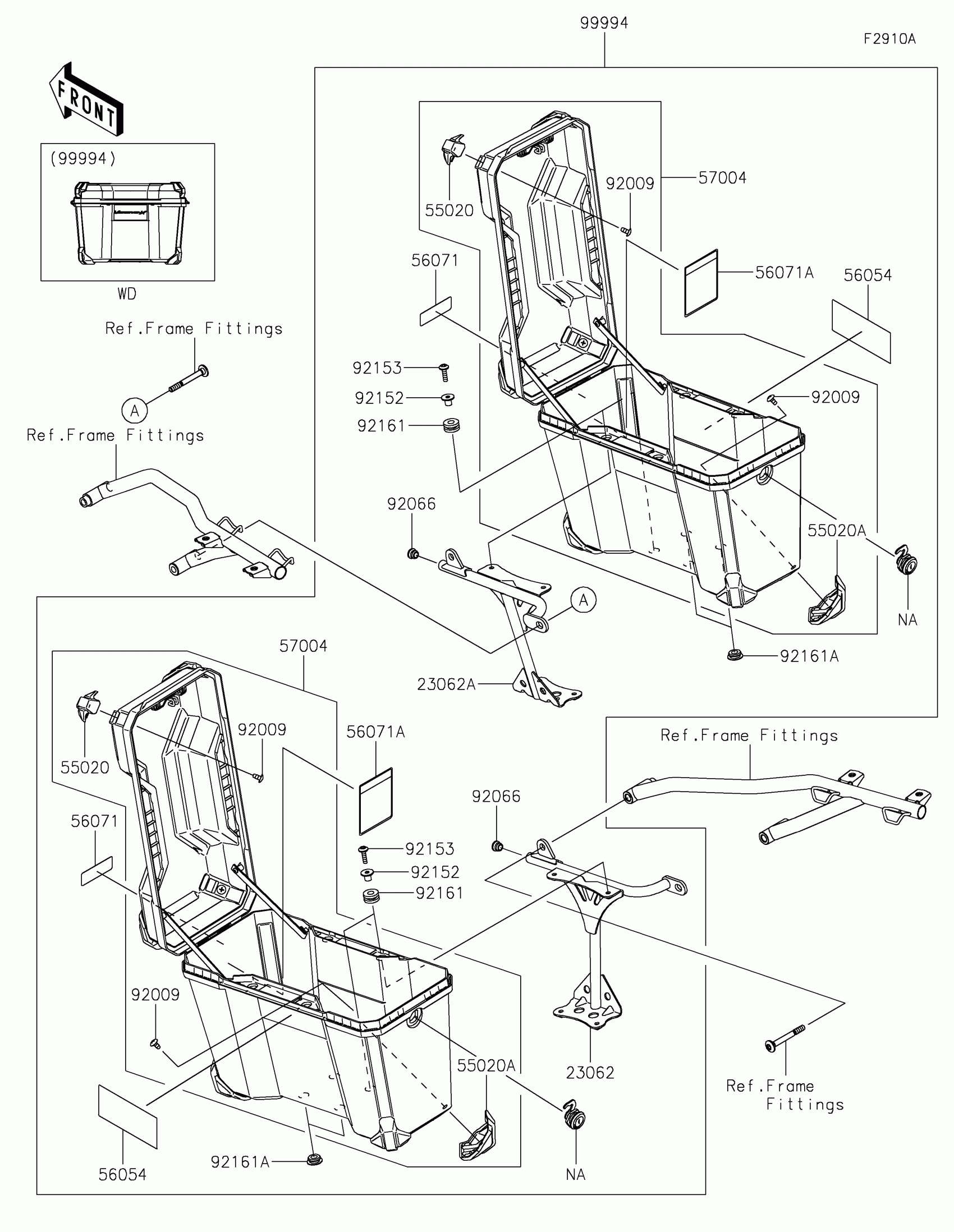

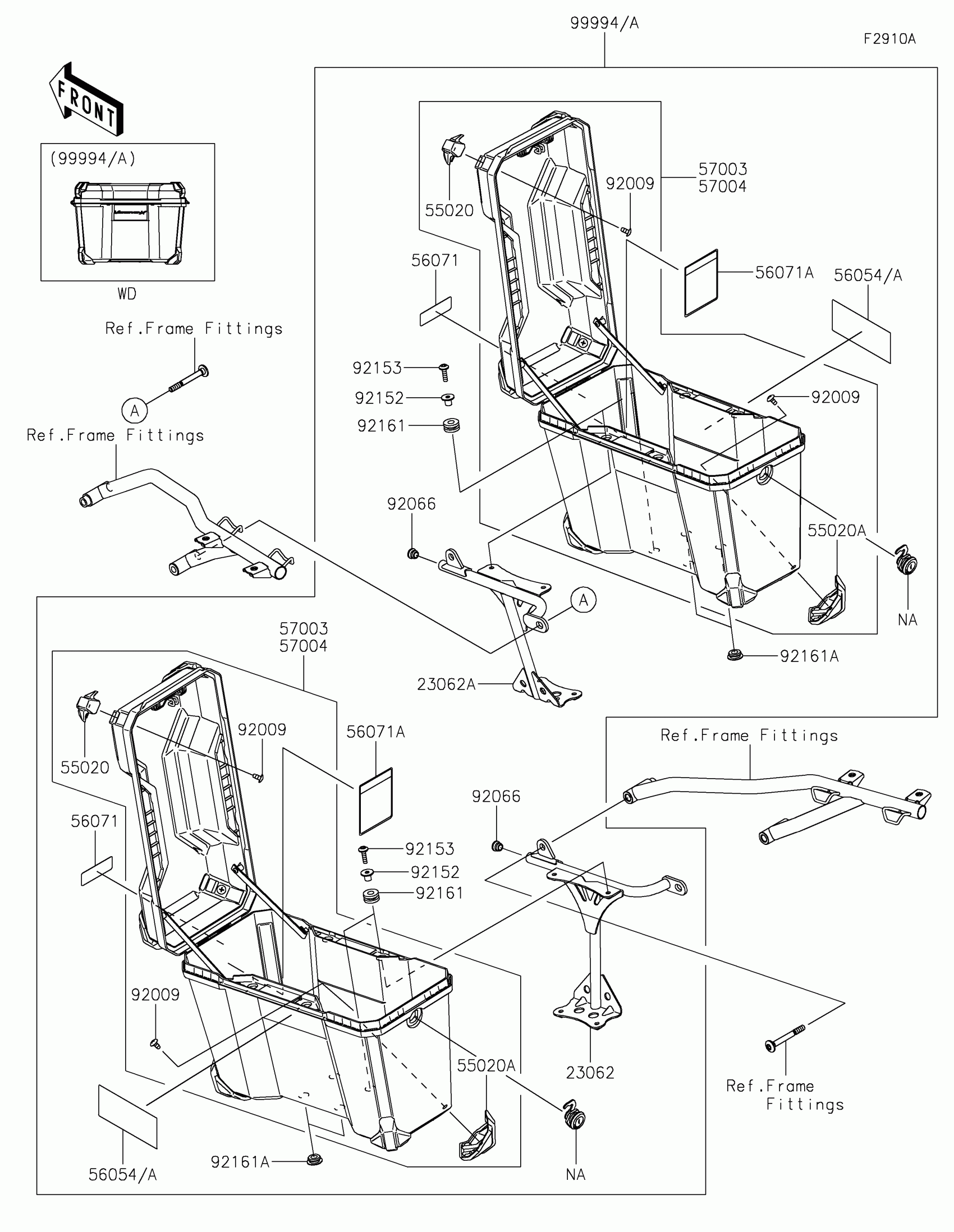

Kawasaki Versys-X 300 Accessory(Pannier) Diagram

Description

Price

23062

BRACKET-COMP,LH

23062-0965

$255.30

23062A

BRACKET-COMP,RH

23062-0966

$255.30

55020

GUARD,UPP

55020-2174

$5.31

55020A

GUARD,LWR

55020-2175

$5.83

56054

MARK,BAG,VERSYS-X

56054-2335

$42.55

56071

LABEL-WARNING,PICTOGRAM

56071-0457

$7.43

56071A

LABEL-WARNING,PANNIER LOAD ETC

56071-0724

$42.57

57004

BAG-ASSY,PANNIER

57004-0002

$165.39

92009

SCREW,6X12

92009-1480

$3.21

92066

PLUG

92066-1184

$4.26

92152

COLLAR,6.5X10X13.1

92152-0332

$5.65

92153

BOLT,SOCKET,6X23

92153-1267

$2.80

92161

DAMPER,10X24X12

92161-0927

$6.00

92161A

DAMPER,PANNIER BOTTOM

92161-1910

$3.57

99994

KIT-ACCESSORY,PANNIER

99994-1271

$504.14
