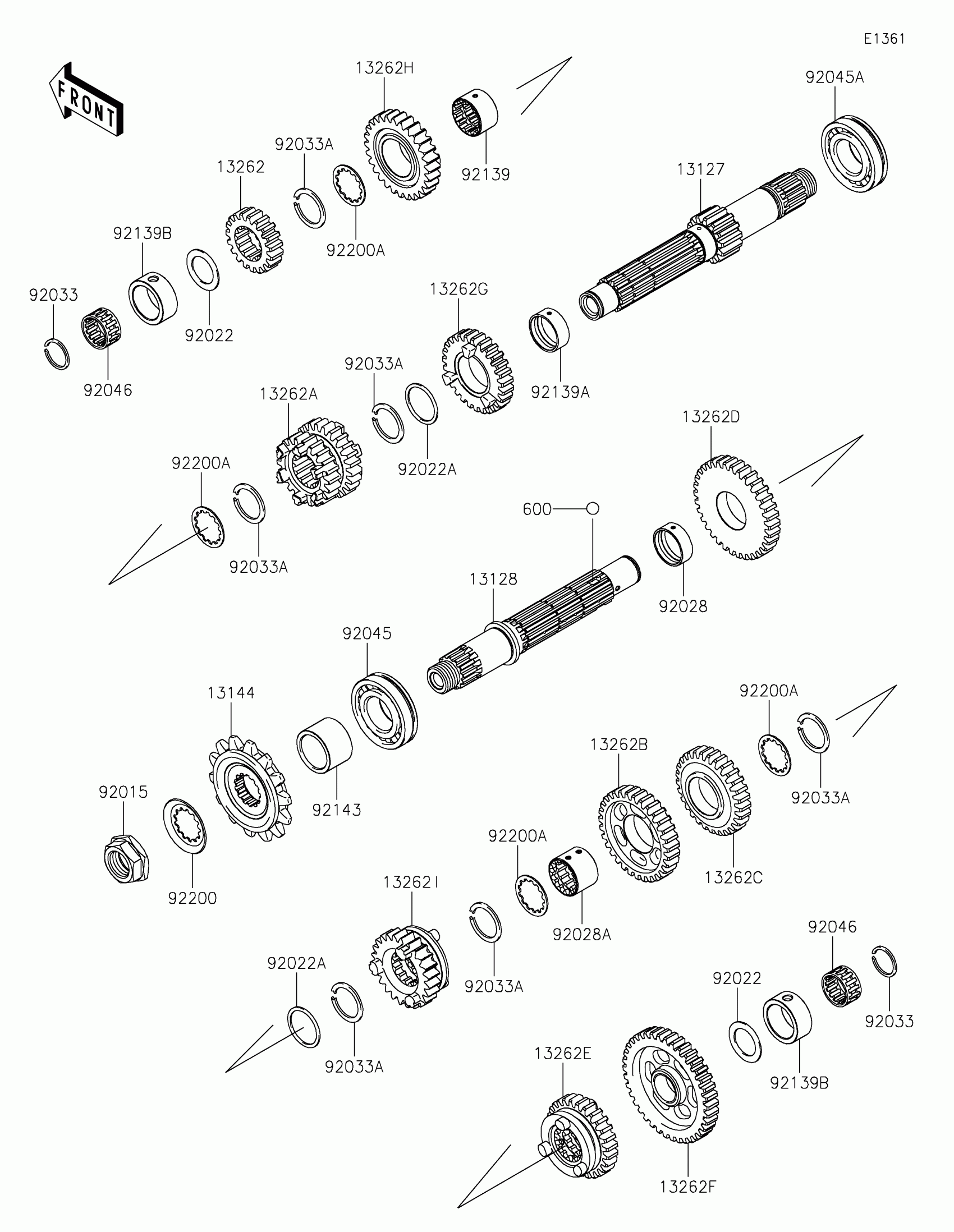

Kawasaki Versys-X 300 ABS Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT

13127-0668

$211.51

13128

SHAFT-TRANSMISSION OUTPUT

13128-0693

$170.54

13144

SPROCKET-OUTPUT,14T

13144-0577

$52.93

13262

GEAR,INPUT 2ND,19T

13262-0461

$63.70

13262A

GEAR,INPUT 3RD&4TH,22T&25T

13262-0464

$132.02

13262B

GEAR,OUTPUT 3RD,31T

13262-0466

$86.62

13262C

GEAR,OUTPUT 4TH,29T

13262-0467

$86.62

13262D

GEAR,OUTPUT 2ND,34T

13262-0468

$86.62

13262E

GEAR,OUTPUT 5TH,27T

13262-0470

$121.74

13262F

GEAR,OUTPUT LOW,38T

13262-0921

$113.03

13262G

GEAR,INPUT 5TH,27T

13262-0922

$86.78

13262H

GEAR,INPUT 6TH,28T

13262-1265

$105.02

13262I

GEAR,OUTPUT 6TH,24T

13262-1321

$115.96

600

BALL-STEEL,5/32

600A0500

$0.81

92015

NUT,20MM

92015-1963

$14.90

92022

WASHER,20.5X30X1,STEEL

92022-112

$8.86

92022A

WASHER,25.3X30X1

92022-161

$10.65

92028

BUSHING,9.4X25X28

92028-1564

$21.74

92028A

BUSHING,OUTPUT 3RD&4TH GEAR

92028-1858

$20.97

92033

RING-SNAP,20MM

92033-015

$4.26

92033A

RING-SNAP,24MM

92033-026

$8.79

92045

BEARING-BALL,6TM-6205NX3

92045-0735

$32.64

92045A

BEARING-BALL,#6205NX3

92045-1013

$24.30

92046

BEARING-NEEDLE,20X25X12.8

92046-0607

$21.99

92139

BUSHING,26X28X16.6

92139-0781

$24.93

92139A

BUSHING,25X28X10.4

92139-0793

$15.36

92139B

BUSHING,25X33X14

92139-0872

$38.19

92143

COLLAR,SPROCKET

92143-1968

$22.25

92200

WASHER

92200-0851

$5.98

92200A

WASHER

92200-1389

$2.34
