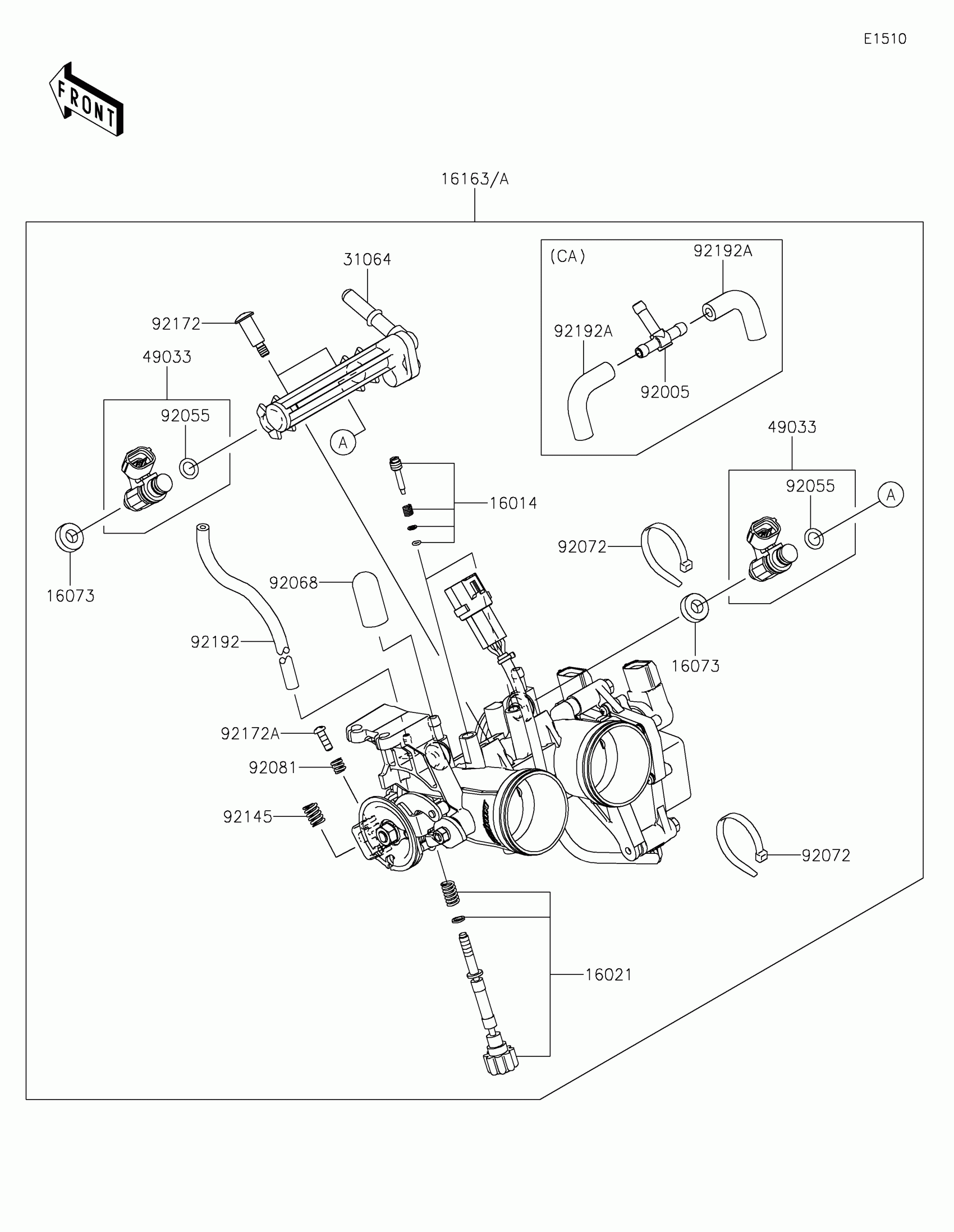

Kawasaki Versys-X 300 ABS Throttle Diagram

Description

Price

16014

SCREW-PILOT AIR

16014-0002

$25.16

16021

SCREW-THROTTLE STOP

16021-0027

$72.83

16073

INSULATOR

16073-0129

$6.00

31064

PIPE-COMP,FUEL

31064-0164

$88.03

49033

NOZZLE-INJECTION

49033-0558

$132.97

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.97

92072

BAND,SUB-HARNESS

92072-0012

$5.00

92081

SPRING

92081-1620

$4.96

92145

SPRING

92145-0656

$6.89

92172

SCREW,PIPE INJECTION

92172-0064

$2.80

92172A

SCREW

92172-0129

$5.59

92192

TUBE,3X7X200

92192-1170

$4.37
