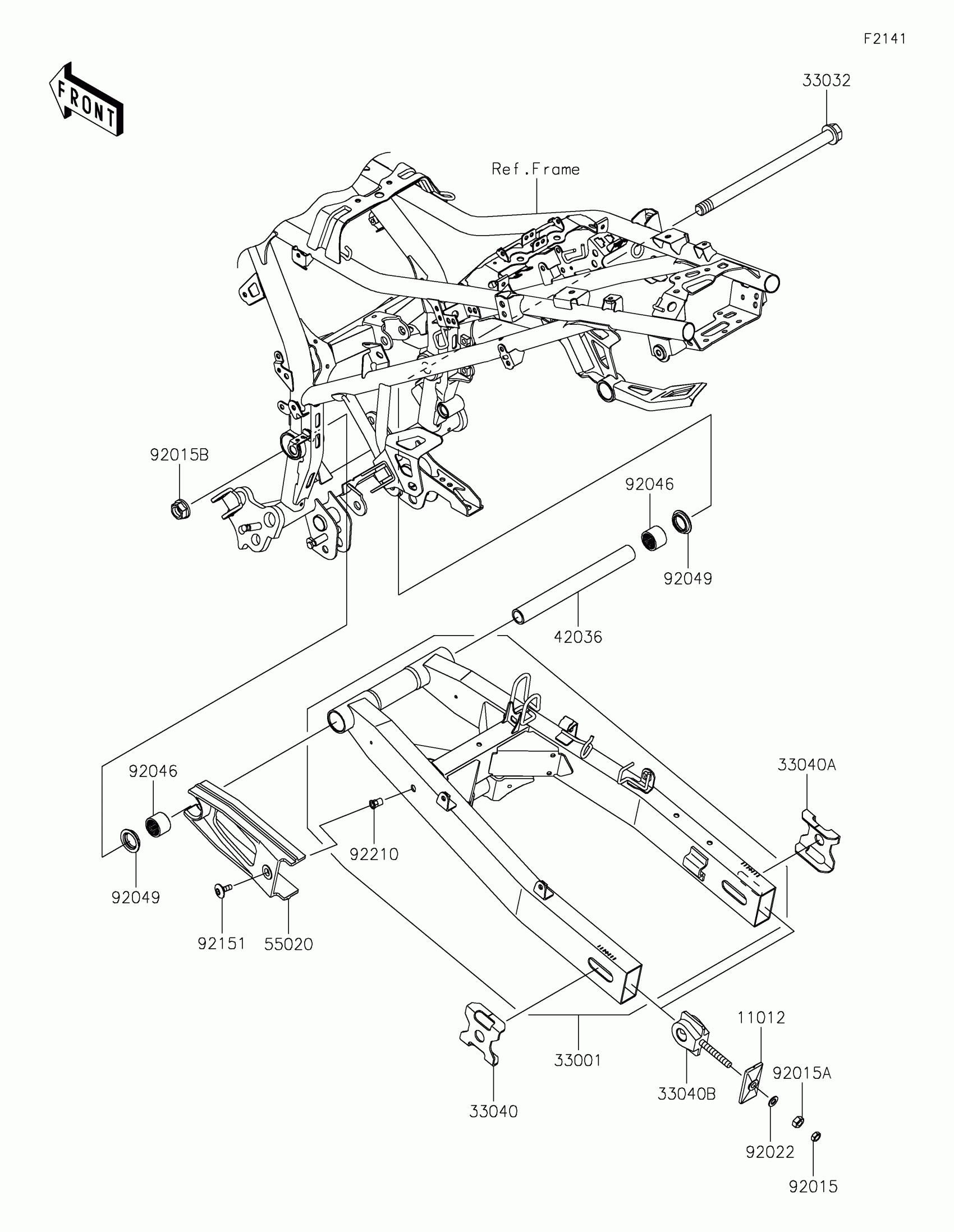

Kawasaki Versys-X 300 ABS Swingarm Diagram

Description

Price

11012

CAP,CHAIN ADJUSTER,F.S.BLACK

11012-1871-18R

$27.22

33001

ARM-COMP-SWING,F.S.BLACK

33001-0684-18R

$457.07

33032

SHAFT-SWING ARM

33032-1134

$53.59

33040

ADJUSTER-CHAIN,OUTER,F.S.BLACK

33040-0030-18R

$22.86

33040A

ADJUSTER-CHAIN,OUTER,F.S.BLACK

33040-0088-18R

$23.07

33040B

ADJUSTER-CHAIN,INNER

33040-1116

$30.34

42036

SLEEVE,16.1X22X213.8

42036-0816

$46.83

55020

GUARD,CHAIN

55020-0317

$28.84

92015

NUT,8MM

92015-1364

$3.92

92015A

NUT,8MM

92015-1658

$4.87

92015B

NUT,FLANGED,16MM

92015-1946

$12.74

92022

WASHER,8.5X16X1.2

92022-1582

$0.96

92046

BEARING-NEEDLE,22X28X20

92046-0610

$24.16

92049

SEAL-OIL,MHA22 28 5.7F

92049-1254

$9.28

92151

BOLT,SOCKET,6X18

92151-1149

$7.68

92210

NUT,POP,6MM,L=15

92210-1397

$5.48
