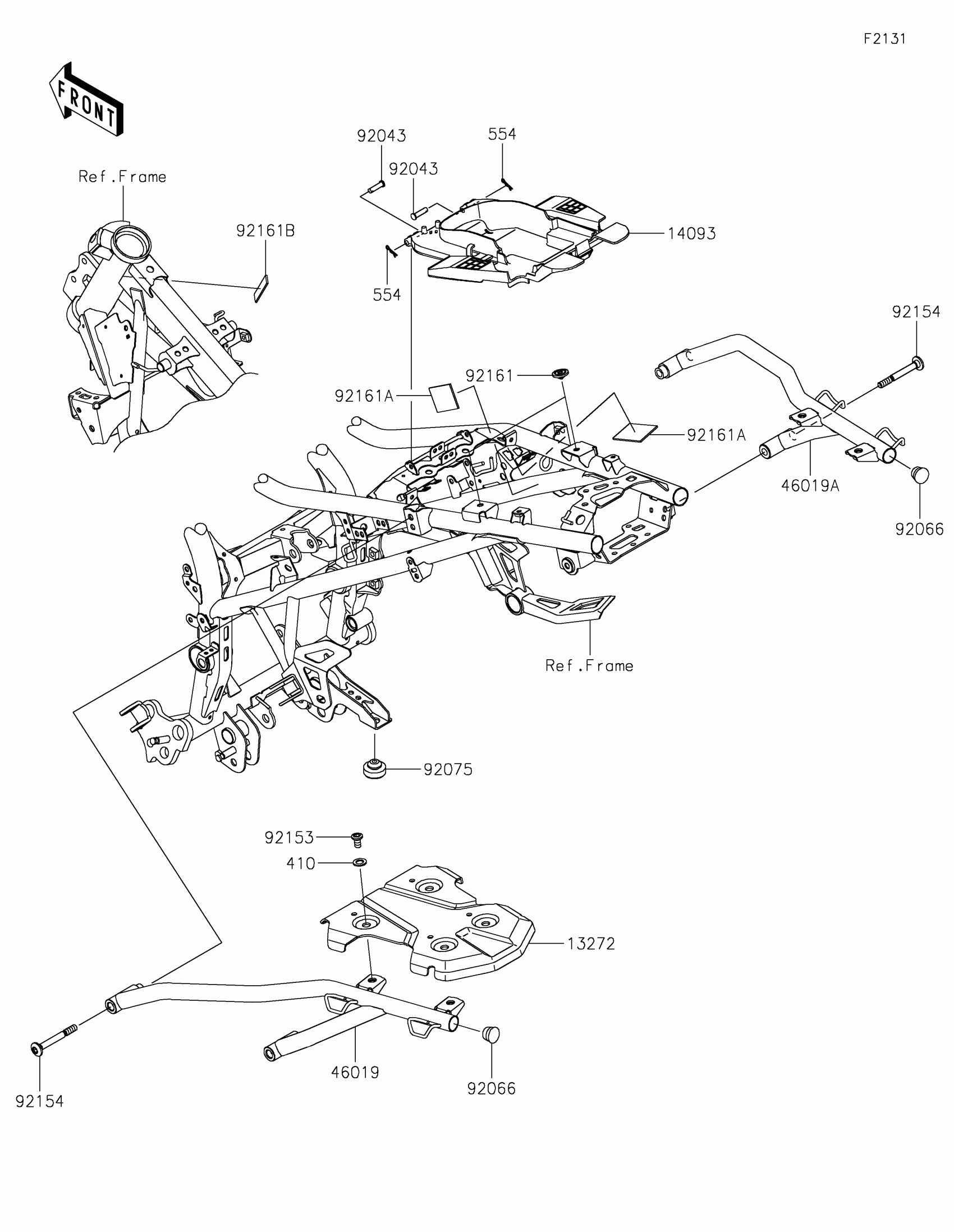

Kawasaki Versys-X 300 ABS Frame Fittings Diagram

Description

Price

13272

PLATE

13272-2247

$127.10

14093

COVER,TOOL

14093-0694

$25.12

46019

GRIP-ASSY,LH,F.S.BLACK

46019-0070-18R

$139.02

46019A

GRIP-ASSY,RH,F.S.BLACK

46019-0071-18R

$139.02

92043

PIN,6X23

92043-0746

$1.97

92066

PLUG

92066-1220

$4.96

92075

DAMPER

92075-1045

$8.86

92153

BOLT,SOCKET,8X15

92153-1810

$3.90

92154

BOLT,SOCKET,8X73

92154-2339

$6.38

92161

DAMPER,8X22X10

92161-1685

$0.88

92161A

DAMPER

92161-1883

$1.42

92161B

DAMPER,13X48X2

92161-1972

$3.57

410

WASHER-PLAIN-SMALL,10MM

410AA1000

$0.59

554

PIN-SNAP,1.2X21.2

554DA0600

$0.95
