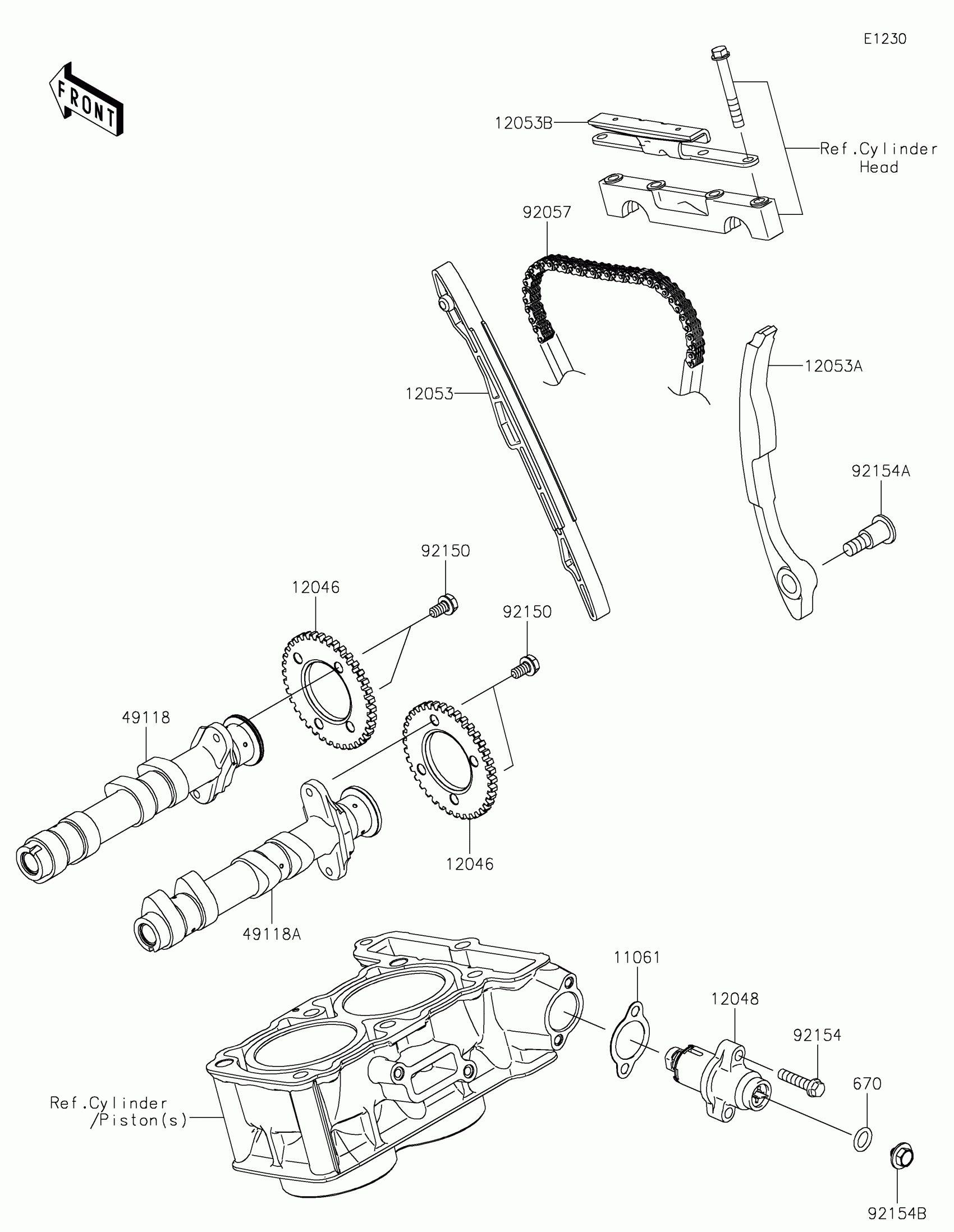

Kawasaki Versys-X 300 ABS Camshaft(s)/Tensioner Diagram

Description

Price

11061

GASKET

11061-0792

$3.68

12046

SPROCKET,38T

12046-0072

Unavailable

12048

TENSIONER-ASSY

12048-0084

$97.20

12053

GUIDE-CHAIN,FR

12053-0102

$30.76

12053A

GUIDE-CHAIN,RR

12053-0191

$61.36

12053B

GUIDE-CHAIN,UPP

12053-0235

$37.51

49118

CAMSHAFT-COMP,EXHAUST

49118-0743

$371.14

49118A

CAMSHAFT-COMP,INTAKE

49118-0921

$381.80

670

O RING,10MM

670D2010

$1.94

92057

CHAIN,CAM,92RH2010-124M

92057-0595

$86.82

92150

BOLT,FLANGED,6X11

92150-1725

$5.00

92154

BOLT,FLANGED,6X25

92154-0819

$2.32

92154A

BOLT,SOCKET,8X29.2

92154-0953

$5.05

92154B

BOLT,FLANGED,6X6

92154-2352

$2.61
