2020 Kawasaki Versys-X 300 ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

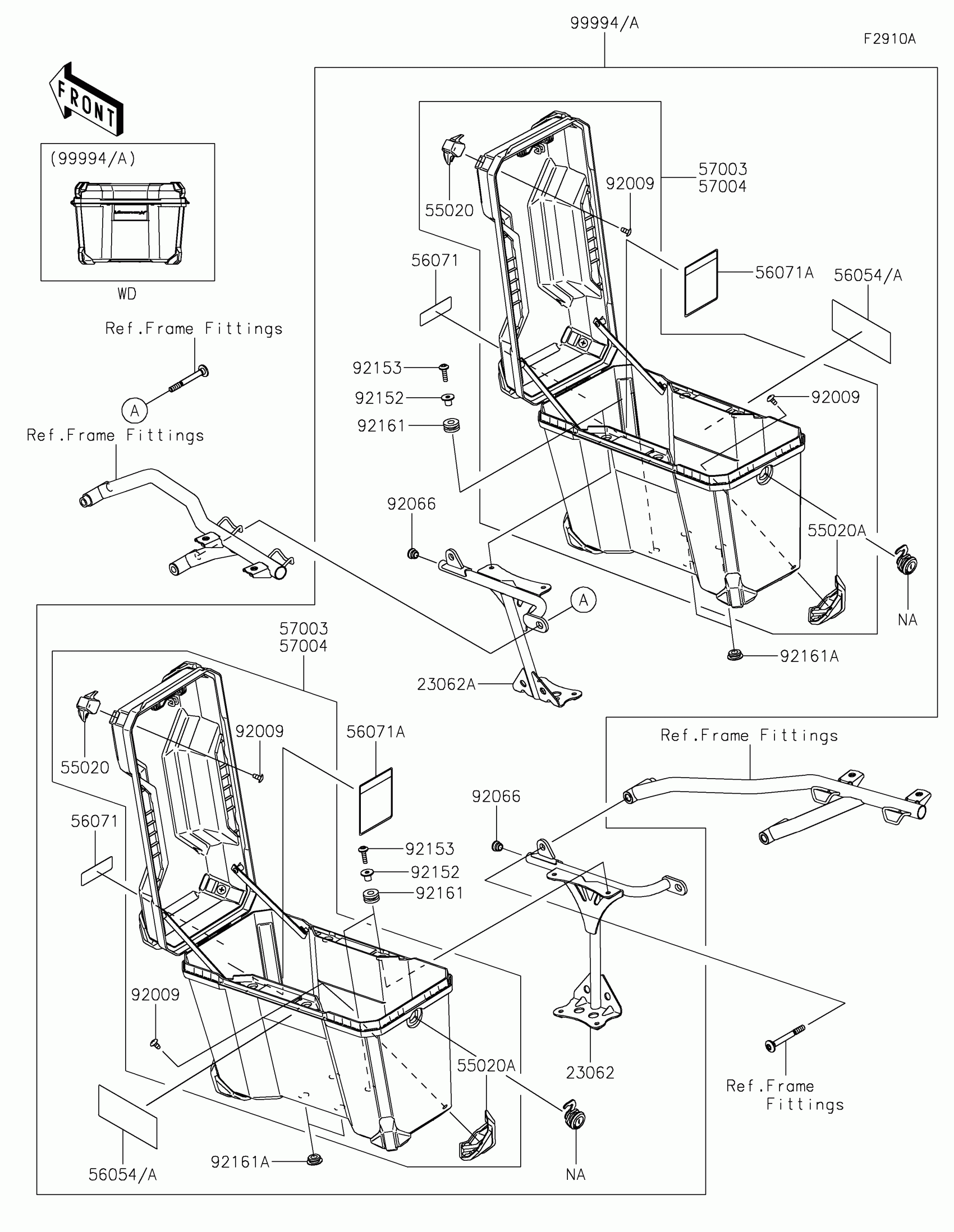

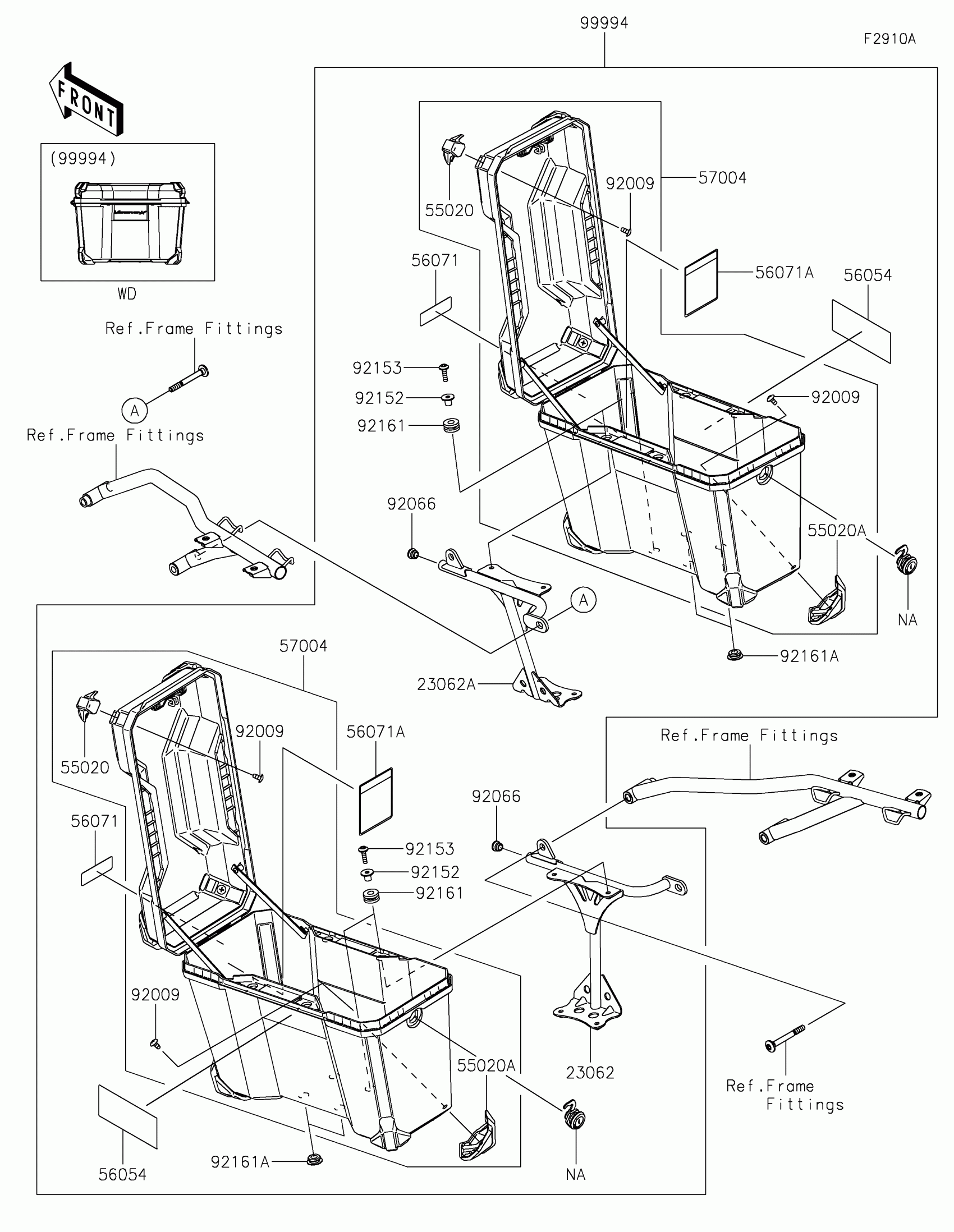

2020 Kawasaki Versys-X 300 ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23062

BRACKET-COMP,LH

23062-0965

1
Out of stock

23062A

BRACKET-COMP,RH

23062-0966

1
Out of stock

55020

GUARD,UPP

55020-2174

1
Out of stock

55020A

GUARD,LWR

55020-2175

1
Out of stock

56054A

MARK,BAG,VERSYS-X

56054-2335

1
Out of stock

56071

LABEL-WARNING,PICTOGRAM

56071-0457

1
Out of stock

56071A

LABEL-WARNING,PANNIER LOAD ETC

56071-0724

1
Out of stock

57004

BAG-ASSY,PANNIER

57004-0002

1
Out of stock

92009

SCREW,6X12

92009-1480

1
Out of stock

92066

PLUG

92066-1184

1
Out of stock

92152

COLLAR,6.5X10X13.1

92152-0332

1
Out of stock

92153

BOLT,SOCKET,6X23

92153-1267

1
Out of stock

92161

DAMPER,10X24X12

92161-0927

1
Out of stock

92161A

1

$3.15

In stock

99994A

KIT-ACCESSORY,PANNIER

99994-1271

1
Out of stock
