2020 Kawasaki Versys-X 300 ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2020 Kawasaki Versys-X 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

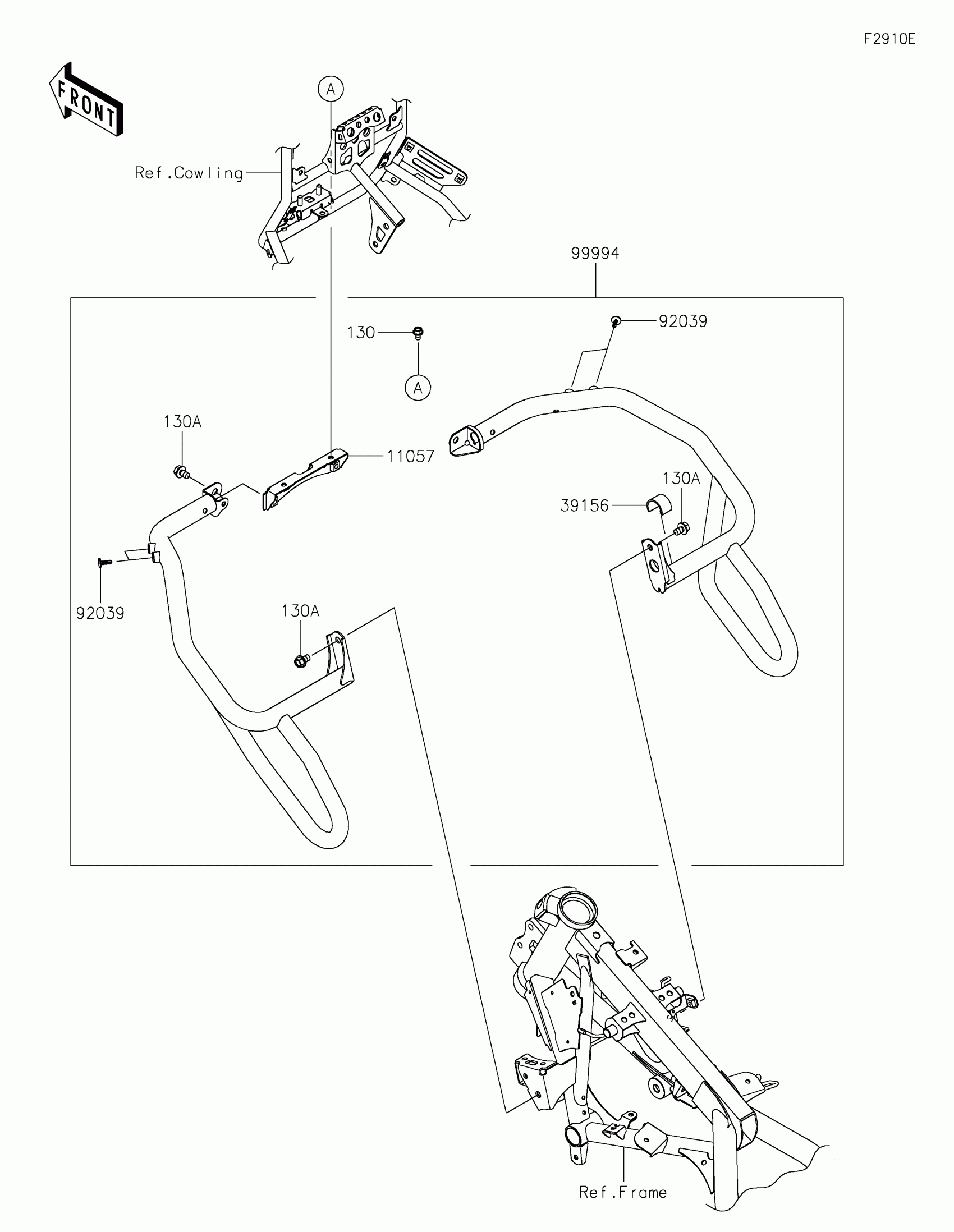

2020 Kawasaki Versys-X 300 ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-0597

1
Out of stock

130

BOLT-FLANGED,6X10

130BB0610

1
Out of stock

130A

BOLT-FLANGED,8X12

130BB0812

1
Out of stock

39156

PAD,50X18X2

39156-1909

1
Out of stock

92039

RIVET

92039-3787

1
Out of stock

99994

KIT-ACCESSORY,ENGINE GUARD

99994-0998

1
Out of stock
