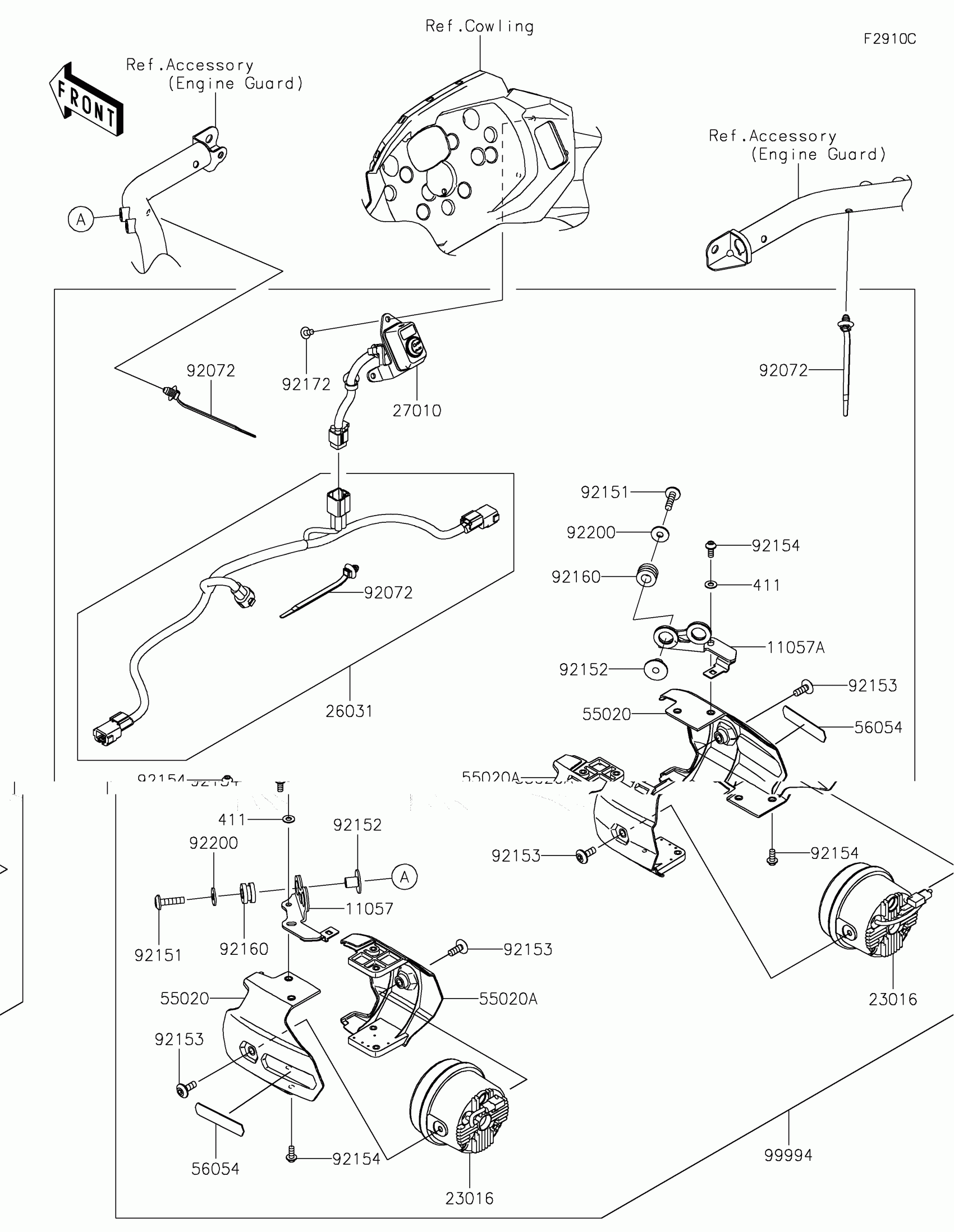

Kawasaki Versys-X 300 ABS Accessory(Fog Lamp) Diagram

Description

Price

11057

BRACKET,SUBLAMP,LH

11057-0624

$11.02

11057A

BRACKET,SUBLAMP,RH

11057-0625

$11.02

23016

LAMP-ASSY,LED,FOG,PIAA

23016-0599

$393.88

26031

HARNESS,FOG LAMP

26031-2337

$6.11

27010

SWITCH,FOG LAMP

27010-0850

$94.70

411

WASHER-PLAIN,5MM

411AB0500

$0.84

55020

GUARD,OUTER

55020-1825

$14.76

55020A

GUARD,INNER

55020-1826

$5.85

56054

MARK,FOG LAMP,KAWASAKI

56054-1695

$12.56

92072

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92151

BOLT,SOCKET,6X25

92151-1611

$2.34

92152

COLLAR,6.5X10X13.6

92152-2204

$2.95

92153

BOLT,SOCKET,6X16

92153-1526

$1.78

92154

BOLT,SOCKET,5X12

92154-0917

$4.72

92160

DAMPER,10X20X12

92160-1167

$4.69

92172

SCREW,5X10

92172-0864

$1.34

92200

WASHER,6.5X18X1.6

92200-0766

$1.63

99994

KIT-ACCESSORY,FOG LAMP

99994-0996

$481.52
