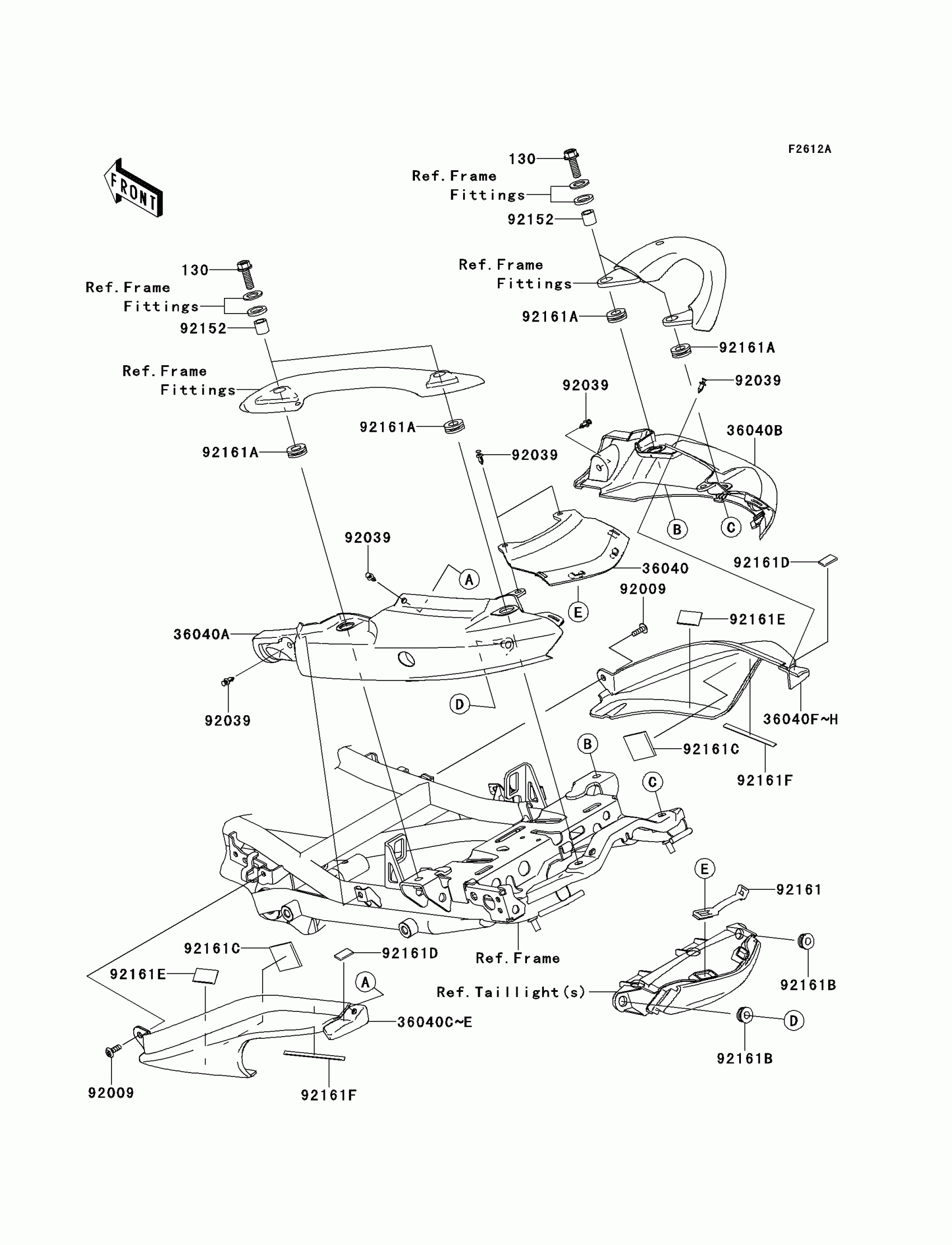

Kawasaki VERSYS® (European) Seat Cover(A9F) Diagram

Description

Price

130

BOLT-FLANGED,8X25

130CB0825

$2.93

36040

COVER-TAIL,CNT,F.BLACK

36040-0052-6Z

$35.58

36040A

COVER-TAIL,RR,LH,F.BLACK

36040-0069-6Z

$52.34

36040B

COVER-TAIL,RR,RH,F.BLACK

36040-0070-6Z

$52.34

36040C

COVER-TAIL,FR,LH,C.L.GREEN

36040-0090-17P

$84.20

36040F

COVER-TAIL,FR,RH,C.L.GREEN

36040-0091-17P

$84.20

92009

SCREW,5X16

92009-1909

$2.03

92039

RIVET

92039-0023

$2.97

92152

COLLAR,9.2X13.8X12.5

92152-0546

$9.09

92161

DAMPER,TAIL LAMP

92161-0191

$4.60

92161A

DAMPER

92161-0279

$3.90

92161B

DAMPER

92161-0317

$3.39

92161C

DAMPER

92161-0443

$4.33

92161D

DAMPER

92161-0726

$2.55

92161E

DAMPER

92161-0727

$2.82

92161F

DAMPER

92161-0777

$4.71

36040D

COVER-TAIL,FR,LH,M.M.GRAY

36040-0090-25X

$84.20

36040E

COVER-TAIL,FR,LH,C.P.BLUE

36040-0090-723

$84.20

36040G

COVER-TAIL,FR,RH,M.M.GRAY

36040-0091-25X

$84.20

36040H

COVER-TAIL,FR,RH,C.P.BLUE

36040-0091-723

$84.20
