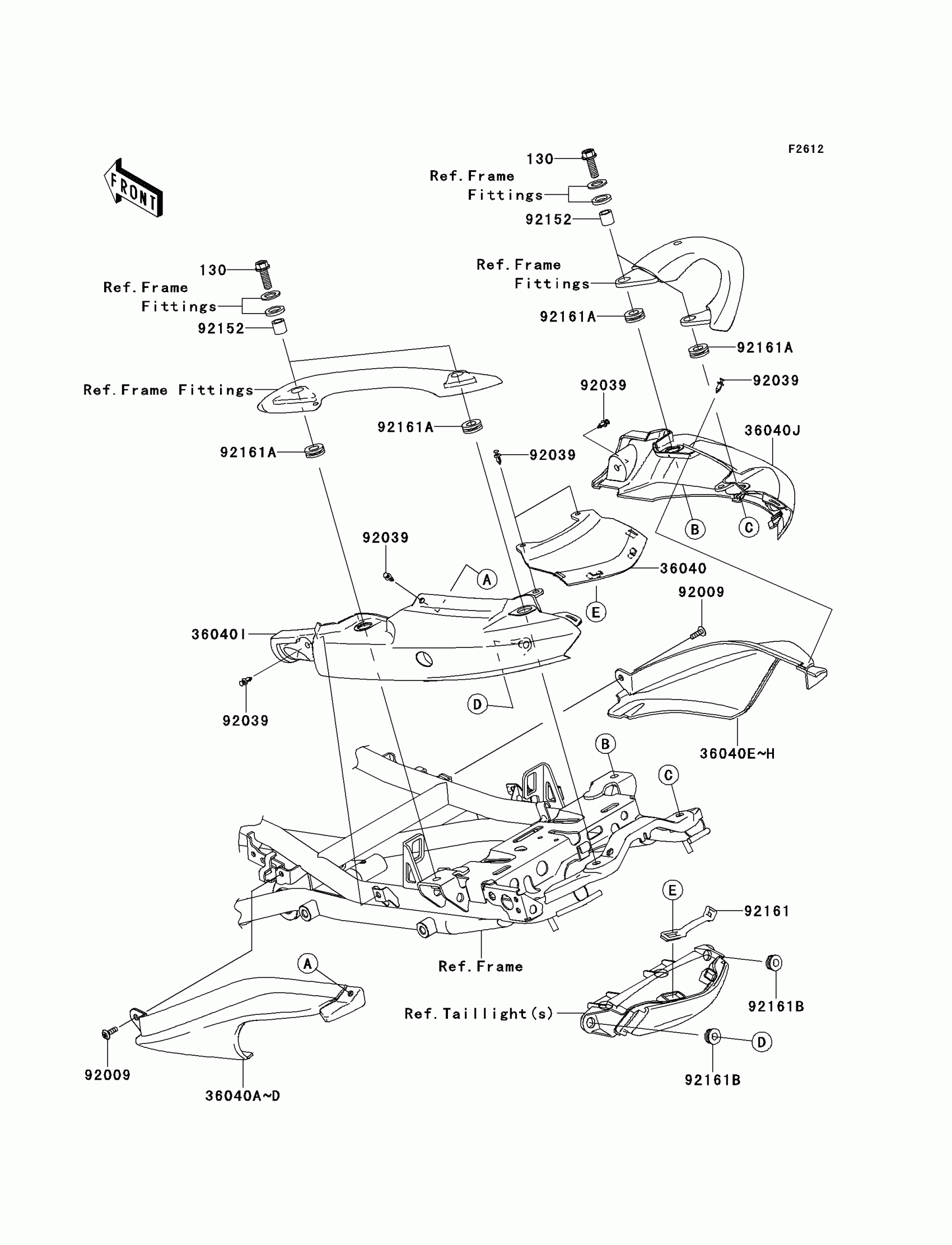

Kawasaki VERSYS® (European) Seat Cover(A7F/A8F) Diagram

Description

Price

130

BOLT-FLANGED,8X25

130CB0825

$2.93

36040

COVER-TAIL,CNT,F.BLACK

36040-0052-6Z

$35.58

36040C

COVER-TAIL,FR,LH,P.RED

36040-0064-234

Unavailable

36040G

COVER-TAIL,FR,RH,P.RED

36040-0065-234

$84.07

36040I

COVER-TAIL,RR,LH,F.BLACK

36040-0069-6Z

$52.34

36040J

COVER-TAIL,RR,RH,F.BLACK

36040-0070-6Z

$52.34

92009

SCREW,5X16

92009-1909

$2.03

92039

RIVET

92039-0023

$2.97

92152

COLLAR,9.2X13.8X12.5

92152-0546

$9.09

92161

DAMPER,TAIL LAMP

92161-0191

$4.60

92161A

DAMPER

92161-0279

$3.90

92161B

DAMPER

92161-0317

$3.39

36040D

COVER-TAIL,FR,LH,C.P.BLUE

36040-0064-723

$84.20

36040H

COVER-TAIL,FR,RH,C.P.BLUE

36040-0065-723

$84.07
