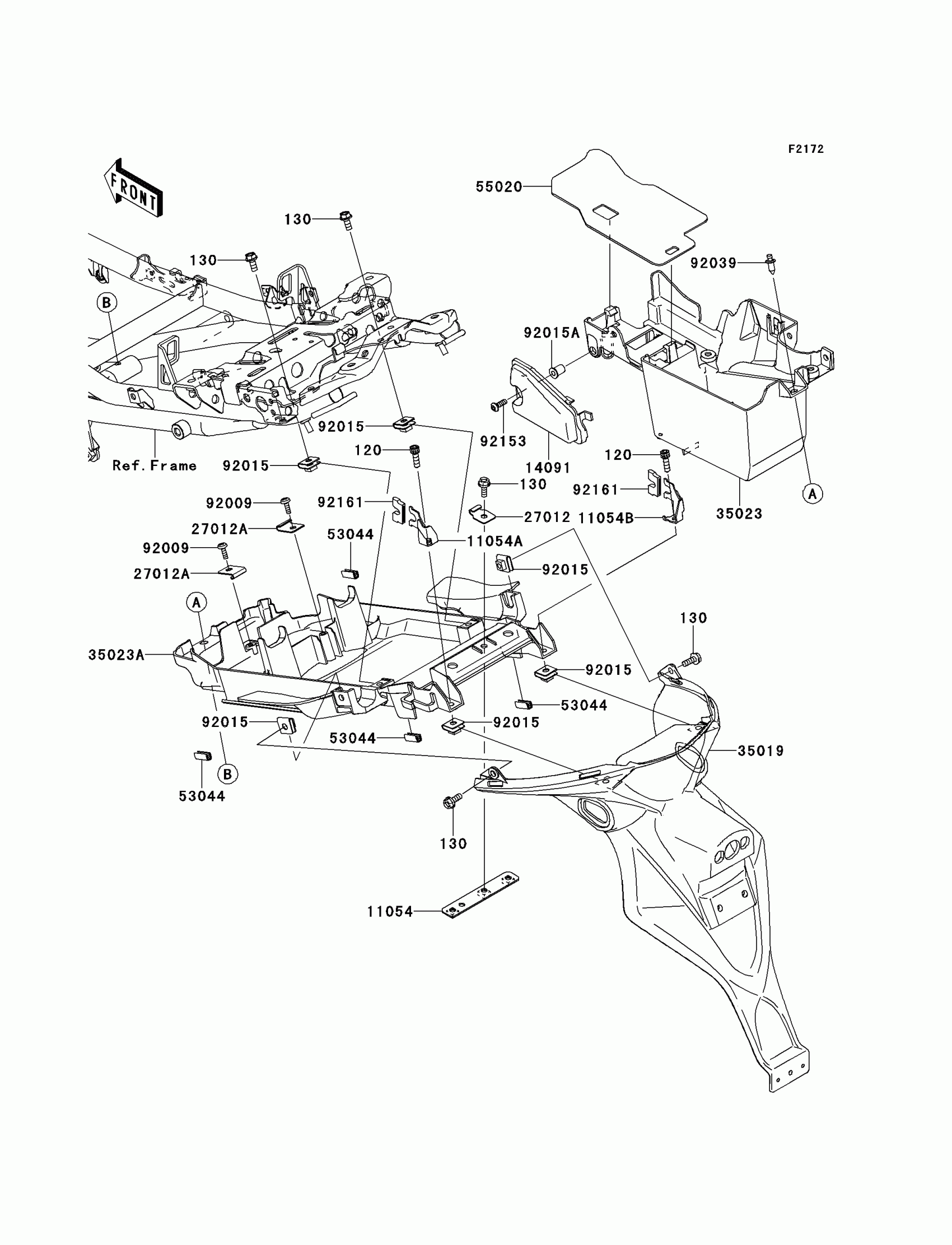

Kawasaki VERSYS® (European) Rear Fender(s) Diagram

Description

Price

120

BOLT-SOCKET,6X20

120CB0620

$0.95

130

BOLT-FLANGED,6X16

130BB0616

$1.49

11054

BRACKET,TAIL LAMP

11054-0466

$8.44

11054A

BRACKET,FLAP,RR,LH

11054-1524

$8.44

11054B

BRACKET,FLAP,RR,RH

11054-1525

$8.44

14091

COVER,SWITCH MAINTENANCE

14091-0715

$8.37

27012

HOOK

27012-0098

$5.51

27012A

HOOK,BATTERY CASE

27012-1316

$10.58

35019

FLAP,RR FENDER

35019-0048

$72.45

35023

FENDER-REAR,FR

35023-0077

$33.43

35023A

FENDER-REAR,RR

35023-0105

$61.20

53044

TRIM,L=20

53044-0021

$2.71

55020

GUARD,HEAT

55020-0220

$20.46

92009

SCREW,6X14

92009-3845

$1.00

92015

NUT,6MM

92015-1094

$6.55

92015A

NUT,WELL,5MM

92015-1757

$5.58

92039

RIVET

92039-1283

$1.98

92153

BOLT,SOCKET,5X16

92153-1244

$1.73

92161

DAMPER

92161-0494

$7.69
