2009 Kawasaki Versys® (European) Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2009 Kawasaki Versys® (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

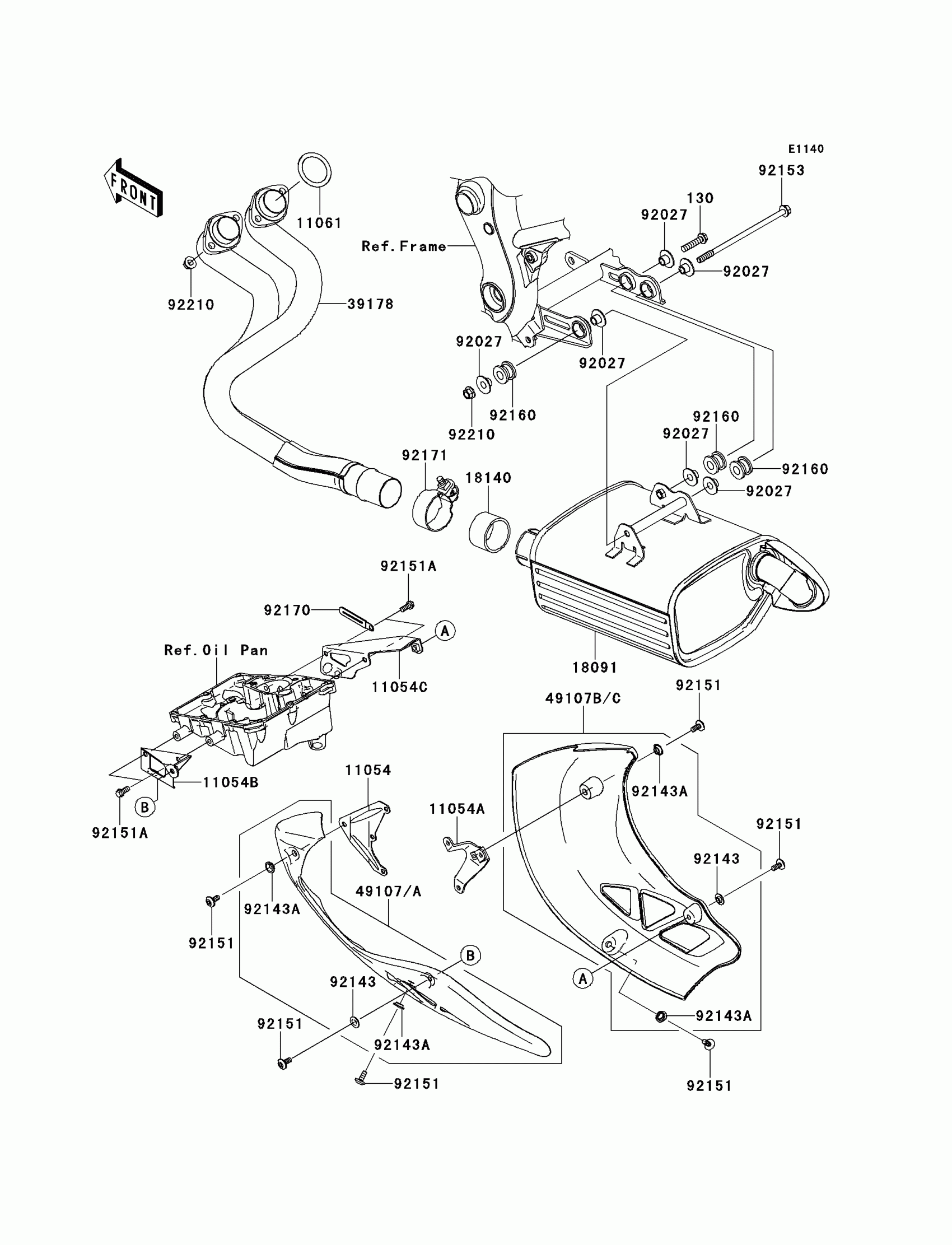

2009 Kawasaki Versys® (European) Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X35

130CD0835

1
Out of stock

11054

BRACKET,EX.COVER,UPP,LH

11054-0420

1
Out of stock

11054A

BRACKET,EX.COVER,UPP,RH

11054-0421

1
Out of stock

11054B

BRACKET,EX.COVER,LWR,LH

11054-0485

1
Out of stock

11054C

BRACKET,EX.COVER,LWR,RH

11054-0486

1
Out of stock

11061

GASKET,EXHAUST PIPE

11061-0278

1
Out of stock

18091

BODY-COMP-MUFFLER,US&EU

18091-0424

1
Out of stock

18140

GASKET-MUFFLER

18140-0002

1
Out of stock

39178

MANIFOLD-COMP-EXHAUST

39178-0062

1
Out of stock

49107

COVER-EXHAUST PIPE,LH,P.SILVER

49107-0081-458

1
Out of stock

49107A

COVER-EXHAUST PIPE,LH,F.BLACK

49107-0081-6Z

1
Out of stock

49107B

COVER-EXHAUST PIPE,RH,P.SILVER

49107-0082-458

1
Out of stock

49107C

COVER-EXHAUST PIPE,RH,F.BLACK

49107-0082-6Z

1
Out of stock

92027

COLLAR,FLANGED,8.8X10.6

92027-1653

1
Out of stock

92143

COLLAR

92143-1087

1
Out of stock

92143A

COLLAR

92143-1196

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92151A

BOLT,FLANGED,6X14

92151-1755

1
Out of stock

92153

BOLT,FLANGED,8X165

92153-1357

1
Out of stock

92160

DAMPER,MUFFLER MOUNT

92160-1116

1
Out of stock

92170

CLAMP

92170-1514

1
Out of stock

92171

CLAMP

92171-1568

1
Out of stock

92210

NUT,8MM

92210-1114

1
Out of stock
