2009 Kawasaki Versys® (European) Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2009 Kawasaki Versys® (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

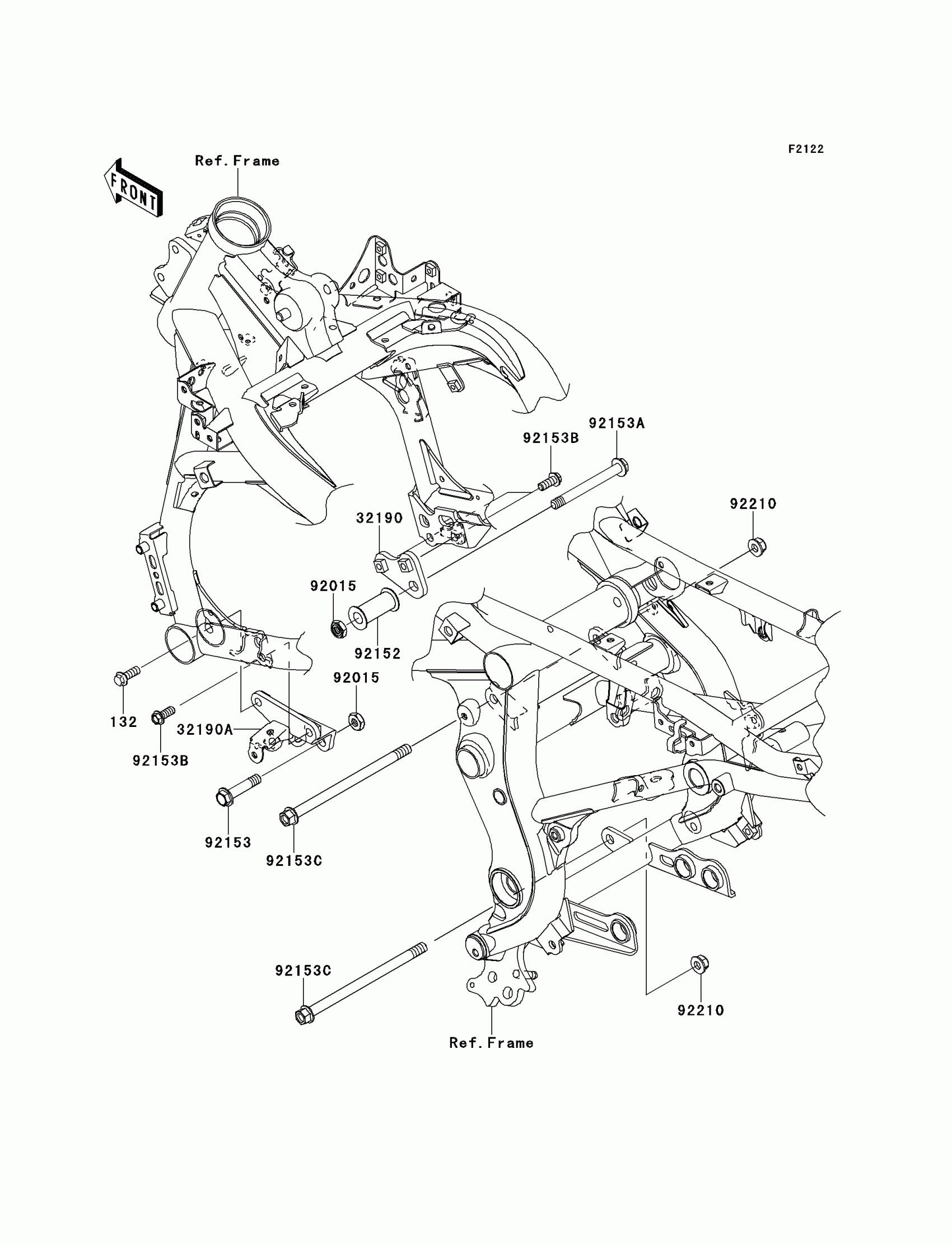

2009 Kawasaki Versys® (European) Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.73

In stock

32190

BRACKET-ENGINE,RH

32190-0189

1

$13.54

In stock

32190A

BRACKET-ENGINE,LH

32190-0252

1

$58.47

In stock

92015

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92152

COLLAR,ENGINE MOUNT

92152-0311

1
Out of stock

92153

BOLT,FLANGED,10X47

92153-0823

1
Out of stock

92153A

BOLT,FLANGED,10X95

92153-0976

1
Out of stock

92153B

BOLT,FLANGED,8X20

92153-0995

1
Out of stock

92153C

BOLT,FLANGED,10X170

92153-1428

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1081

1
Out of stock
