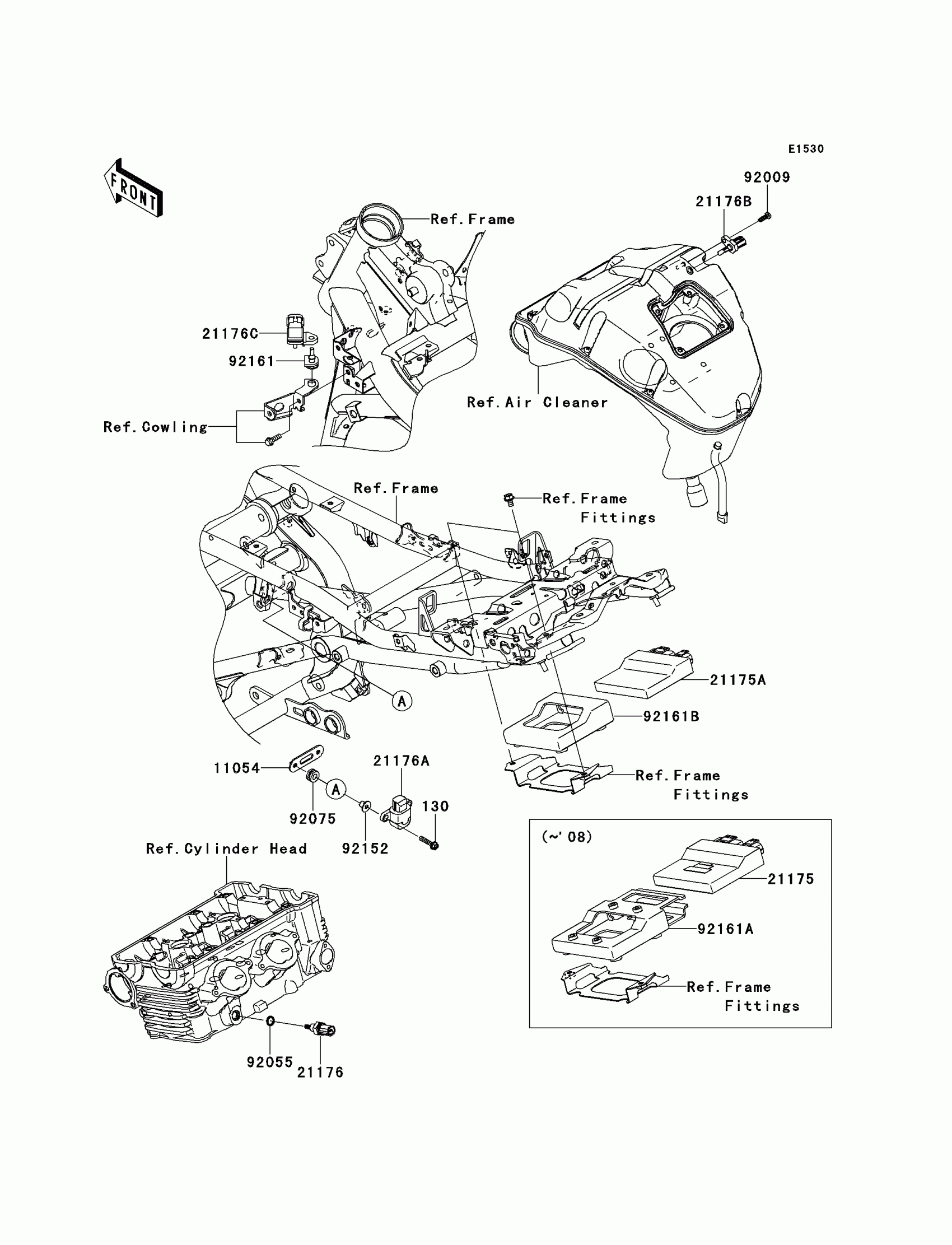

Kawasaki VERSYS® (European) Fuel Injection Diagram

Description

Price

130

BOLT-FLANGED,5X25

130BB0525

$3.86

11054

BRACKET

11054-0133

$8.12

21175A

CONTROL UNIT-ELECTRONIC

21175-0214

$768.74

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$86.97

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

21176C

SENSOR,PRESSURE

21176-0058

$141.24

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92055

RING-O,9.5X1.9

92055-0016

$8.89

92075

DAMPER

92075-1912

$5.77

92152

COLLAR

92152-0134

$7.65

92161

DAMPER

92161-0041

$5.00

92161B

DAMPER,ECU

92161-0630

$27.72
