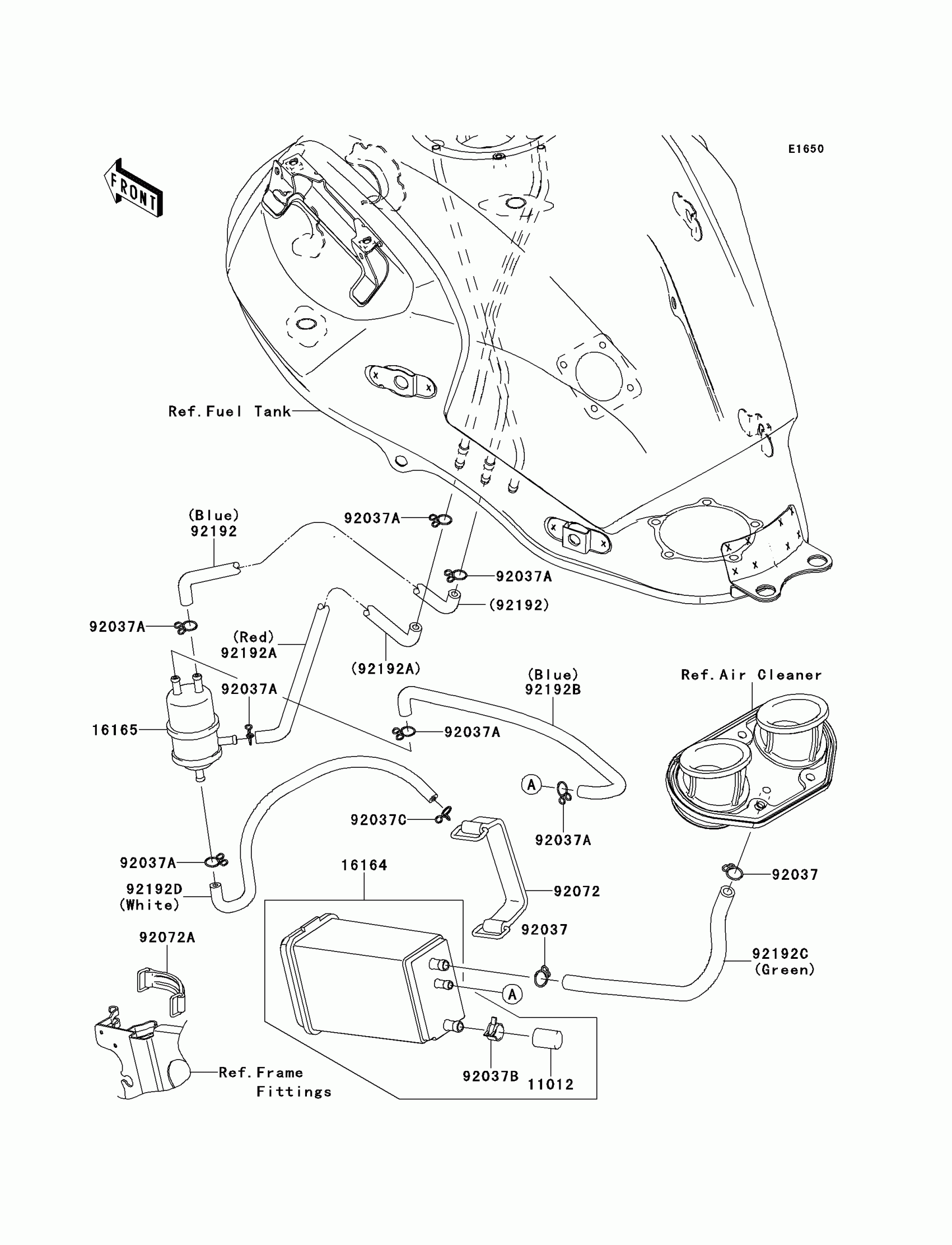

Kawasaki VERSYS® (European) Fuel Evaporative System(A9F)(CA) Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.51

16164

CANISTER

16164-1054

$130.07

16165

SEPARATOR

16165-1001

$90.01

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP,CANISTER

92037-1512

$6.57

92037C

CLAMP

92037-1712

$5.00

92072

BAND

92072-1384

$13.75

92072A

BAND,L=50

92072-1419

$16.08

92192

TUBE,SEPARATOR-TANK,BLUE

92192-0586

$50.11

92192A

TUBE,TANK-SEPARATOR,RED

92192-0717

$57.30

92192B

TUBE,CANISTER-SEPARATOR,BLUE

92192-0719

$90.33

92192C

TUBE,A/C-CANISTER,GREEN

92192-0720

$50.23

92192D

TUBE,SEPARATOR-THROBO,WHITE

92192-0721

$9.74
