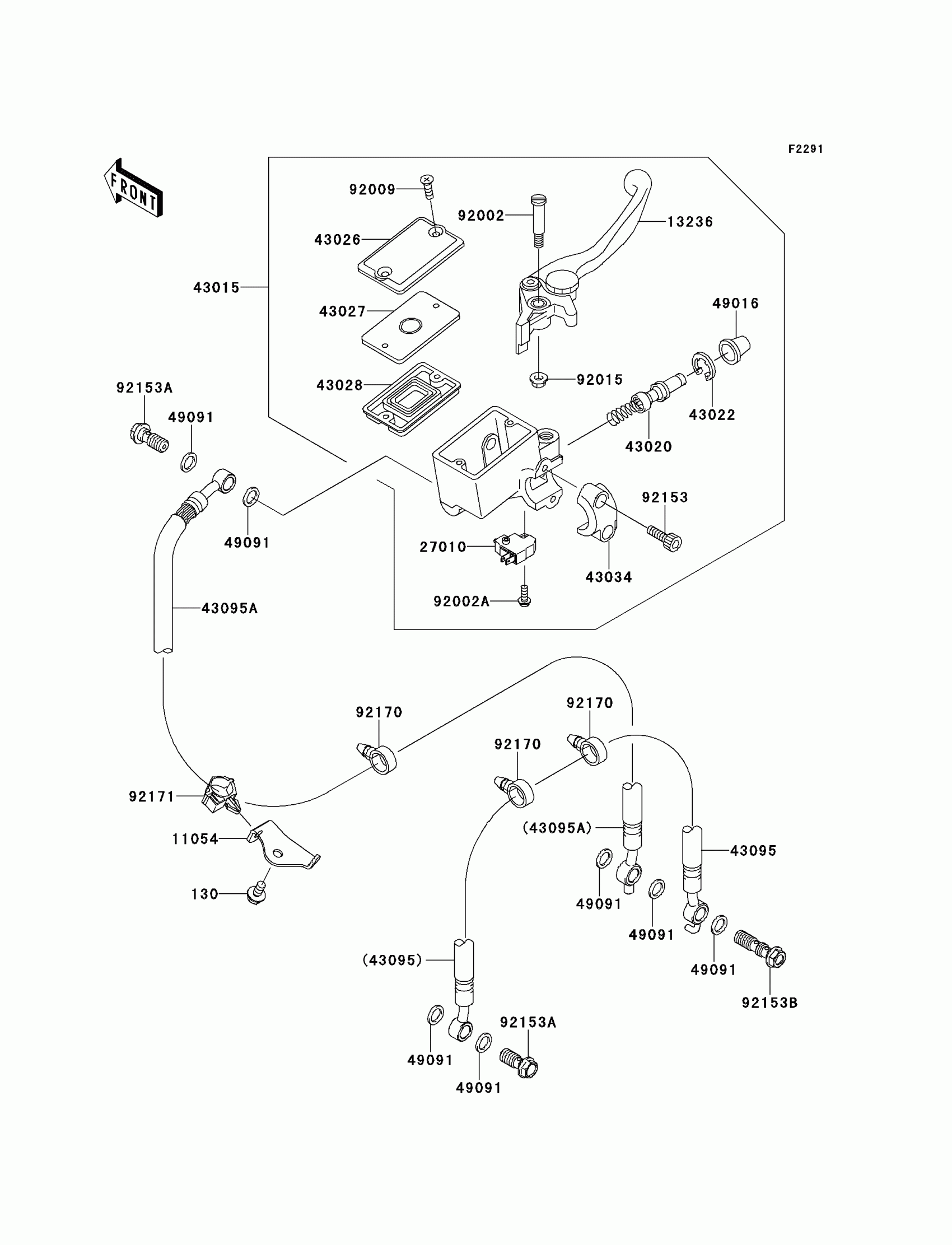

Kawasaki VERSYS® (European) Front Master Cylinder(A7F/A8F) Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BB0614

$1.77

11054

BRACKET,BRAKE HOSE

11054-1654

$5.92

13236

LEVER-COMP,FRONT BRAKE

13236-1337

$65.56

27010

SWITCH,BRAKE

27010-0025

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-0011

Unavailable

43020

PISTON-COMP-BRAKE,FR

43020-1054

$58.51

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1076

$43.44

43027

PLATE-DIAPHRAGM

43027-1055

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$18.50

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$36.55

43095

HOSE-BRAKE,FR

43095-0211

$71.00

43095A

HOSE-BRAKE,FR

43095-0328

$93.54

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92002

BOLT,LEVER SET,BLACK

92002-1322

$8.91

92002A

BOLT,SCREW,4X12

92002-1323

$2.99

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92153

BOLT,SOCKET,6X20

92153-0417

$7.54

92153A

BOLT,OIL,L=23

92153-0627

$4.15

92153B

BOLT,OIL,L=37

92153-0628

$9.00

92170

CLAMP

92170-1067

$5.69

92171

CLAMP,BRAKE HOSE

92171-0316

$2.93
