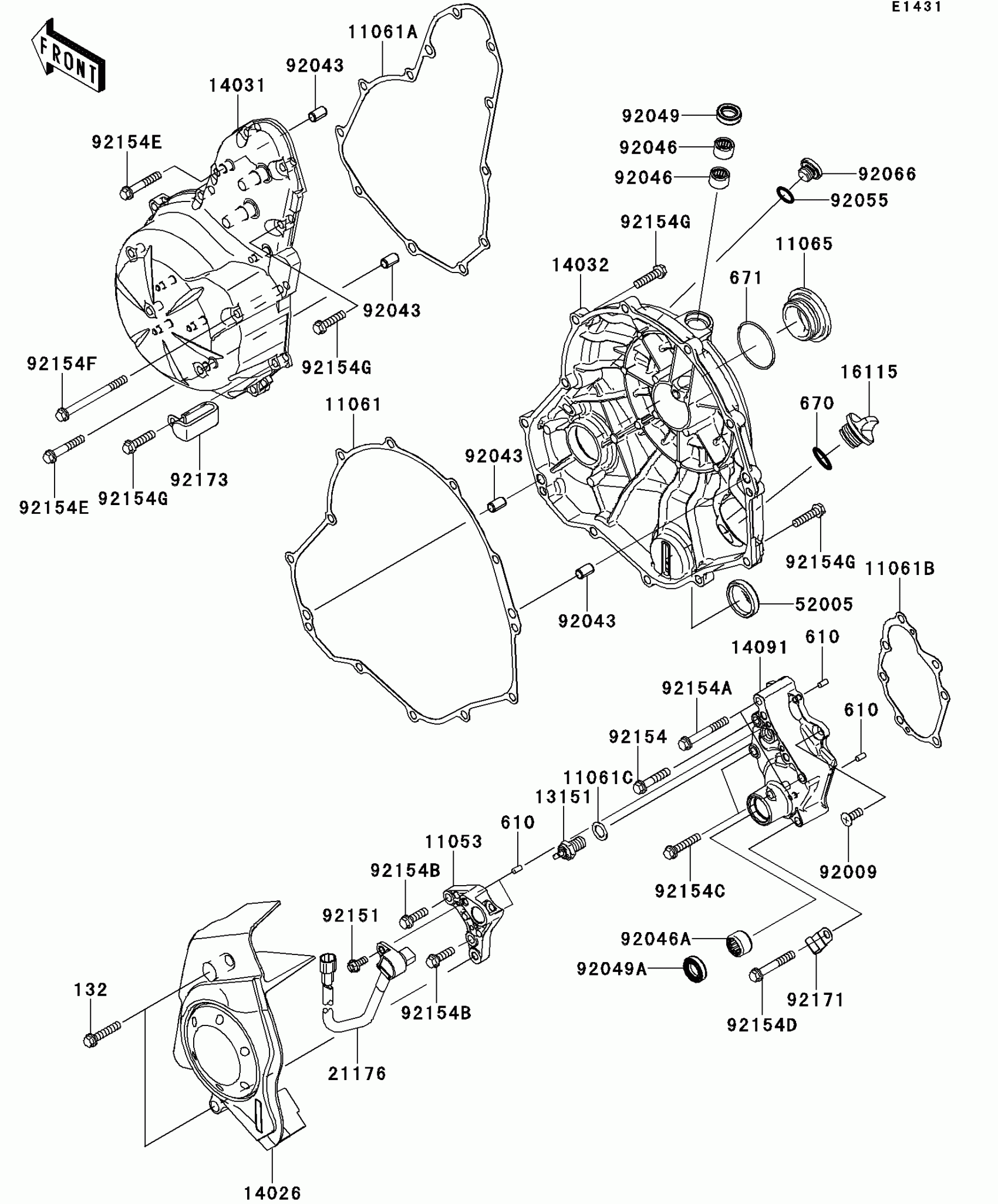

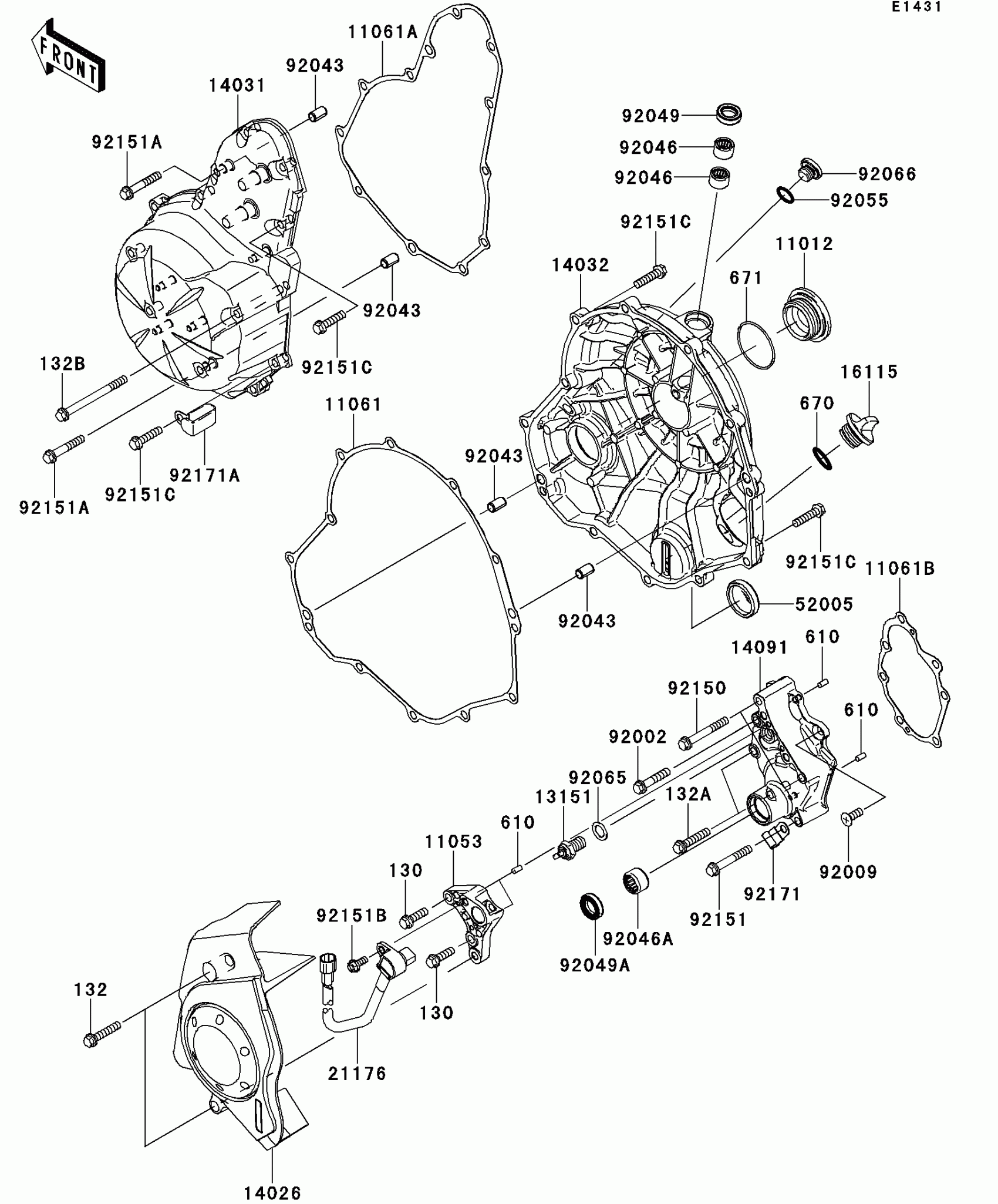

Kawasaki VERSYS® Engine Cover(s) Diagram
#
11053
BRACKET
11053-1739
$28.52
11061
GASKET,CLUTCH COVER
11061-0164
$21.49
11061A
GASKET,GENERATOR COVER
11061-0165
$12.86
11061B
GASKET,TRANSMISSION COVER
11061-0166
$6.68
11061C
GASKET,10.5X16X1
11061-0373
$3.67
11065
CAP
11065-0281
$36.52
13151
SWITCH-COMP,NEUTRAL
13151-1102
Unavailable
14026
COVER-CHAIN
14026-0092
$73.03
14031
COVER-GENERATOR
14031-0096
$119.34
14032
COVER-CLUTCH
14032-0115
$189.25
14091
COVER,TRANSMISSION
14091-1673
$78.10
16115
CAP-OIL FILLER
16115-1053
$12.20
21176
SENSOR,SPEED
21176-0065
$131.52
52005
GAUGE,OIL LEVEL
52005-0071
$25.24
92009
SCREW,6X16
92009-1360
$4.31
92043
PIN,6.2X8X14
92043-1263
$0.43
92046
BEARING-NEEDLE,HK1210FM
92046-0034
$15.63
92046A
BEARING-NEEDLE,HK1312
92046-1148
$18.74
92049
SEAL-OIL,CLUTCH RELEASE
92049-1475
$4.18
92049A
SEAL-OIL,TC13225.5
92049-1519
$13.55
92055
RING-O,13.0X1.9
92055-1011
$7.62
92066
PLUG,12X9.1
92066-0131
$14.94
92151
BOLT,FLANGED,5X12
92151-1305
$1.59
92154
BOLT,FLANGED,6X30
92154-0727
$3.02
92154A
BOLT,FLANGED,6X45
92154-0728
$3.39
92154B
BOLT,FLANGED,6X20
92154-0776
$2.32
92154C
BOLT,FLANGED,6X30
92154-0778
Unavailable
92154D
BOLT,FLANGED,6X40
92154-0782
Unavailable
92154E
BOLT,FLANGED,6X35
92154-0807
$3.02
92154F
BOLT,FLANGED,6X70
92154-0808
Unavailable
92154G
BOLT,FLANGED,6X25
92154-0819
$2.32
92171
CLAMP
92171-0813
$8.68
92173
CLAMP
92173-0725
$4.13
132
BOLT-FLANGED-SMALL,6X30
132BB0630
$4.12
610
ROLLER,4X8
610A0408
$4.31
670
O RING,20MM
670B2020
$1.22
671
O RING,40MM
671B2540
$6.22
