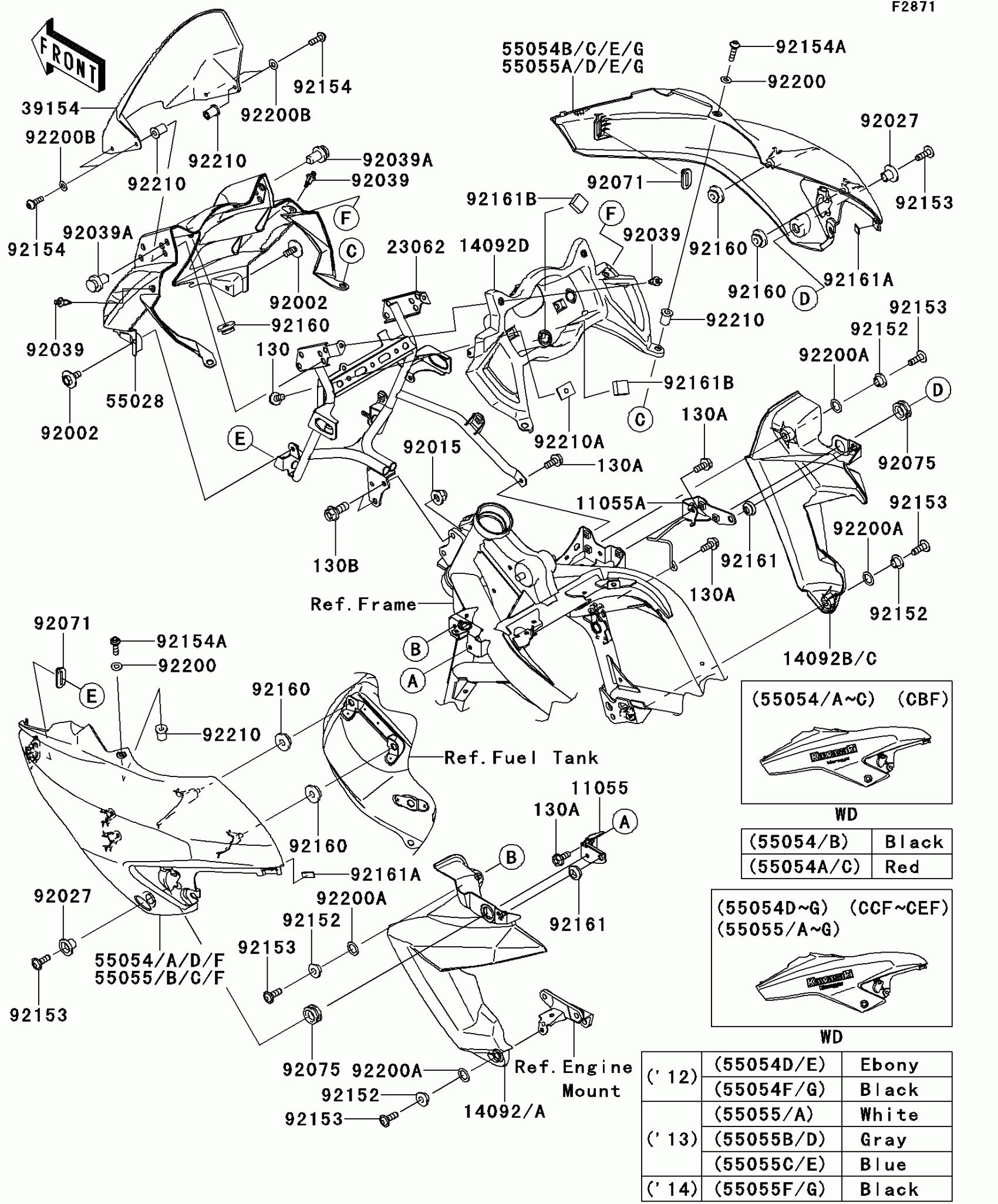

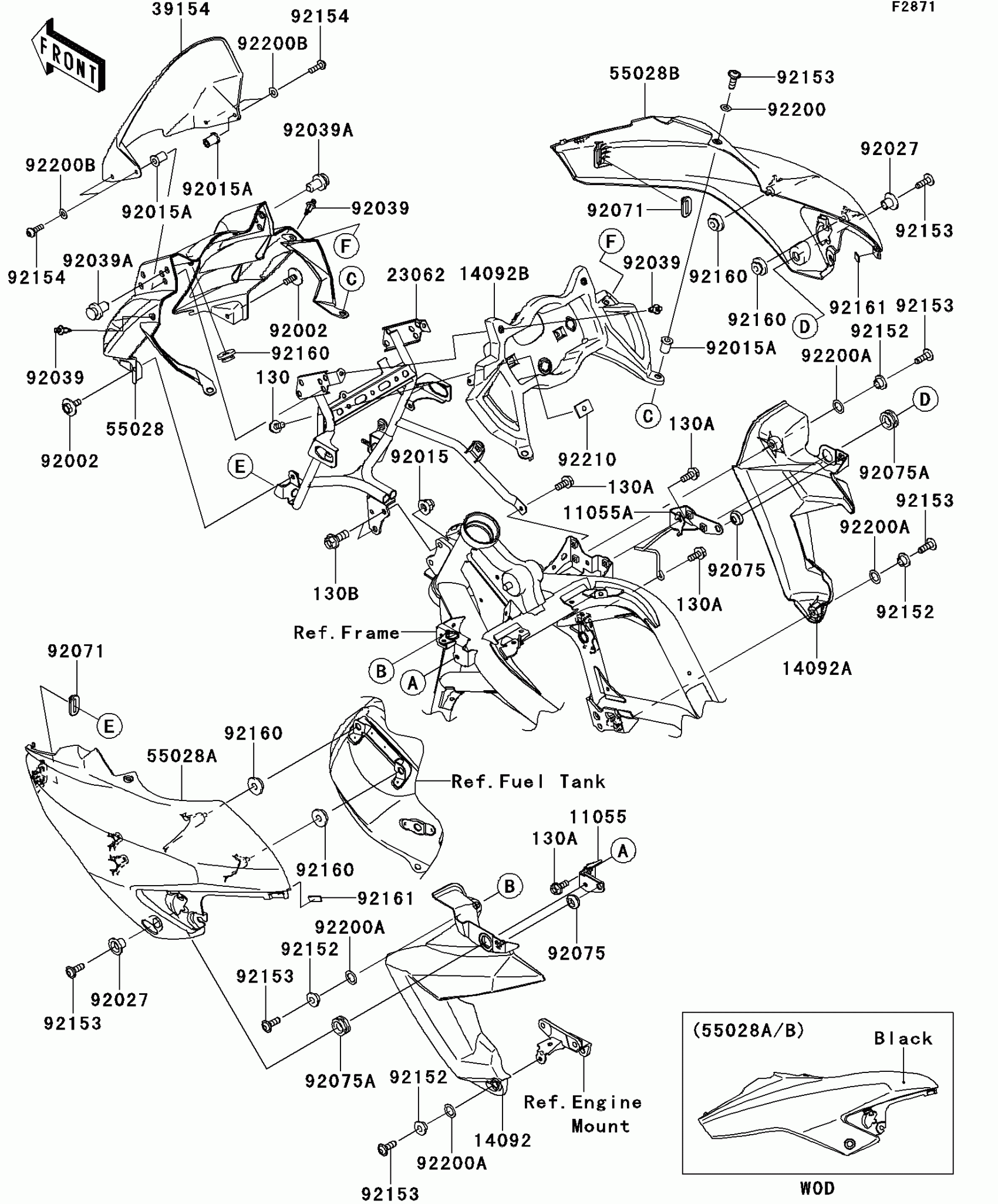

Kawasaki VERSYS® Cowling Diagram
#
Description
Price
11055
BRACKET,COWLING,LH
11055-1887
$12.89
11055A
BRACKET,COWLING,RH
11055-1888
$33.25
14092
COVER,RADIATOR,LH,F.S.BLACK
14092-0074-18T
$120.98
14092B
COVER,RADIATOR,RH,F.S.BLACK
14092-0075-18T
$120.98
14092D
COVER,METER
14092-0264
$126.84
23062
BRACKET-COMP,COWLING,CNT
23062-0112
$190.52
39154
WINDSHIELD
39154-0053
$176.81
55028
COWLING,UPP
55028-0309
$156.93
55055F
COWLING,SIDE,LH,M.S.BLACK
55055-5272-660
$336.40
55055G
COWLING,SIDE,RH,M.S.BLACK
55055-5273-660
$334.20
92002
BOLT,6X16
92002-1188
$4.10
92015
NUT,CAP,8MM
92015-1151
$5.00
92027
COLLAR
92027-1045
$5.52
92039
RIVET
92039-0023
$2.97
92039A
RIVET
92039-0098
$5.54
92071
GROMMET
92071-0013
$5.54
92075
DAMPER
92075-1634
$4.69
92152
COLLAR
92152-1359
$7.65
92153
BOLT,6X18
92153-0478
$2.55
92154
BOLT,SOCKET,5X16
92154-0209
$2.75
92154A
BOLT,SOCKET,5X20
92154-0210
$2.12
92160
DAMPER
92160-1613
$3.74
92161
DAMPER
92161-0631
$7.37
92161A
DAMPER
92161-0726
$2.55
92161B
DAMPER,20X20X10
92161-0835
$3.71
92200
WASHER,NYLONE,5.3X11.5X0.5
92200-0006
$1.86
92200A
WASHER,10.4X15.9X0.5
92200-0157
$2.15
92200B
WASHER,NYLON,5.3X11.5X0.5
92200-1480
$1.59
92210
NUT,WELL,5MM
92210-0498
$7.29
92210A
NUT,PLATE,6MM
92210-1352
$2.41
130
BOLT-FLANGED,6X12
130BA0612
$1.72
130A
BOLT-FLANGED,6X14
130BA0614
$1.20
130B
BOLT-FLANGED,8X20
130BA0820
$4.14
