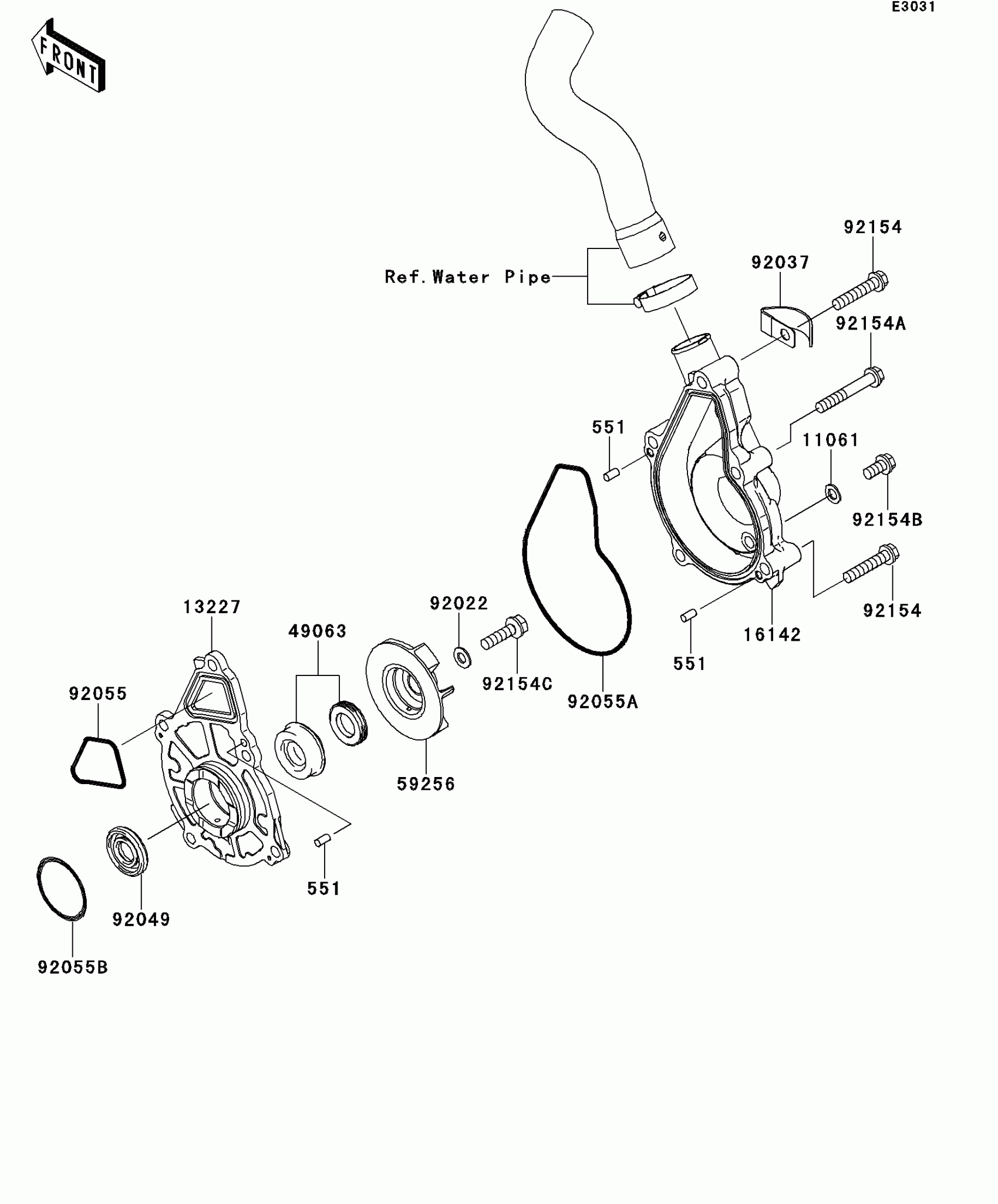

Kawasaki VERSYS® ABS Water Pump Diagram

Description

Price

11061

GASKET

11061-0107

$2.58

13227

HOUSING

13227-0023

$44.33

16142

COVER-PUMP

16142-0058

Unavailable

49063

SEAL-MECHANICAL

49063-1055

$20.06

59256

IMPELLER

59256-0009

$27.10

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92037

CLAMP

92037-1680

$2.61

92049

SEAL-OIL,12X28.55X5

92049-0115

$11.18

92055

RING-O,CASE-HOUSING

92055-0082

$3.90

92055A

RING-O,HOUSING-PUMP COVER

92055-0083

$8.68

92055B

RING-O,33.2MM

92055-1155

$14.47

92154

BOLT,FLANGED,6X30

92154-0778

Unavailable

92154A

BOLT,FLANGED,6X40

92154-0782

Unavailable

92154B

BOLT,FLANGED,6X12

92154-0810

Unavailable

92154C

BOLT,FLANGED,6X22

92154-1069

$3.02

551

PIN-DOWEL,4X8

551A0408

$0.78
