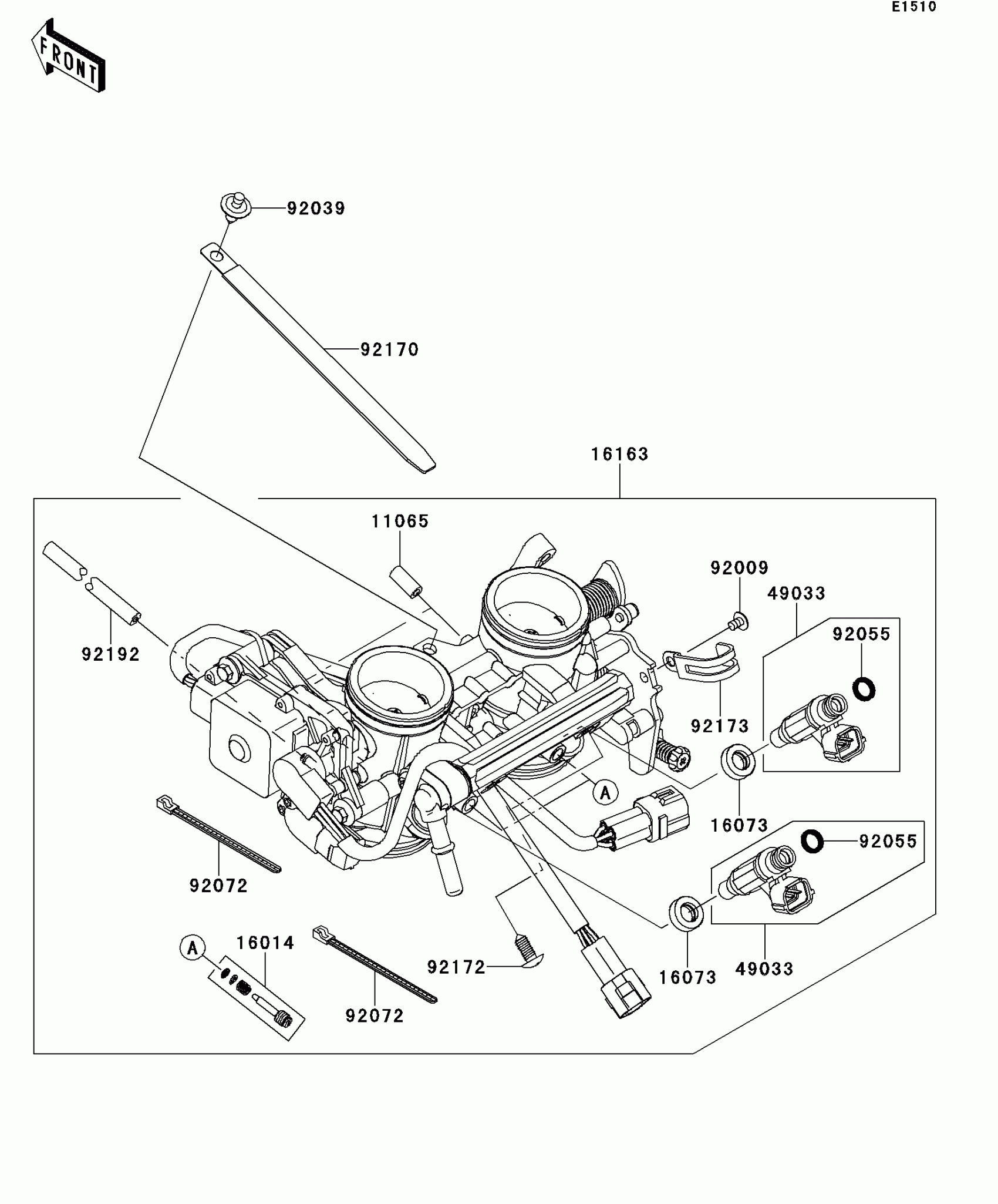

Kawasaki VERSYS® ABS Throttle Diagram

Description

Price

11065

CAP

11065-0018

$4.65

16014

SCREW-PILOT AIR

16014-0002

$22.14

16073

INSULATOR

16073-3707

$4.70

16163

THROTTLE-ASSY,TTK38

16163-0166

$859.13

49033

NOZZLE-INJECTION

49033-0011

$80.38

92009

SCREW,CLAMP

92009-1860

$2.05

92039

RIVET

92039-0068

$2.42

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.64

92072

BAND,SUB-HARNESS

92072-0012

$3.81

92170

CLAMP,L=150

92170-1114

$7.36

92172

SCREW,PIPE INJECTION

92172-0064

$2.29

92173

CLAMP

92173-0288

$5.46

92192

TUBE,RUBBER,3X7X265

92192-1375

$12.19
