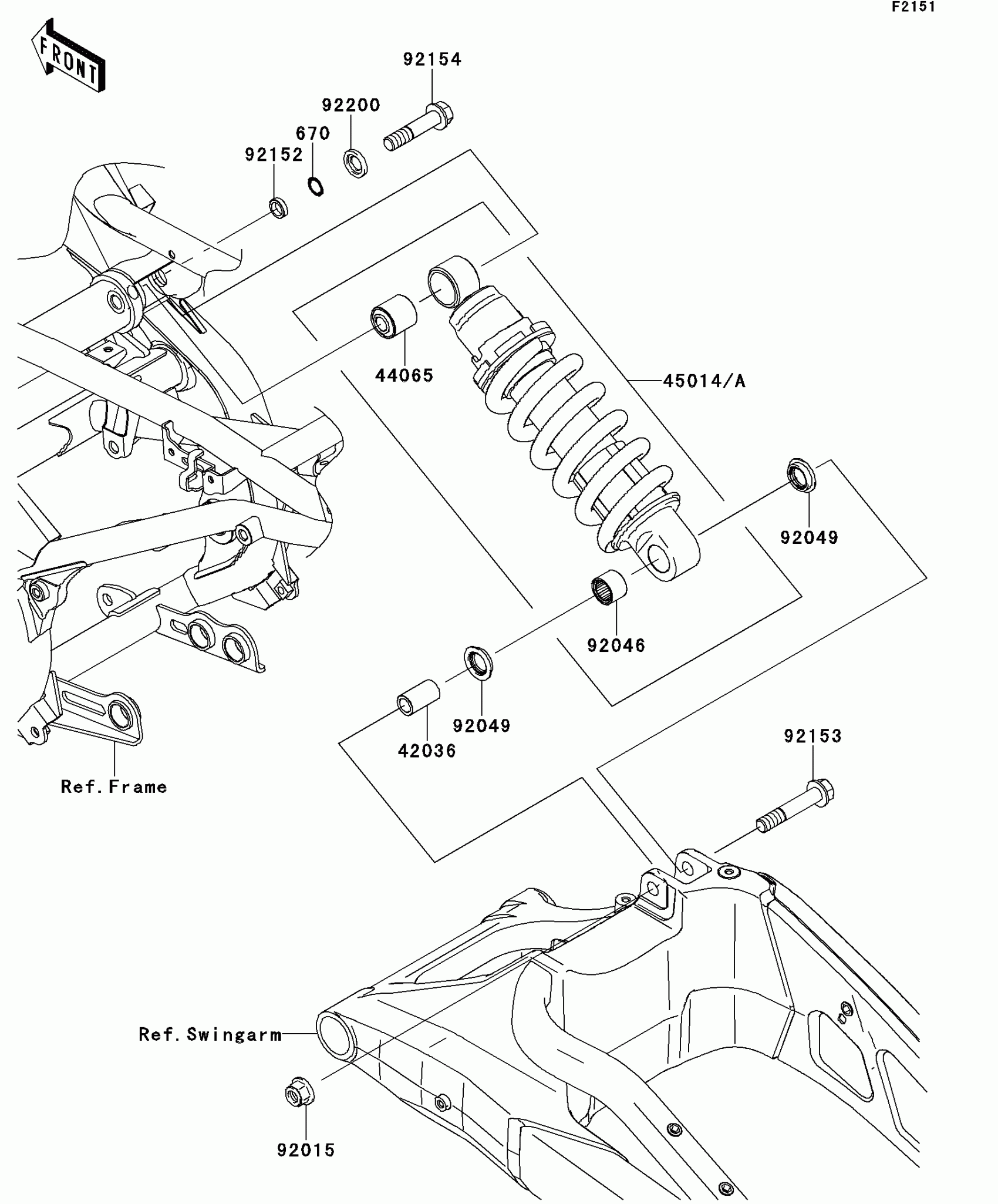

Kawasaki VERSYS® ABS Suspension/Shock Absorber Diagram

Description

Price

42036

SLEEVE,12.1X18X32

42036-0024

$12.95

44065

BUSHING,SHOCKABSORBER

44065-1017

$36.05

45014

SHOCKABSORBER,S.RED

45014-0147-VM

$665.79

45014A

SHOCKABSORBER,P.SILVER

45014-0147-458

$665.00

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92046

BEARING-NEEDLE,SFYZM182417

92046-1272

$12.45

92049

SEAL-OIL

92049-0133

$9.71

92152

COLLAR,12.1X16.8X4.4

92152-0811

$3.97

92153

BOLT,FLANGED,12X65

92153-1767

$9.37

92154

BOLT,FLANGED,12X55

92154-0289

$7.52

92200

WASHER,12.5X24X3.2

92200-0519

$3.27

670

O RING,12MM

670B2012

$2.22
