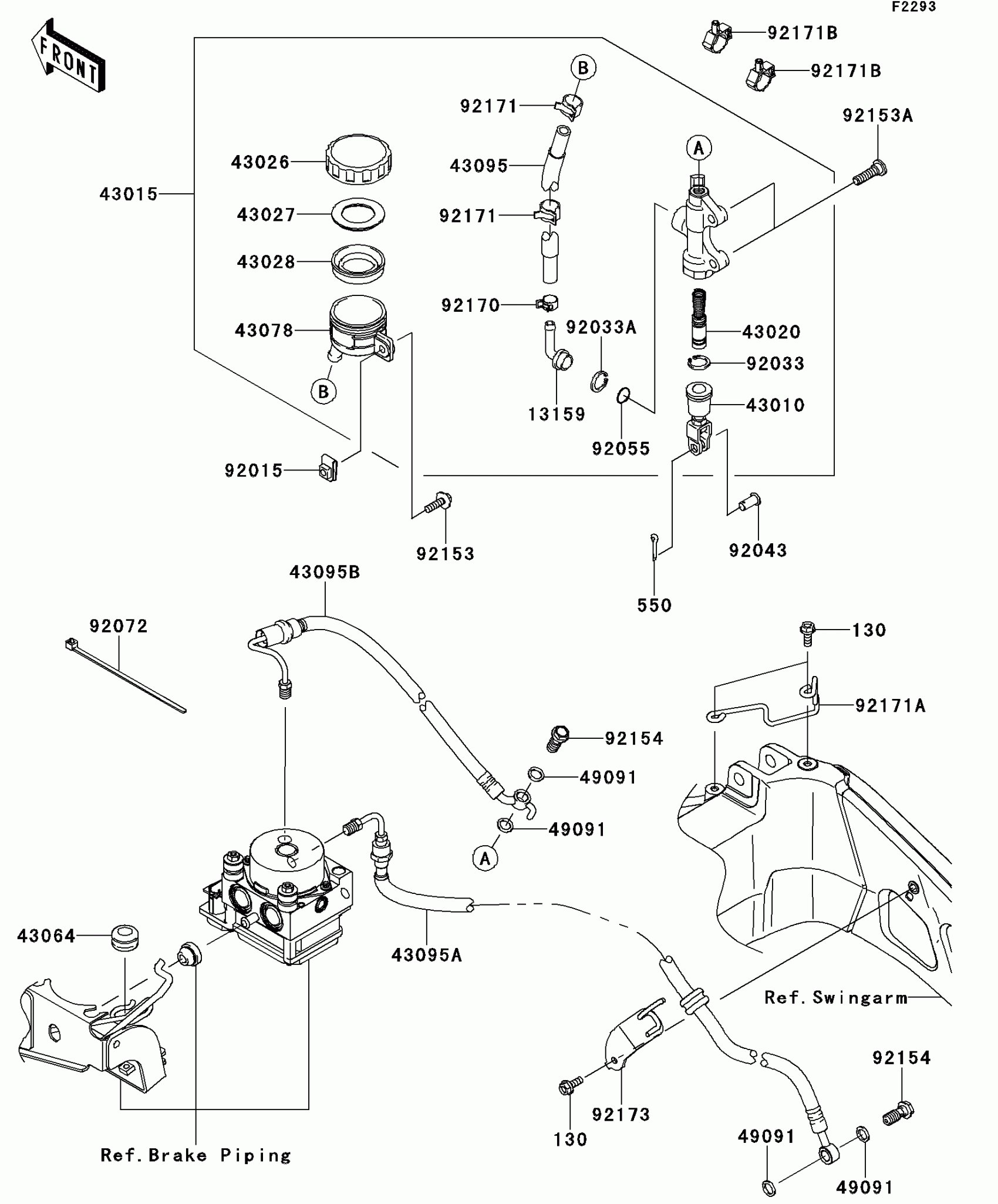

Kawasaki VERSYS® ABS Rear Master Cylinder Diagram

#

Description
Price

13159

CONNECTOR

13159-1056

$10.71

43010

ROD-ASSY-BRAKE

43010-1074

$59.13

43015

CYLINDER-ASSY-MASTER,RR

43015-0068

$276.83

43020

PISTON-COMP-BRAKE

43020-1094

$58.51

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43064

GROMMET,HOSE CLAMP

43064-006

$3.29

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

$28.80

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0193

Unavailable

43095A

HOSE-BRAKE,HU-RR CALIPER

43095-0750

$123.71

43095B

HOSE-BRAKE,HU-RR M/CYLINDER

43095-0751

$108.09

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92015

NUT,6MM

92015-1602

$5.61

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$5.94

92033A

RING-SNAP,20.5MM

92033-1186

$3.78

92043

PIN

92043-0182

$2.64

92055

RING-O,14.8X2.4

92055-0741

$2.82

92072

BAND,L=150

92072-0086

$11.36

92153

BOLT,6X22

92153-0725

$1.81

92153A

BOLT,SOCKET,8X30

92153-1624

$2.98

92154

BOLT,FLANGED,10X23

92154-0732

$3.85

92170

CLAMP,HOSE

92170-1091

$3.81

92171

CLAMP,HOSE

92171-0463

$5.56

92171A

CLAMP,BRAKE HOSE

92171-0826

$11.42

92171B

CLAMP

92171-0955

$4.68

92173

CLAMP,BRAKE HOSE

92173-0128

$32.59

130

BOLT-FLANGED,6X16

130BB0616

$1.49

550

PIN-COTTER,2.0X15

550AA2015

$0.90
