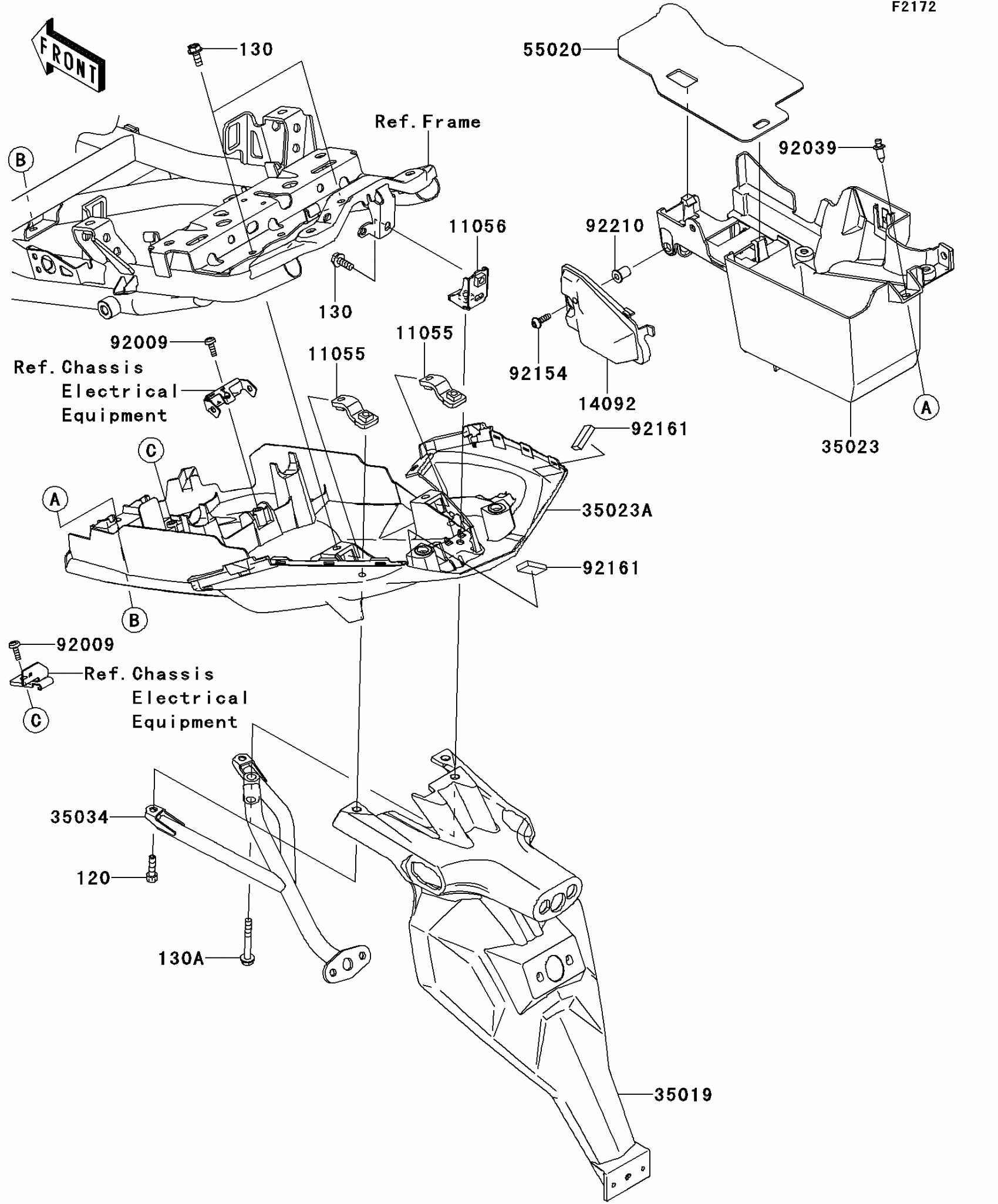

Kawasaki VERSYS® ABS Rear Fender(s) Diagram

Description

Price

11055

BRACKET,FLAP,RR,L&R

11055-1873

$9.12

11056

BRACKET,FLAP,RR,CNT

11056-0236

$7.46

14092

COVER,SWITCH MAINTE.

14092-0174

$10.12

35019

FLAP,RR FENDER

35019-0102

$80.20

35023

FENDER-REAR,FR

35023-0163

$33.43

35023A

FENDER-REAR,RR

35023-0196

$72.45

35034

REINFORCE

35034-0123

$102.94

55020

GUARD,HEAT

55020-0220

$20.46

92009

SCREW,6X14

92009-3845

$1.00

92039

RIVET

92039-1283

$1.98

92154

BOLT,SOCKET,5X16

92154-0182

$1.81

92161

DAMPER

92161-0717

$0.86

92210

NUT,WELL,5MM

92210-0498

$5.58

120

BOLT-SOCKET,6X22

120CA0622

$1.49

130

BOLT-FLANGED,6X16

130BA0616

$0.97

130A

BOLT-FLANGED,6X45

130BB0645

$4.15
