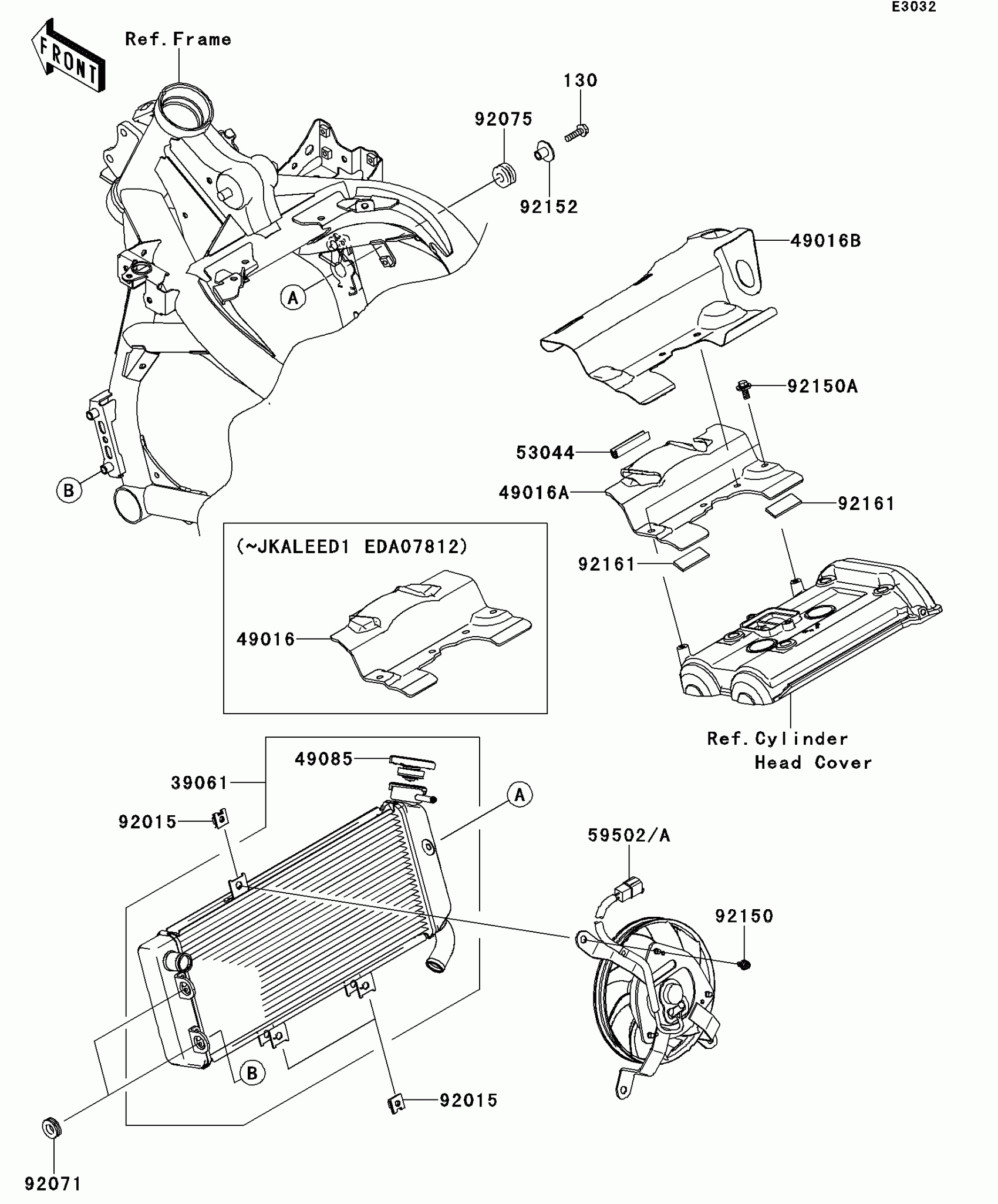

Kawasaki VERSYS® ABS Radiator Diagram

Description

Price

39061

RADIATOR-ASSY

39061-0217

$902.88

49016

COVER-SEAL

49016-0566

$24.93

49016A

COVER-SEAL

49016-0618

$23.79

49016B

COVER-SEAL

49016-0624

$17.88

49085

CAP-ASSY-PRESSURE

49085-1066

$37.42

53044

TRIM,L=50

53044-1185

$5.29

59502

FAN-ASSY

59502-0041

Unavailable

59502A

FAN-ASSY

59502-0570

$549.14

92015

NUT

92015-1487

$4.80

92071

GROMMET

92071-1115

$5.46

92075

DAMPER,10X24X12

92075-1690

$5.00

92150

BOLT,6X12

92150-1186

$3.37

92150A

BOLT,FLANGED,6X14

92150-1689

$3.94

92152

COLLAR,6.5X10X13.1

92152-0910

$1.63

92161

DAMPER

92161-0301

$2.15

130

BOLT-FLANGED,6X22

130BA0622

$1.29
