Description

Price

11054

BRACKET,EX.COVER,UPP,LH

11054-0420

$9.67

11054A

BRACKET,EX.COVER,UPP,RH

11054-0421

$11.93

11054B

BRACKET,EX.COVER,LWR,LH

11054-0485

$17.79

11054C

BRACKET,EX.COVER,LWR,RH

11054-0486

$39.63

11061

GASKET,EXHAUST PIPE

11061-0278

$10.69

18091

BODY-COMP-MUFFLER

18091-0845

$967.19

18140

GASKET-MUFFLER

18140-0059

$15.01

39178

MANIFOLD-COMP-EXHAUST

39178-0062

$572.00

49107

COVER-EXHAUST PIPE,LH,F.BLACK

49107-0081-6Z

$88.65

49107A

COVER-EXHAUST PIPE,RH,F.BLACK

49107-0082-6Z

$88.65

92143

COLLAR

92143-1087

$4.31

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR,8.8X11.2X4

92152-0909

$5.65

92152A

COLLAR

92152-1692

$9.73

92154

BOLT,FLANGED,8X165

92154-0189

$10.05

92154A

BOLT,FLANGED,6X14

92154-0777

$2.67

92160

DAMPER,MUFFLER MOUNT

92160-1116

$5.52

92170

CLAMP

92170-1514

$4.31

92173

CLAMP

92173-0110

$26.38

92210

NUT,8MM

92210-1114

$2.46

130

BOLT-FLANGED,8X35

130CD0835

$2.80

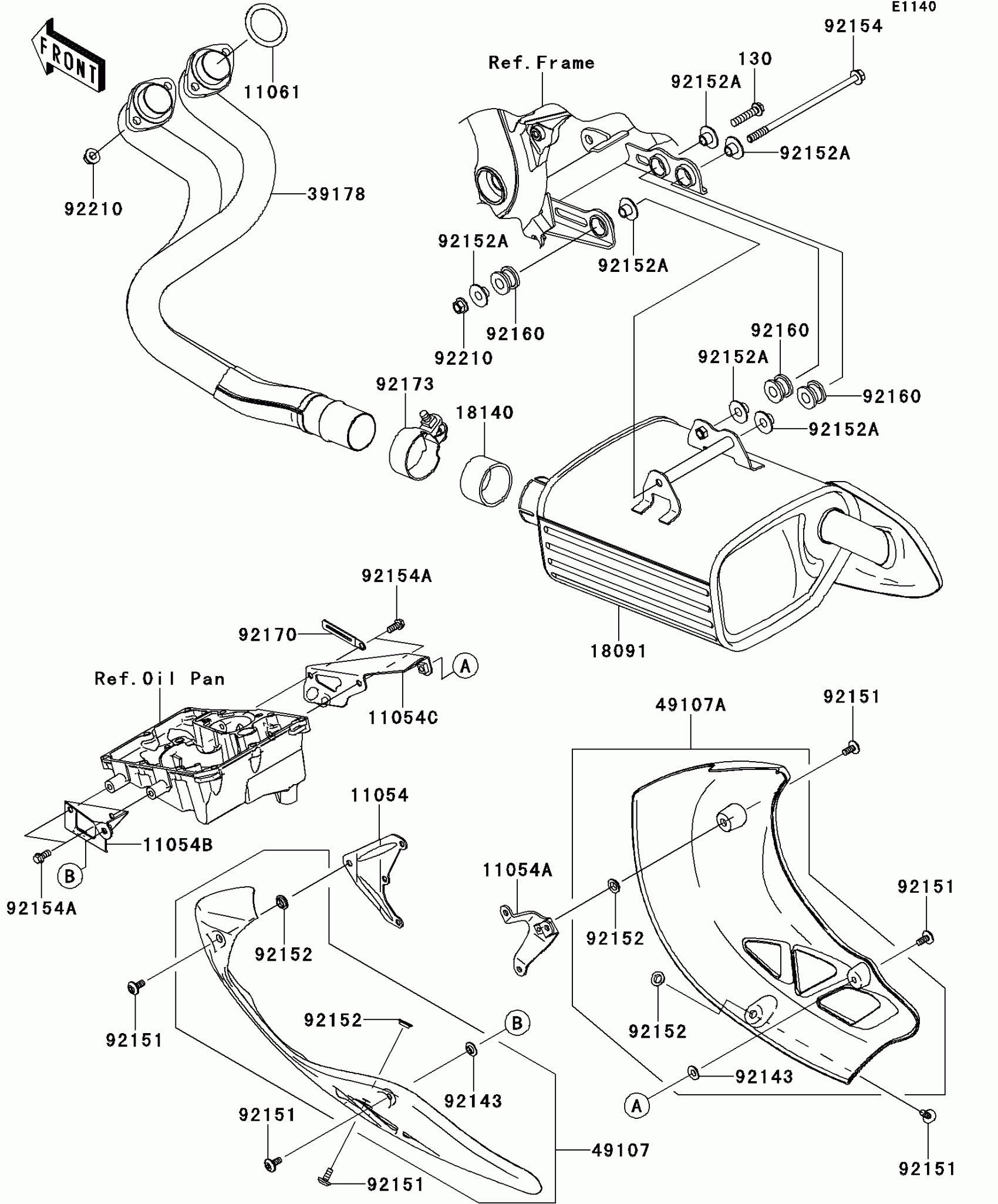

Kawasaki VERSYS® ABS Muffler(s) Diagram

BRACKET,EX.COVER,UPP,LH

BRACKET,EX.COVER,UPP,RH

BRACKET,EX.COVER,LWR,LH

BRACKET,EX.COVER,LWR,RH

GASKET,EXHAUST PIPE

BODY-COMP-MUFFLER

GASKET-MUFFLER

MANIFOLD-COMP-EXHAUST

COVER-EXHAUST PIPE,LH,F.BLACK

COVER-EXHAUST PIPE,RH,F.BLACK

COLLAR

BOLT,SOCKET,6X14

COLLAR,8.8X11.2X4

COLLAR

BOLT,FLANGED,8X165

BOLT,FLANGED,6X14

DAMPER,MUFFLER MOUNT

CLAMP

CLAMP

NUT,8MM

BOLT-FLANGED,8X35
