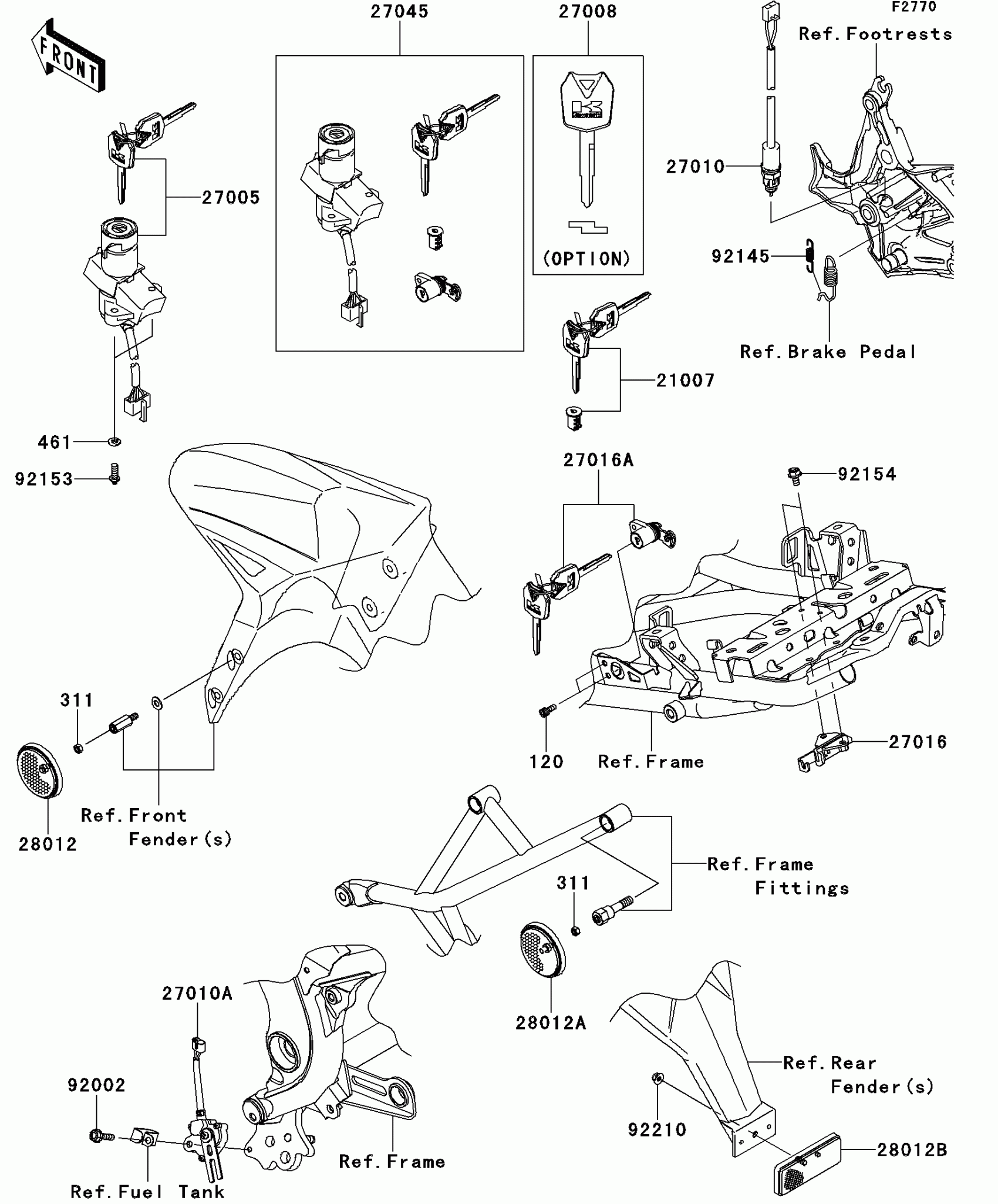

Kawasaki VERSYS® ABS Ignition Switch Diagram

Description

Price

21007

ROTOR,LOCK,TANK CAP

21007-5057

$84.71

27005

SWITCH-ASSY-IGNITION

27005-5141

$183.11

27008

KEY-LOCK,BLANK

27008-0030

$18.66

27010

SWITCH,REAR BRAKE

27010-0095

$28.74

27010A

SWITCH,SIDE STAND

27010-0097

$117.39

27016

LOCK-ASSY,SEAT STRIKER

27016-0008

$14.90

27016A

LOCK-ASSY,SEAT

27016-5309

$86.99

27045

SWITCH-ASSY

27045-5360

$417.31

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$24.14

28012A

REFLECTOR-REFLEX

28012-0002

$24.14

28012B

REFLECTOR-REFLEX

28012-1077

$23.25

92002

BOLT,FLANGED,6X25

92002-1582

$4.69

92145

SPRING,REAR BRAKE SWITCH

92145-0091

$3.69

92153

BOLT,TORX,6X16

92153-0967

$2.61

92154

BOLT,FLANGED,6X12

92154-1050

$1.97

92210

NUT,FLANGED,5MM

92210-0007

$2.70

120

BOLT-SOCKET,5X12

120CB0512

$1.76

311

NUT-HEX,5MM

311AB0500

$0.43

461

WASHER-SPRING,6MM

461DA0600

$0.71
