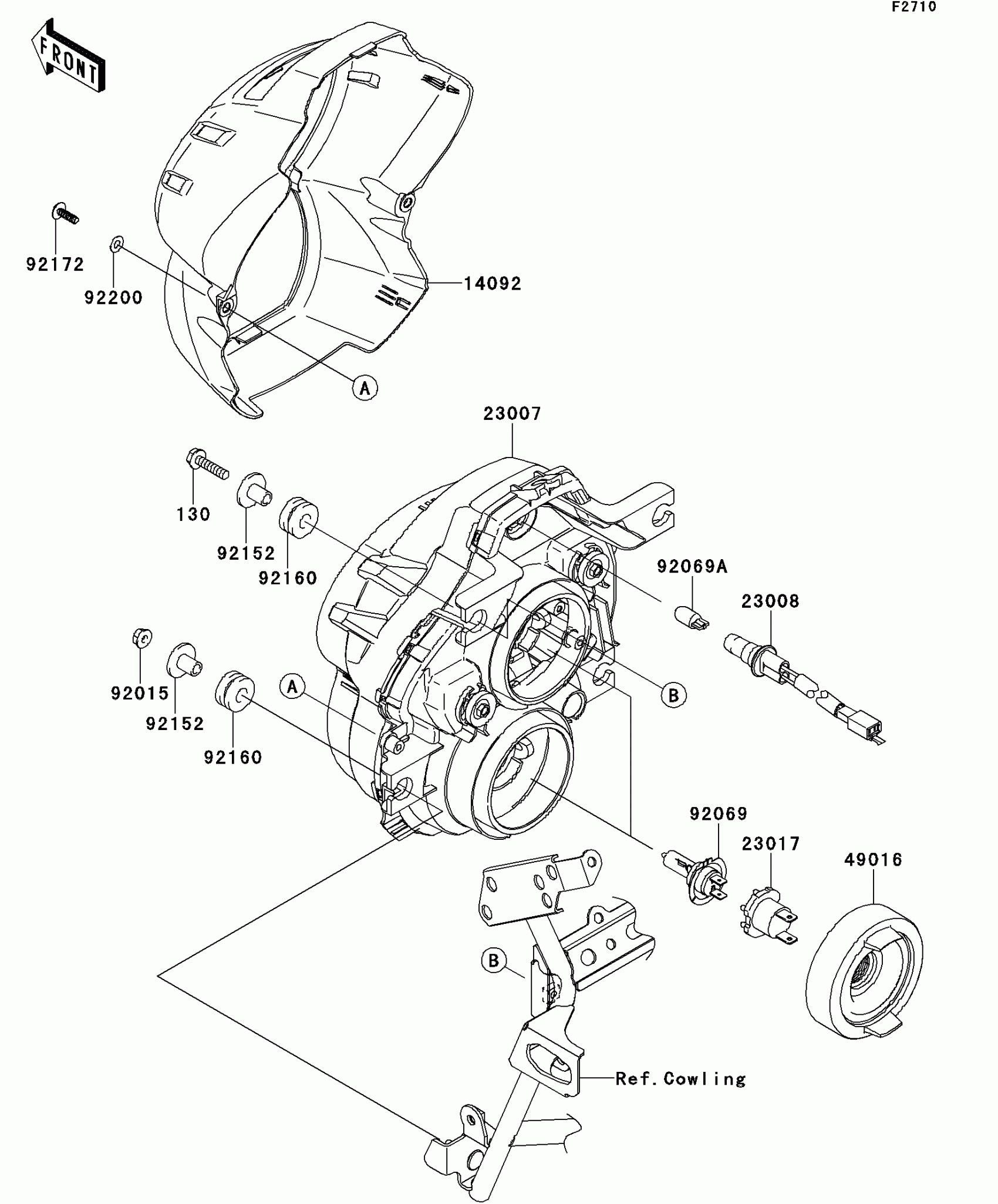

Kawasaki VERSYS® ABS Headlight(s) Diagram

Description

Price

14092

COVER,HEAD LAMP,F.S.BLACK

14092-0073-18T

$120.98

23007

LENS-COMP,HEAD LAMP

23007-0171

$372.64

23008

SOCKET-ASSY,CITY LIGHT

23008-0134

$28.86

23017

SOCKET,HEAD LAMP

23017-0003

$15.78

49016

COVER-SEAL,HEAD LAMP

49016-0075

$19.68

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92069

BULB,12V 55W,H7

92069-0053

$42.86

92069A

BULB,12V 5W

92069-1016

$6.52

92152

COLLAR

92152-0048

$2.80

92160

DAMPER

92160-1162

$5.00

92172

SCREW,TAPPING,5X16

92172-0742

$1.94

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.59

130

BOLT-FLANGED,6X25

130BA0625

$1.20
