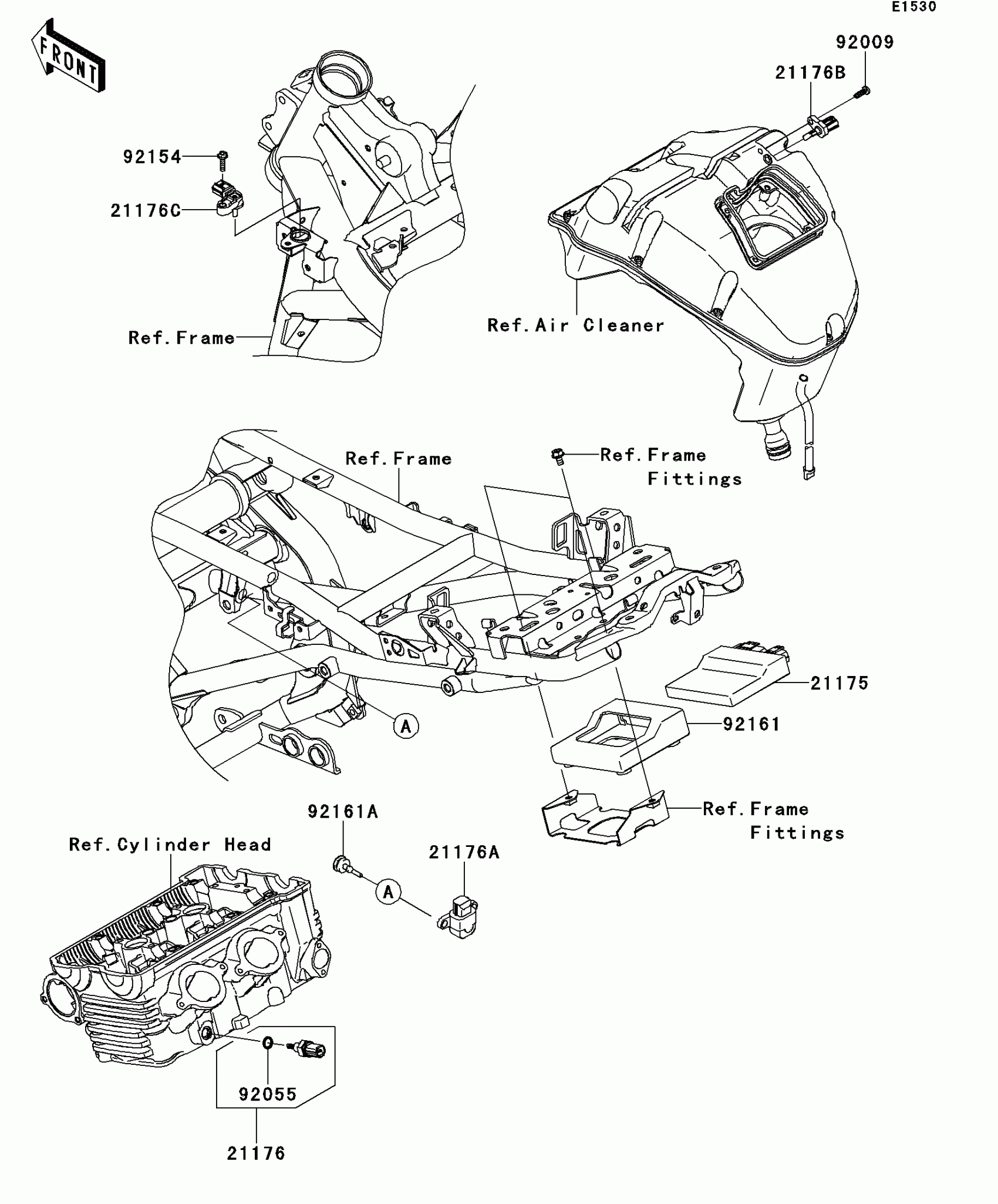

Kawasaki VERSYS® ABS Fuel Injection Diagram

#

Description
Price

21175

CONTROL UNIT-ELECTRONIC

21175-0313

$737.69

21176

SENSOR,WATER TEMP

21176-0009

$60.88

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$75.87

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$23.09

21176C

SENSOR,PRESSURE

21176-0111

$226.99

92009

SCREW,TAPPING,5X16

92009-1984

$2.12

92055

RING-O,9.5X1.9

92055-0016

$6.77

92154

BOLT,FLANGED,5X18

92154-0785

$0.85

92161

DAMPER,ECU

92161-0630

$26.02

92161A

DAMPER

92161-0901

$2.80
