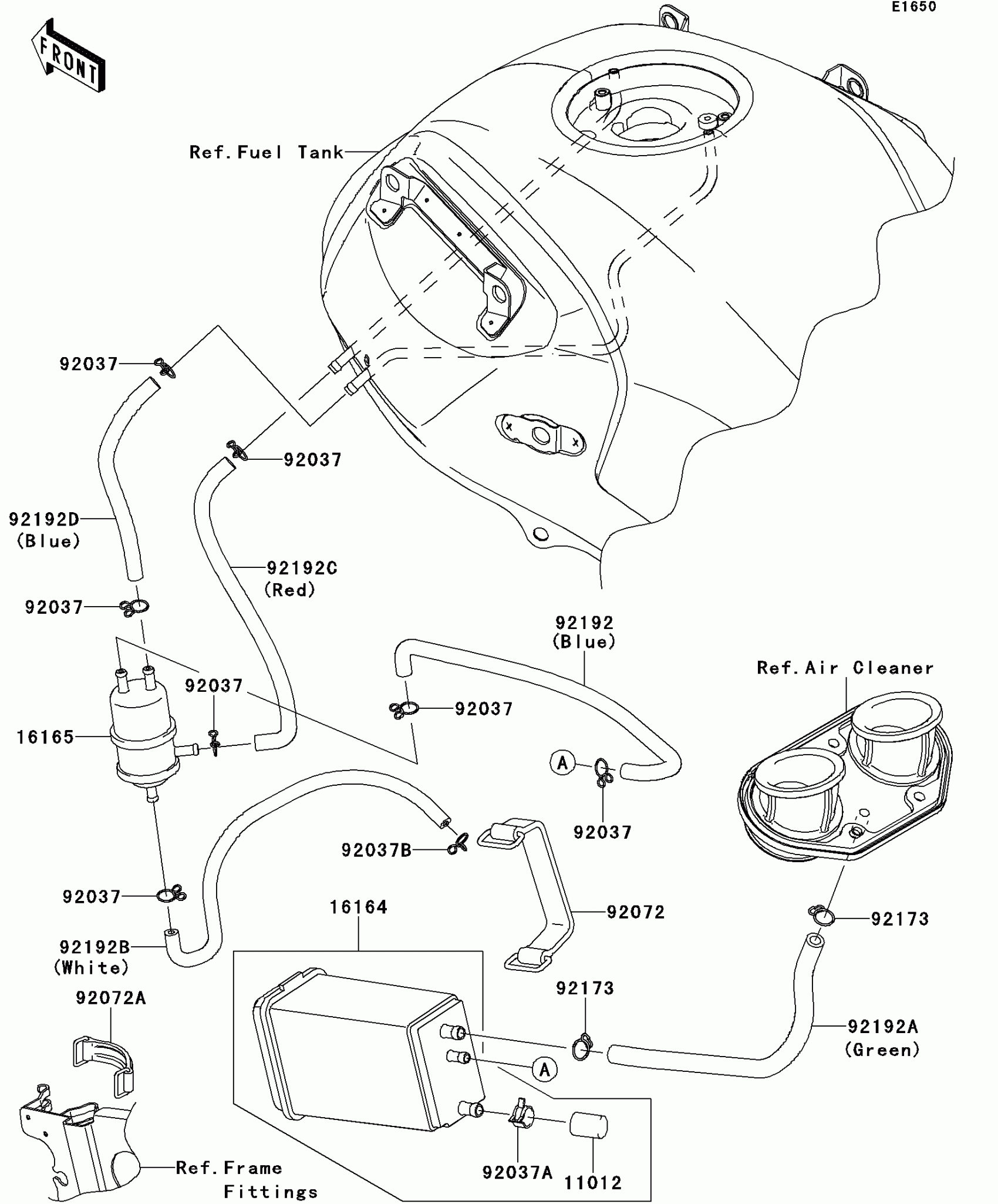

Kawasaki VERSYS® ABS Fuel Evaporative System(CA) Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.51

16164

CANISTER

16164-1054

$130.07

16165

SEPARATOR

16165-1001

$90.01

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP,CANISTER

92037-1512

$6.57

92037B

CLAMP

92037-1712

$5.00

92072

BAND

92072-1384

$13.75

92072A

BAND,L=50

92072-1419

$16.08

92173

CLAMP,11.5MM

92173-0197

$5.70

92192

TUBE,CANISTER-SEPARATOR,BLUE

92192-0719

$90.33

92192A

TUBE,A/C-CANISTER,GREEN

92192-0720

$50.23

92192B

TUBE,SEPARATOR-THROBO,WHITE

92192-0721

$9.74

92192C

TUBE,SEPARATOR-TANK,RED

92192-0871

$59.13

92192D

TUBE,TANK-SEPARATOR,BLUE

92192-0872

$75.25
