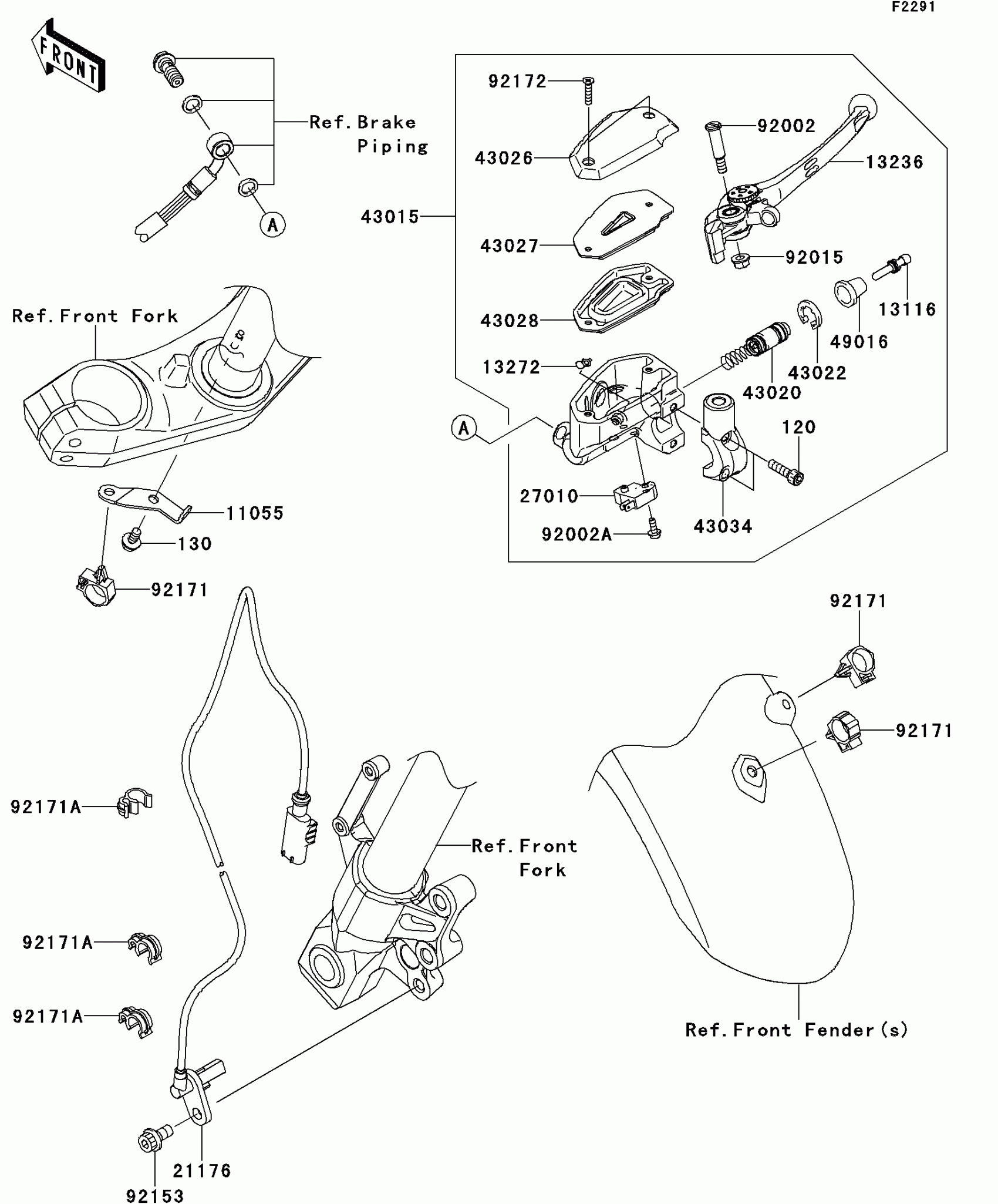

Kawasaki VERSYS® ABS Front Master Cylinder Diagram

Description

Price

11055

BRACKET,BRAKE HOSE

11055-1875

$6.54

13116

ROD-PUSH

13116-0032

$23.24

13236

LEVER-COMP,FRONT BRAKE

13236-0169

$74.58

13272

PLATE

13272-0573

$7.60

21176

SENSOR,SPEED,FR

21176-0040

$146.05

27010

SWITCH,BRAKE

27010-0025

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0116

$409.35

43020

PISTON-COMP-BRAKE

43020-0015

$65.94

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-0019

$46.21

43027

PLATE-DIAPHRAGM

43027-0008

$8.69

43028

DIAPHRAGM

43028-0015

$36.45

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0049

$45.06

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92153

BOLT,SOCKET,8X16

92153-0327

$6.28

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

92171A

CLAMP,BRAKE HOSE

92171-1819

$5.54

92172

SCREW,4X20

92172-0320

$3.90

120

BOLT-SOCKET,6X22

120CB0622

$5.31

130

BOLT-FLANGED,6X14

130BA0614

$1.20
