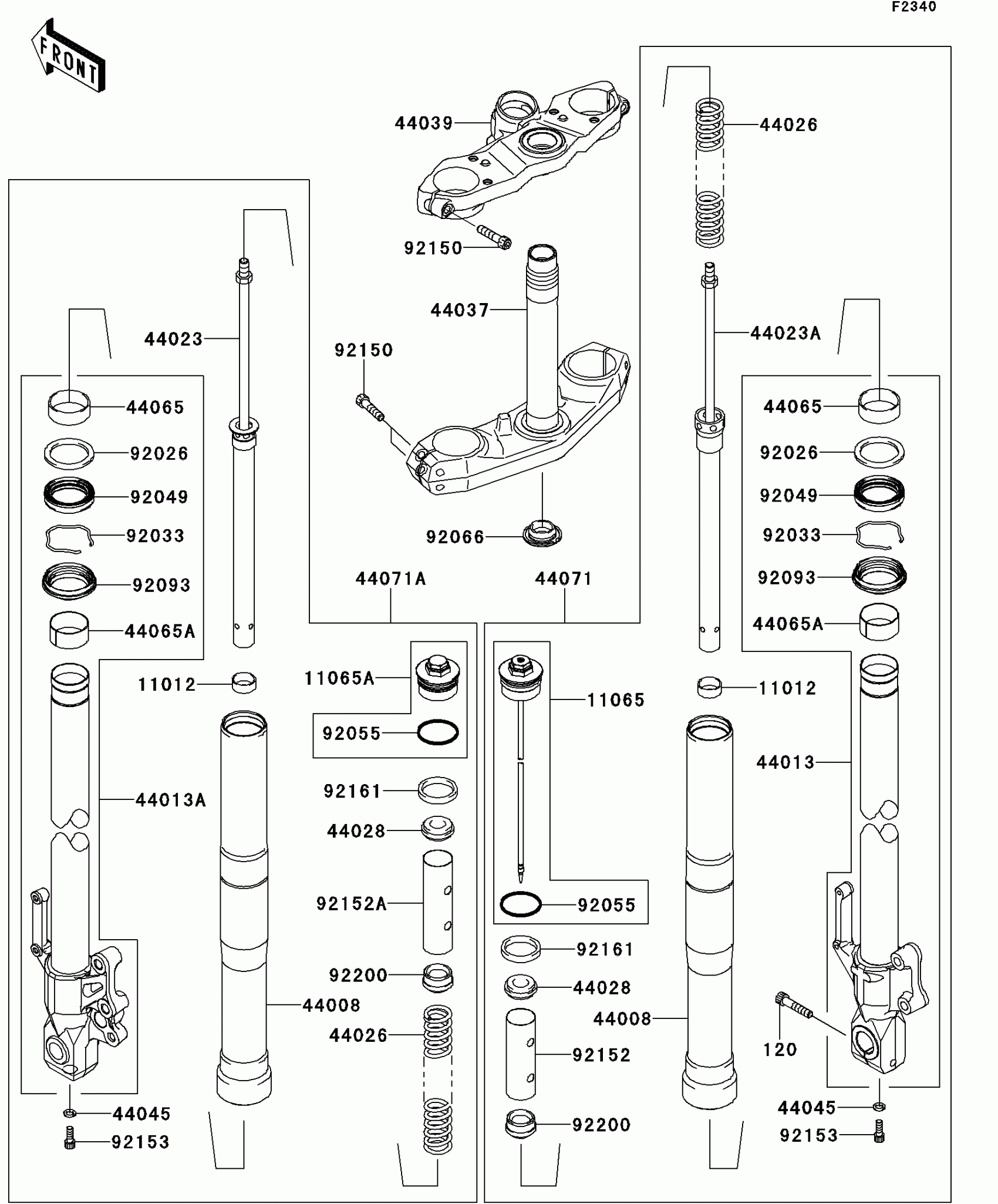

Kawasaki VERSYS® ABS Front Fork Diagram

#

Description
Price

11012

CAP

11012-1761

$34.90

11065

CAP,FORK BOLT COMP,RH

11065-0196

$66.08

11065A

CAP,FORK BOLT COMP,LH

11065-0197

$66.08

44008

PIPE-FORK OUTER,A.BLACK

44008-0037-499

$276.43

44013

PIPE-FORK INNER,RH,F.S.BLACK

44013-0157-18R

Unavailable

44013A

PIPE-FORK INNER,LH,F.S.BLACK

44013-0159-18R

$353.97

44023

CYLINDER-SET-FORK,LH

44023-0048

$164.87

44023A

CYLINDER-SET-FORK,RH

44023-0049

$164.87

44026

SPRING-FRONT FORK

44026-0097

$65.47

44028

GUIDE-FORK SPRING

44028-1083

$9.34

44037

HOLDER-FORK UNDER

44037-0053

$444.06

44039

HOLDER-FORK UPPER,P.SILVER

44039-0127-458

$222.24

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44065

BUSHING-FRONT FORK,GUIDE

44065-0001

$19.73

44065A

BUSHING-FRONT FORK,SLIDE

44065-0002

$19.73

44071

DAMPER-ASSY,FORK,RH,BLK+BLK

44071-0675-30F

Unavailable

44071A

DAMPER-ASSY,FORK,LH,BLK+BLK

44071-0676-30F

$722.67

92026

SPACER,FORK OUTER

92026-1276

$9.51

92033

RING-SNAP

92033-1222

$6.51

92049

SEAL-OIL

92049-0058

$25.22

92055

RING-O

92055-0131

$5.65

92066

PLUG

92066-0032

$11.66

92093

SEAL,DUST

92093-0035

$25.59

92150

BOLT,SOCKET

92150-1511

Unavailable

92152

COLLAR,FORK,L=100

92152-0497

$19.47

92152A

COLLAR,FORK,L=117.5

92152-0498

$19.47

92153

BOLT,SOCKET,8X22

92153-0028

$7.98

92161

DAMPER

92161-0468

$17.79

92200

WASHER

92200-1464

$8.36

120

BOLT-SOCKET,8X40

120CB0840

$4.76
