Front Brake

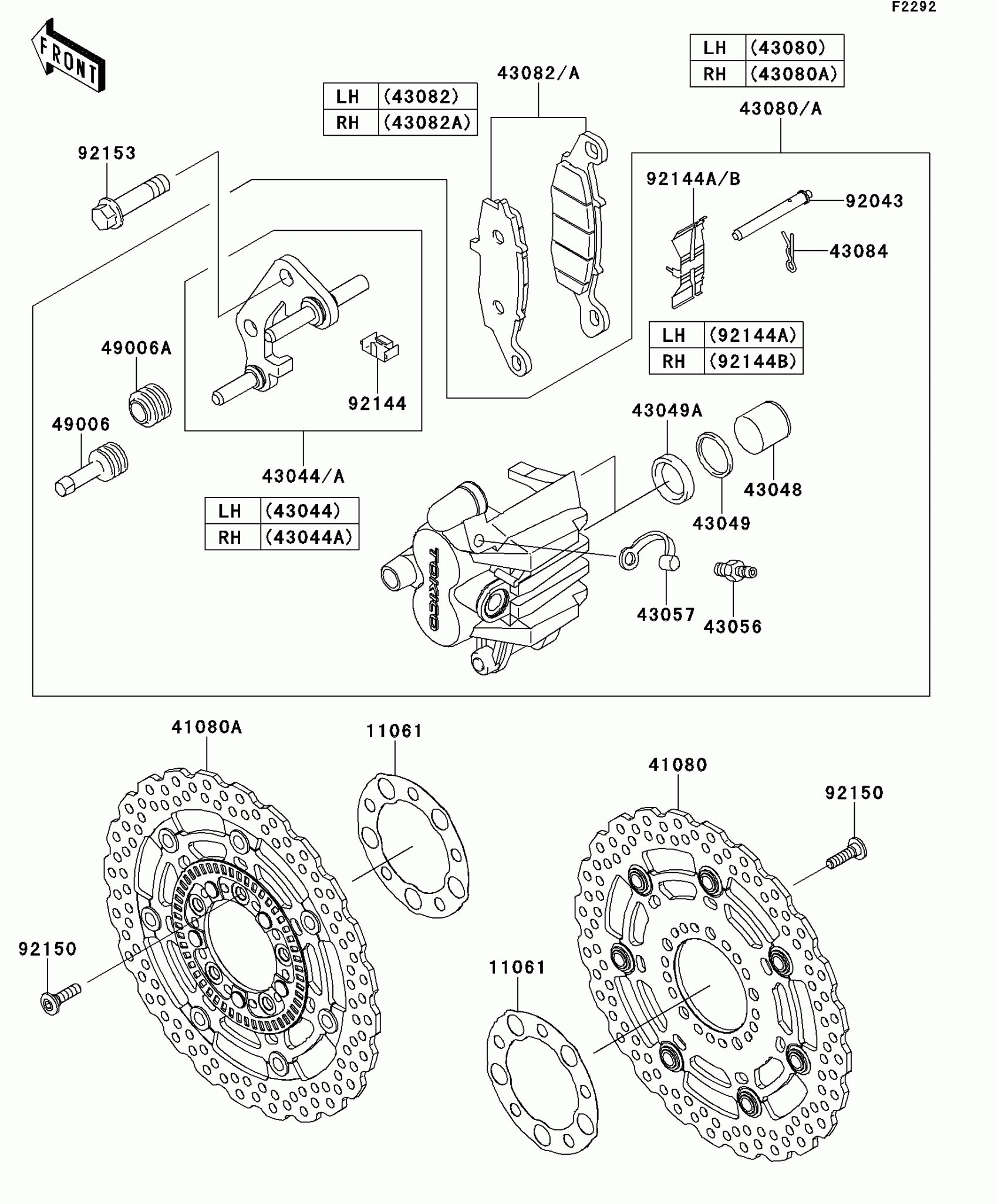

Kawasaki VERSYS® ABS Front Brake Diagram
#
Description
Price
11061
GASKET
11061-0451
$19.36
41080
DISC,FR,HOUSING BLK+DISC SIL
41080-0161-11I
$389.68
41080A
DISC,FR,HOUSING BLK+DISC SIL
41080-0163-11I
$383.72
43044
HOLDER-COMP-CALIPER,FR,LH
43044-1115
$148.83
43044A
HOLDER-COMP-CALIPER,FR,RH
43044-1116
$144.35
43048
PISTON-CALIPER
43048-1052
$66.46
43049
PACKING,PISTON
43049-1055
$11.29
43049A
PACKING,PISTON SEAL
43049-1096
$12.42
43056
BREATHER-BRAKE
43056-0007
$23.79
43057
CAP-BREATHER
43057-003
$2.45
43080
CALIPER-SUB-ASSY,FR,LH,BLACK
43080-0076-DJ
$375.24
43080A
CALIPER-SUB-ASSY,FR,RH,BLACK
43080-0077-DJ
$375.24
43082
PAD-ASSY-BRAKE,LH
43082-0009
$76.79
43082A
PAD-ASSY-BRAKE,RH
43082-0010
$81.17
43084
CLAMP,PAD
43084-003
$4.31
49006
BOOT,CALIPER
49006-1054
$11.61
49006A
BOOT,CALIPER
49006-1095
$7.27
92043
PIN,PAD
92043-1489
$6.57
92144
SPRING,STOPPER
92144-1831
$5.46
92144A
SPRING,PAD,LH
92144-1832
$26.35
92144B
SPRING,PAD,RH
92144-1844
$10.00
92150
BOLT,SOCKET,8X30
92150-1771
$4.69
92153
BOLT,FLANGED,10X35
92153-1680
$7.72
