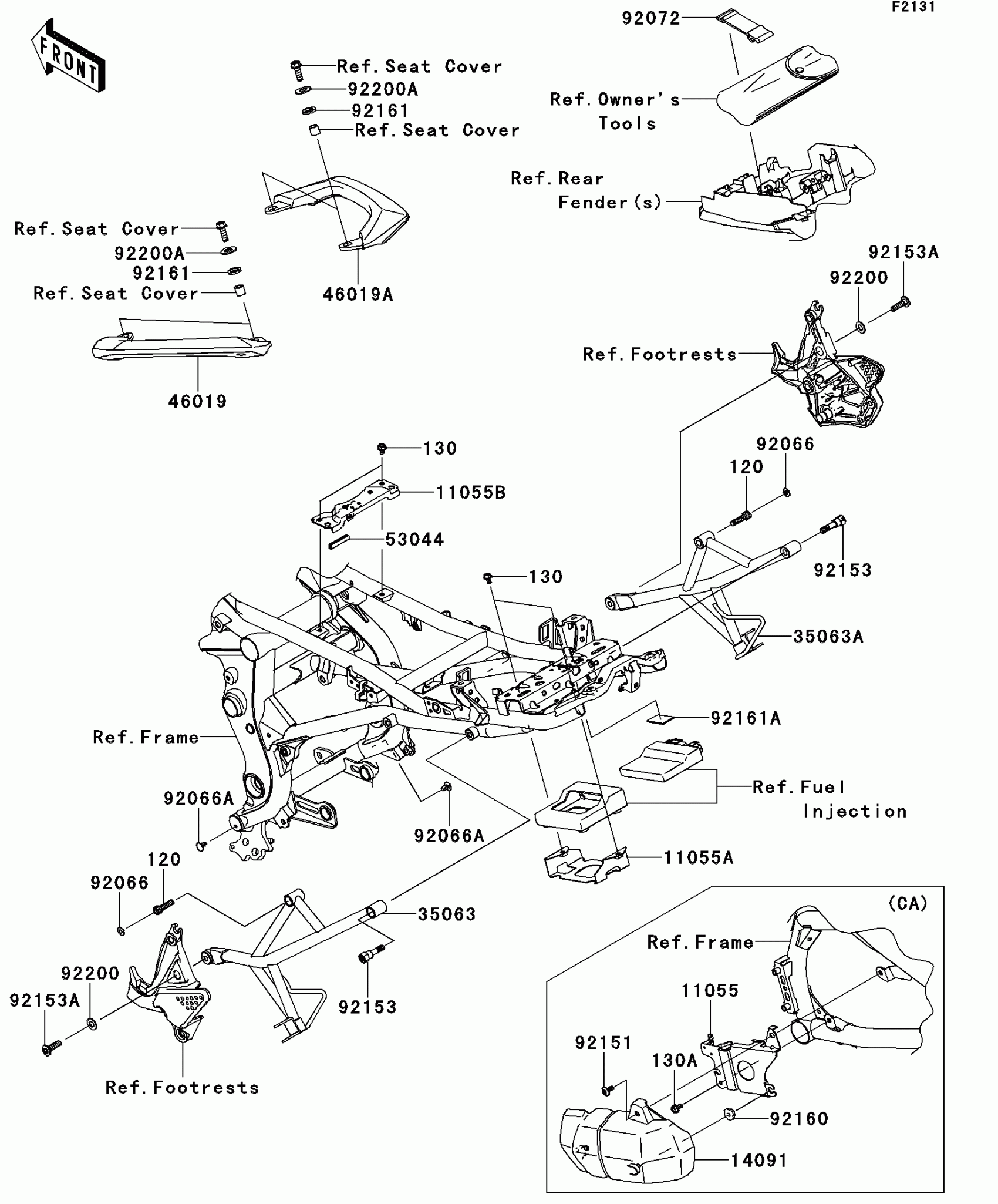

Kawasaki VERSYS® ABS Frame Fittings Diagram

Description

Price

11055

BRACKET,CANISTER

11055-0586

$48.58

11055A

BRACKET,ECU

11055-1872

$21.80

11055B

BRACKET,FUEL TANK

11055-1929

$20.83

14091

COVER,CANISTER

14091-1586

$38.90

35063

STAY,STEP,RR,LH,BLACK

35063-0728-18R

$122.80

35063A

STAY,STEP,RR,RH,BLACK

35063-0729-18R

$122.80

46019

GRIP-ASSY,LH

46019-0030

$98.72

46019A

GRIP-ASSY,RH

46019-0031

$98.72

53044

TRIM,L=40

53044-1174

$3.85

92066

PLUG

92066-0735

$3.39

92066A

PLUG

92066-1103

$2.97

92072

BAND,TOOL

92072-1176

$11.84

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92153

BOLT

92153-1532

$33.65

92153A

BOLT,SOCKET,8X30

92153-1630

$1.85

92160

DAMPER

92160-1613

$2.84

92161

DAMPER,14X22X3

92161-0867

$3.69

92161A

DAMPER,25X40X2

92161-1627

$0.97

92200

WASHER,10.2X20X1.6

92200-0328

$3.51

92200A

WASHER,8.2X26X3.2

92200-0568

$3.17

120

BOLT-SOCKET,8X30

120CA0830

$1.98

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,6X12

130BB0612

$1.68
