Description

Price

32085

STOPPER,REAR STEP

32085-0047

$5.57

34003

HOLDER-STEP,FR,LH

34003-1474

$46.10

34028

STEP,FR,LH

34028-0127

$52.67

34028A

STEP,FR,RH

34028-0128

$52.67

34028B

STEP,RUBBER

34028-0133

$14.85

34028C

STEP,RR,LH

34028-0314

$45.71

34028D

STEP,RR,RH

34028-0315

$45.71

35063

STAY,STEP,FR,LH,F.S.BLACK

35063-0709-18R

$100.27

35063A

STAY,STEP,FR,RH,F.S.BLACK

35063-0710-18R

$100.27

92043

PIN,12X37

92043-0025

$5.57

92043A

PIN,12X37.5

92043-0026

$5.57

92043B

PIN,6X34

92043-1271

$5.52

92140

BALL,6.35MM

92140-0008

Unavailable

92145

SPRING,STEP RETURN

92145-0723

$3.67

92145A

SPRING

92145-1319

$1.81

92150

BOLT,BANK SENSOR

92150-1114

$11.39

92150A

BOLT,SOCKET,10X25

92150-1268

$6.22

92153

BOLT,SOCKET,8X30

92153-1630

$2.61

92172

SCREW-PAN-WP-CROS,5X14

92172-0473

$2.32

92200

WASHER,16X26X2.3

92200-0043

$7.65

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

482A

CIRCLIP-TYPE-E

482EA5000

$1.34

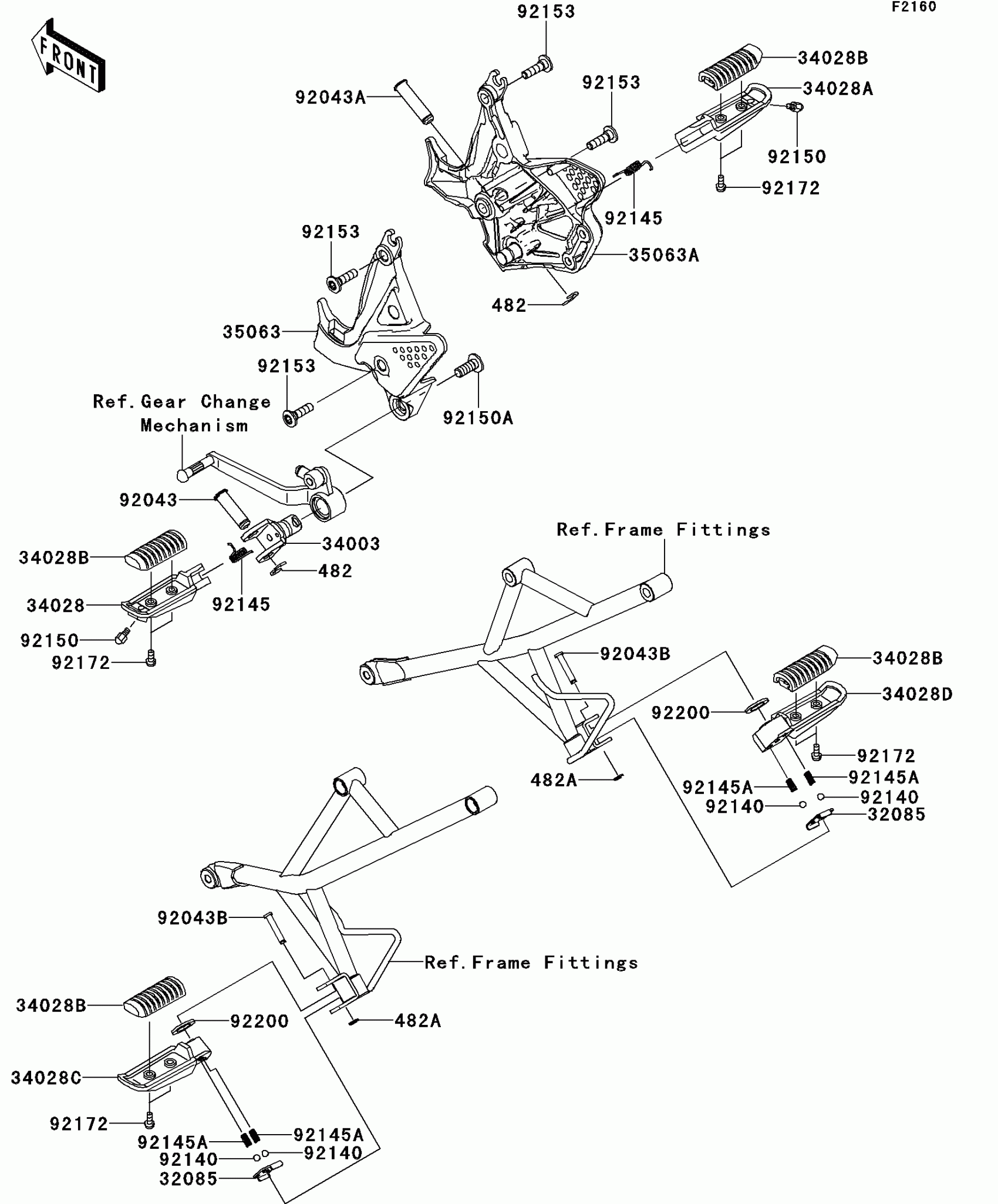

Kawasaki VERSYS® ABS Footrests Diagram

STOPPER,REAR STEP

HOLDER-STEP,FR,LH

STEP,FR,LH

STEP,FR,RH

STEP,RUBBER

STEP,RR,LH

STEP,RR,RH

STAY,STEP,FR,LH,F.S.BLACK

STAY,STEP,FR,RH,F.S.BLACK

PIN,12X37

PIN,12X37.5

PIN,6X34

BALL,6.35MM

SPRING,STEP RETURN

SPRING

BOLT,BANK SENSOR

BOLT,SOCKET,10X25

BOLT,SOCKET,8X30

SCREW-PAN-WP-CROS,5X14

WASHER,16X26X2.3

CIRCLIP-TYPE-E,10MM

CIRCLIP-TYPE-E
