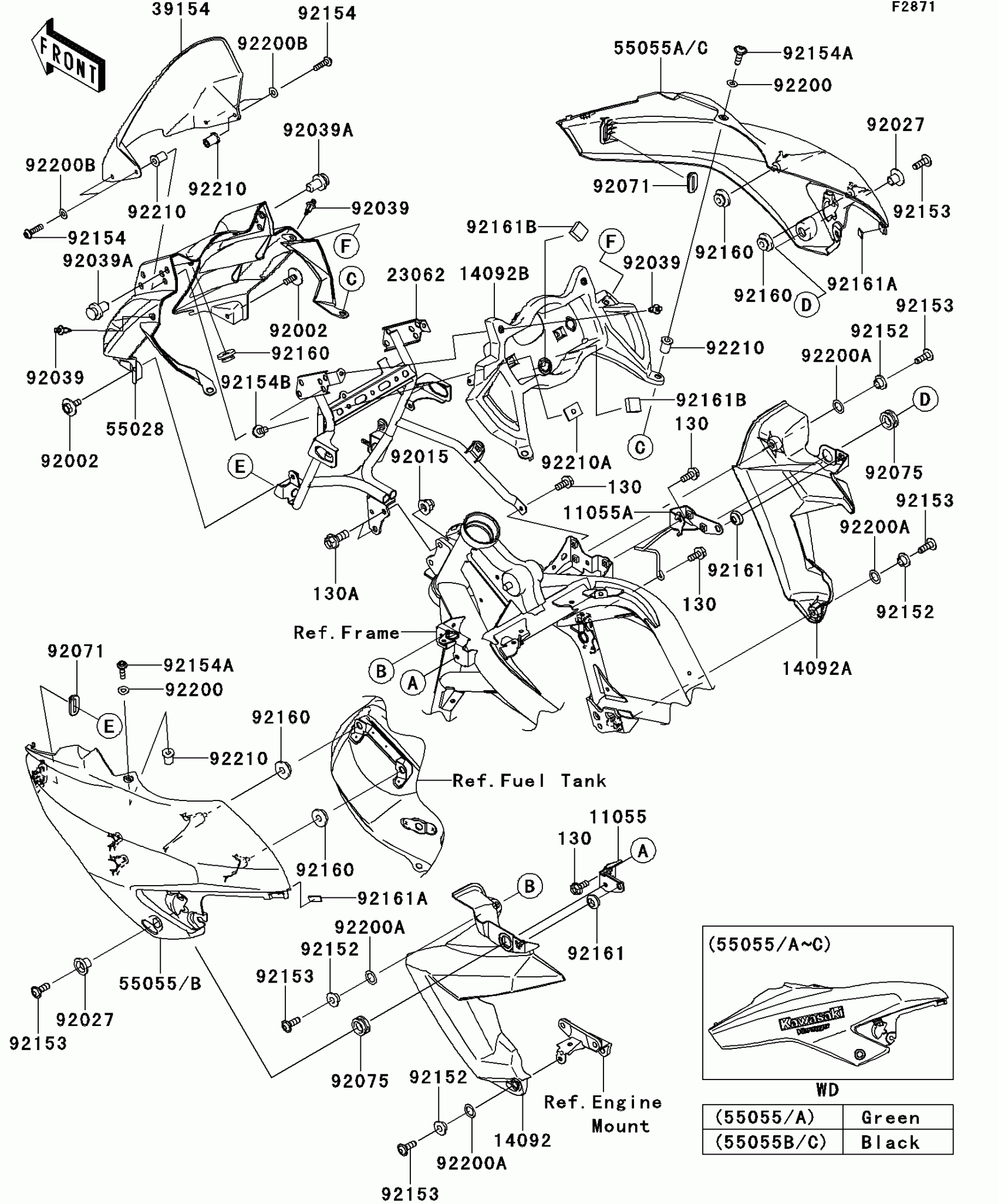

Kawasaki VERSYS® ABS Cowling Diagram

#

Description
Price

11055

BRACKET,COWLING,LH

11055-1887

$12.31

11055A

BRACKET,COWLING,RH

11055-1888

$33.88

14092

COVER,RADIATOR,LH,F.S.BLACK

14092-0074-18T

$123.50

14092A

COVER,RADIATOR,RH,F.S.BLACK

14092-0075-18T

$123.50

14092B

COVER,METER

14092-0264

$113.36

23062

BRACKET-COMP,COWLING,CNT

23062-0112

$194.56

39154

WINDSHIELD

39154-0053

$180.55

55028

COWLING,UPP

55028-0309

$160.24

55055

COWLING,SIDE,LH,C.L.GREEN

55055-5264-35P

$370.80

55055A

COWLING,SIDE,RH,C.L.GREEN

55055-5265-35P

$368.42

55055B

COWLING,SIDE,LH,M.S.BLACK

55055-5272-660

$309.95

55055C

COWLING,SIDE,RH,M.S.BLACK

55055-5273-660

$341.18

92002

BOLT,6X16

92002-1188

$3.68

92015

NUT,CAP,8MM

92015-1151

$3.81

92027

COLLAR

92027-1045

$4.18

92039

RIVET

92039-0023

$2.09

92039A

RIVET

92039-0098

$4.18

92071

GROMMET

92071-0013

$4.85

92075

DAMPER

92075-1634

$3.57

92152

COLLAR

92152-1359

$5.84

92153

BOLT,6X18

92153-0478

$1.81

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92154A

BOLT,SOCKET,5X20

92154-0210

$1.54

92154B

BOLT,FLANGED,6X12

92154-1050

$1.68

92160

DAMPER

92160-1613

$2.84

92161

DAMPER

92161-0631

$5.63

92161A

DAMPER

92161-0726

$1.81

92161B

DAMPER,20X20X10

92161-0835

$3.27

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36

92200A

WASHER,10.4X15.9X0.5

92200-0157

$1.57

92200B

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.20

92210

NUT,WELL,5MM

92210-0498

$5.58

92210A

NUT,PLATE,6MM

92210-1352

$1.73

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,8X20

130BA0820

$3.04
