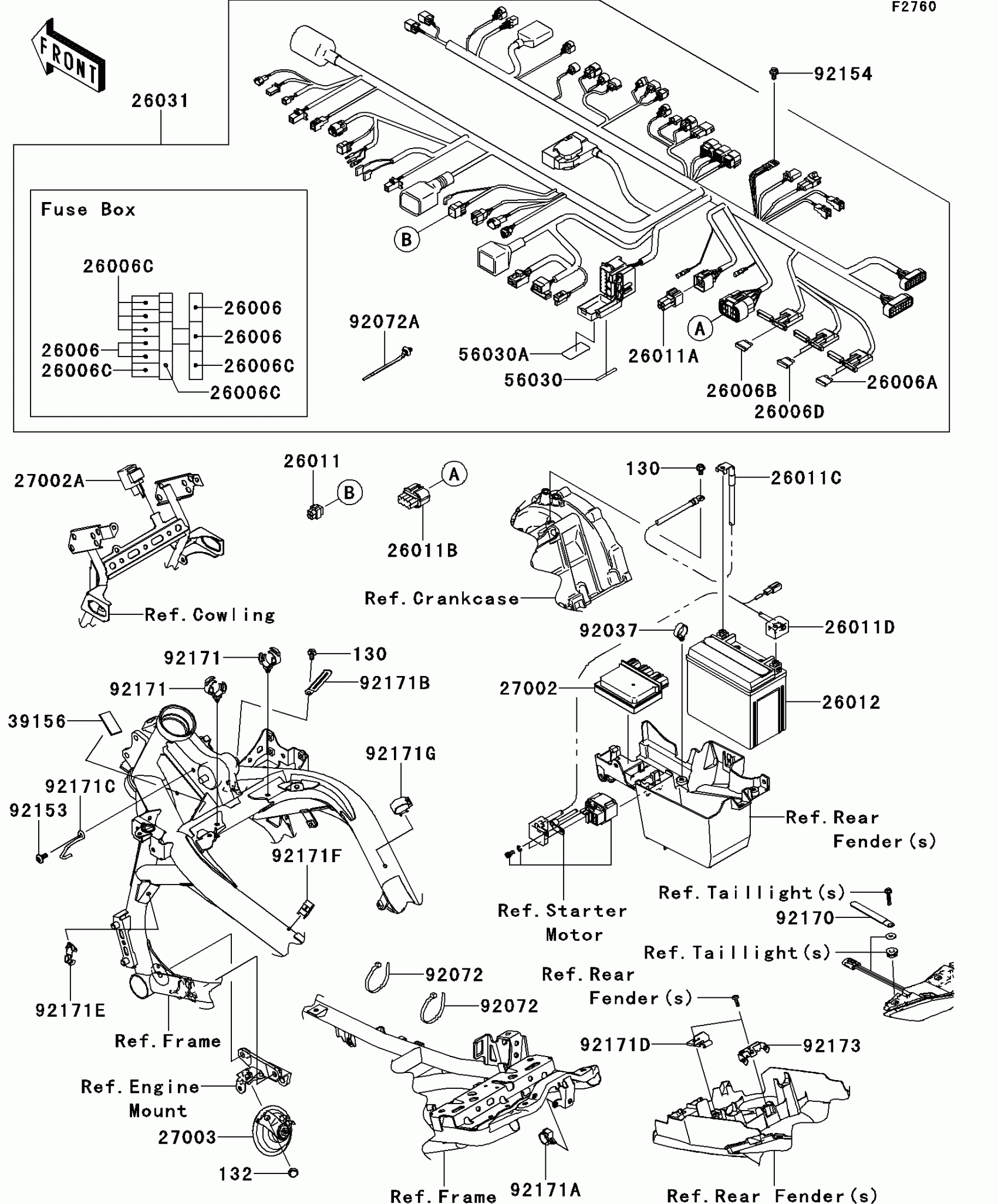

Kawasaki VERSYS® ABS Chassis Electrical Equipment Diagram

#

Description
Price

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,BLADE,25A,NATURAL

26006-0012

$6.05

26006B

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006C

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26006D

FUSE,BLADE,5A,TAN

26006-1082

$5.92

26011

WIRE-LEAD,SENSOR CONNECTOR

26011-0101

$15.35

26011A

WIRE-LEAD,CAP

26011-0271

$14.74

26011B

WIRE-LEAD,CONNECTOR COVER

26011-0275

$14.13

26011C

WIRE-LEAD,BATTERY(-)

26011-0301

$27.80

26011D

WIRE-LEAD,BATTERY(+)

26011-0302

$39.62

26012

BATTERY,FTX12-BS,12V 10AH

26012-0606

Unavailable

26031

HARNESS,MAIN

26031-0957

$992.88

27002

RELAY-ASSY

27002-0007

Unavailable

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1097

$47.41

27003

HORN

27003-0076

$71.68

39156

PAD,20X40X3

39156-0831

$1.18

56030

LABEL,FUSE BOX

56030-0360

$4.42

56030A

LABEL,FUSE BOX

56030-0419

$4.58

92037

CLAMP,HOSE

92037-1827

$7.45

92072

BAND,L=365

92072-1197

$7.84

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92153

BOLT,SOCKET,6X14

92153-1446

$2.15

92154

BOLT,FLANGED,6X12

92154-1050

$1.97

92170

CLAMP

92170-1925

$2.40

92171

CLAMP,20MM DIA.

92171-0069

$2.80

92171A

CLAMP,BRAKE HOSE

92171-0316

$3.88

92171B

CLAMP

92171-0462

$4.92

92171C

CLAMP,HARNESS

92171-0657

$8.12

92171D

CLAMP,LEAD WIRE

92171-0953

$11.93

92171E

CLAMP,13MM DIA.

92171-1415

$2.03

92171F

CLAMP,DIA=15

92171-1424

$4.18

92171G

CLAMP,25MM DIA.

92171-1559

$6.18

92173

CLAMP,FUSE BOX

92173-0218

$13.18

130

BOLT-FLANGED,6X10

130BA0610

$1.20

132

BOLT-FLANGED-SMALL,8X12

132BB0812

$1.81
