Description

Price

11054

BRACKET,BRAKE PIPE

11054-0408

$14.47

11054A

BRACKET,REGULATOR

11054-1577

$26.77

11055

BRACKET,ABS UNIT

11055-1532

$55.92

16082

PUMP-ASSY-OIL,ABS,WET TYPE

16082-0037

$1,367.56

43095

HOSE-BRAKE,FR

43095-0747

$110.37

43095A

HOSE-BRAKE,FR

43095-0748

$119.03

43095B

HOSE-BRAKE,FR

43095-0749

$85.27

43095C

HOSE-BRAKE,HU-FR M/CYLINDER

43095-0753

$64.84

43095D

HOSE-BRAKE,HU-FR CALIPER

43095-0754

$73.56

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92027

COLLAR,L=13.1,BLACK

92027-1450

$6.22

92071

GROMMET

92071-0013

$5.54

92075

DAMPER RUBBER,RR FENR

92075-209

$4.69

92152

COLLAR

92152-0409

$18.64

92153

BOLT,SOCKET,6X14

92153-1446

$2.15

92153A

BOLT,SOCKET,6X16

92153-1517

$2.61

92154

BOLT,FLANGED,10X23

92154-0732

$5.05

92154A

BOLT,FLANGED,10X37

92154-0733

$9.17

92161

DAMPER,ABS UNIT

92161-0282

$7.75

92161A

DAMPER,BRAKE PIPE

92161-0347

$5.38

130

BOLT-FLANGED,6X35

130BB0635

$4.76

132

BOLT-FLANGED-SMALL,6X22

132BB0622

$2.31

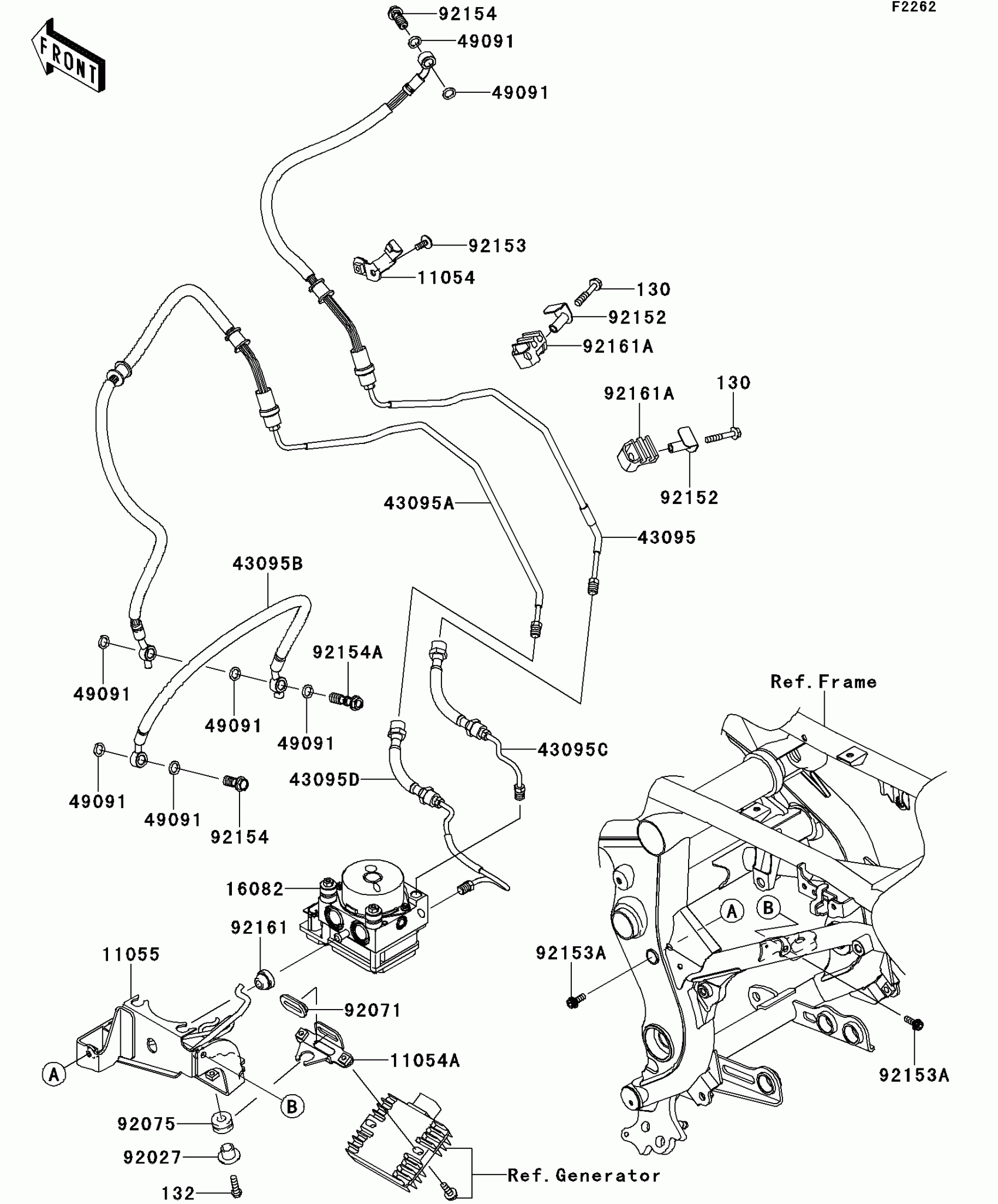

Kawasaki VERSYS® ABS Brake Piping Diagram

BRACKET,BRAKE PIPE

BRACKET,REGULATOR

BRACKET,ABS UNIT

PUMP-ASSY-OIL,ABS,WET TYPE

HOSE-BRAKE,FR

HOSE-BRAKE,FR

HOSE-BRAKE,FR

HOSE-BRAKE,HU-FR M/CYLINDER

HOSE-BRAKE,HU-FR CALIPER

WASHER-SEAL,10.1X14.5X1.5

COLLAR,L=13.1,BLACK

GROMMET

DAMPER RUBBER,RR FENR

COLLAR

BOLT,SOCKET,6X14

BOLT,SOCKET,6X16

BOLT,FLANGED,10X23

BOLT,FLANGED,10X37

DAMPER,ABS UNIT

DAMPER,BRAKE PIPE

BOLT-FLANGED,6X35

BOLT-FLANGED-SMALL,6X22
