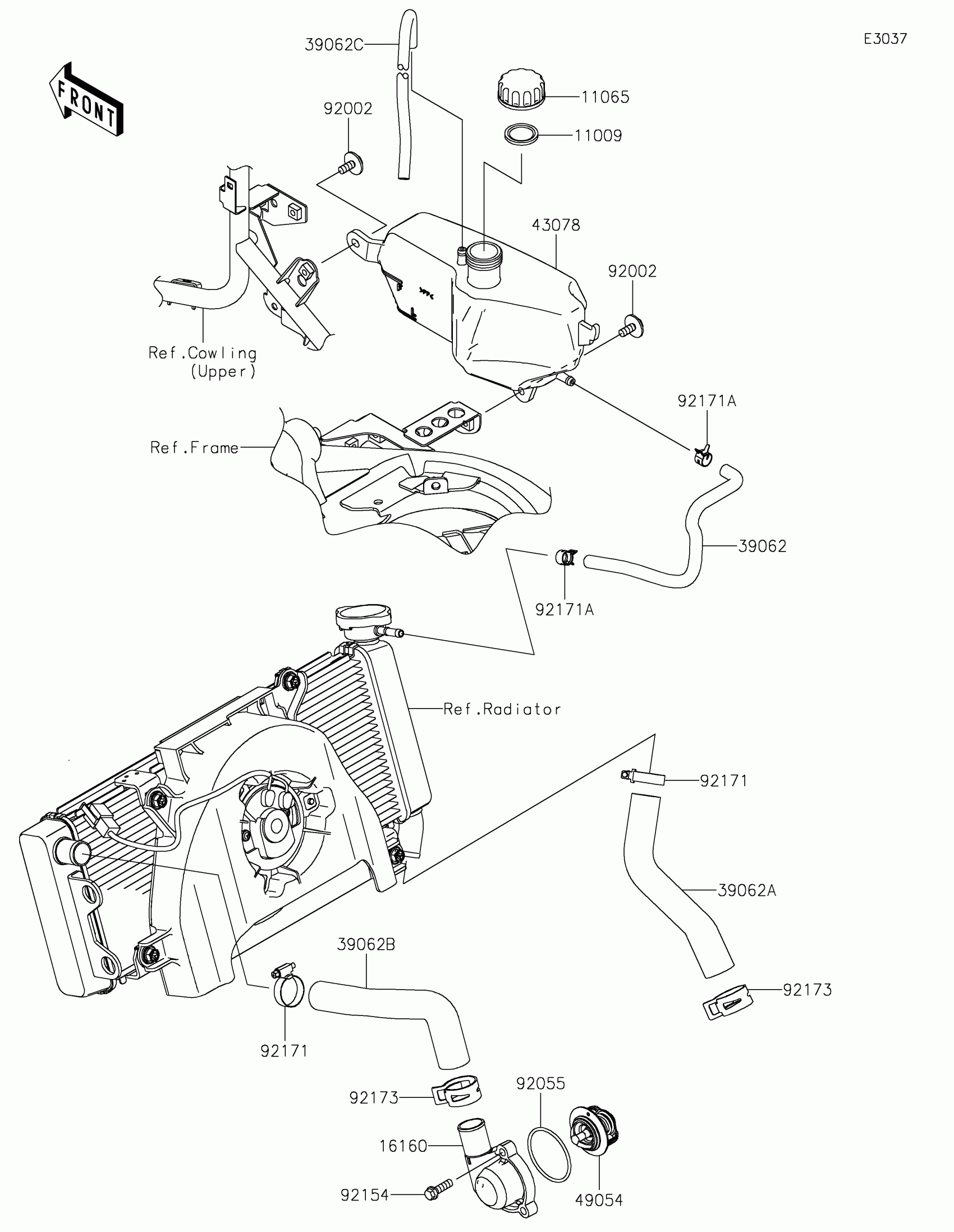

Kawasaki Versys 650 Water Pipe Diagram

Description

Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11065

CAP

11065-0969

$2.02

16160

BODY,THERMOSTAT

16160-0830

$46.93

39062

HOSE-COOLING,RAD-RESERVOIR

39062-0163

$7.30

39062A

HOSE-COOLING,W/PUMP-RADIATOR

39062-0752

$13.48

39062B

HOSE-COOLING,HEAD-RADIATOR

39062-0776

$13.48

39062C

HOSE-COOLING,BREATHER

39062-0940

$12.73

43078

RESERVOIR

43078-0614

$46.98

49054

THERMOSTAT

49054-0001

$30.76

92002

BOLT,6X16

92002-1188

$4.10

92055

RING-O,46.7X2.4

92055-0992

$6.32

92154

BOLT,FLANGED,6X20

92154-1778

$2.26

92171

CLAMP

92171-0337

$9.89

92171A

CLAMP,10.5X8X0.7

92171-1992

$6.22

92173

CLAMP

92173-1416

$3.56
