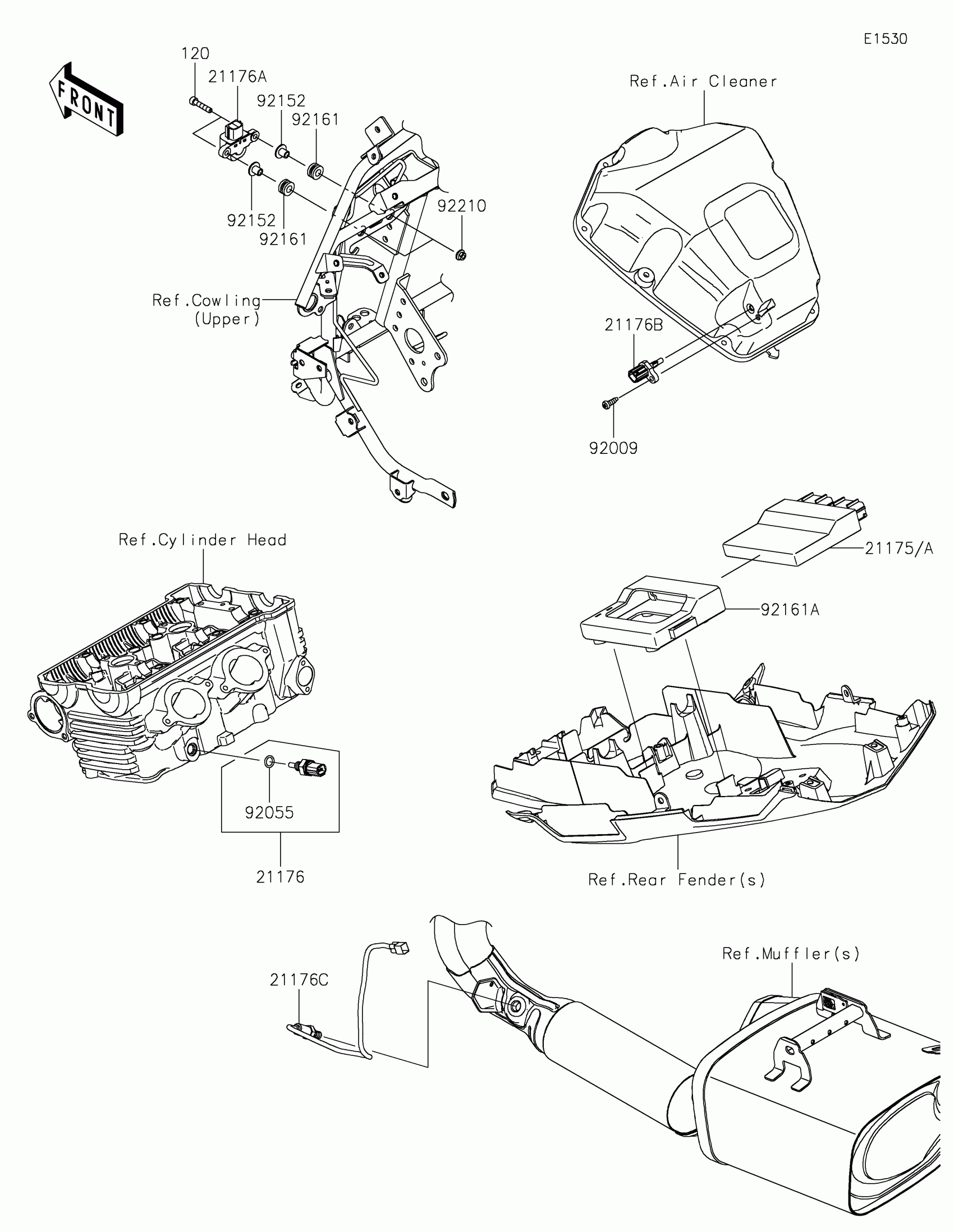

Kawasaki Versys 650 Fuel Injection Diagram

Description

Price

21175

CONTROL UNIT-ELECTRONIC

21175-1741

Unavailable

21175A

CONTROL UNIT-ELECTRONIC

21175-1742

$1,196.11

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$86.97

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

21176C

SENSOR,OXYGEN

21176-0969

$235.01

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92055

RING-O,9.5X1.9

92055-0016

$8.89

92152

COLLAR

92152-1592

$3.02

92161

DAMPER,8X16X8.6

92161-0685

$6.61

92161A

DAMPER,ECU

92161-1854

$21.71

92210

NUT,FLANGED,5MM

92210-0007

$2.70

120

BOLT-SOCKET,5X25

120CA0525

$4.71
