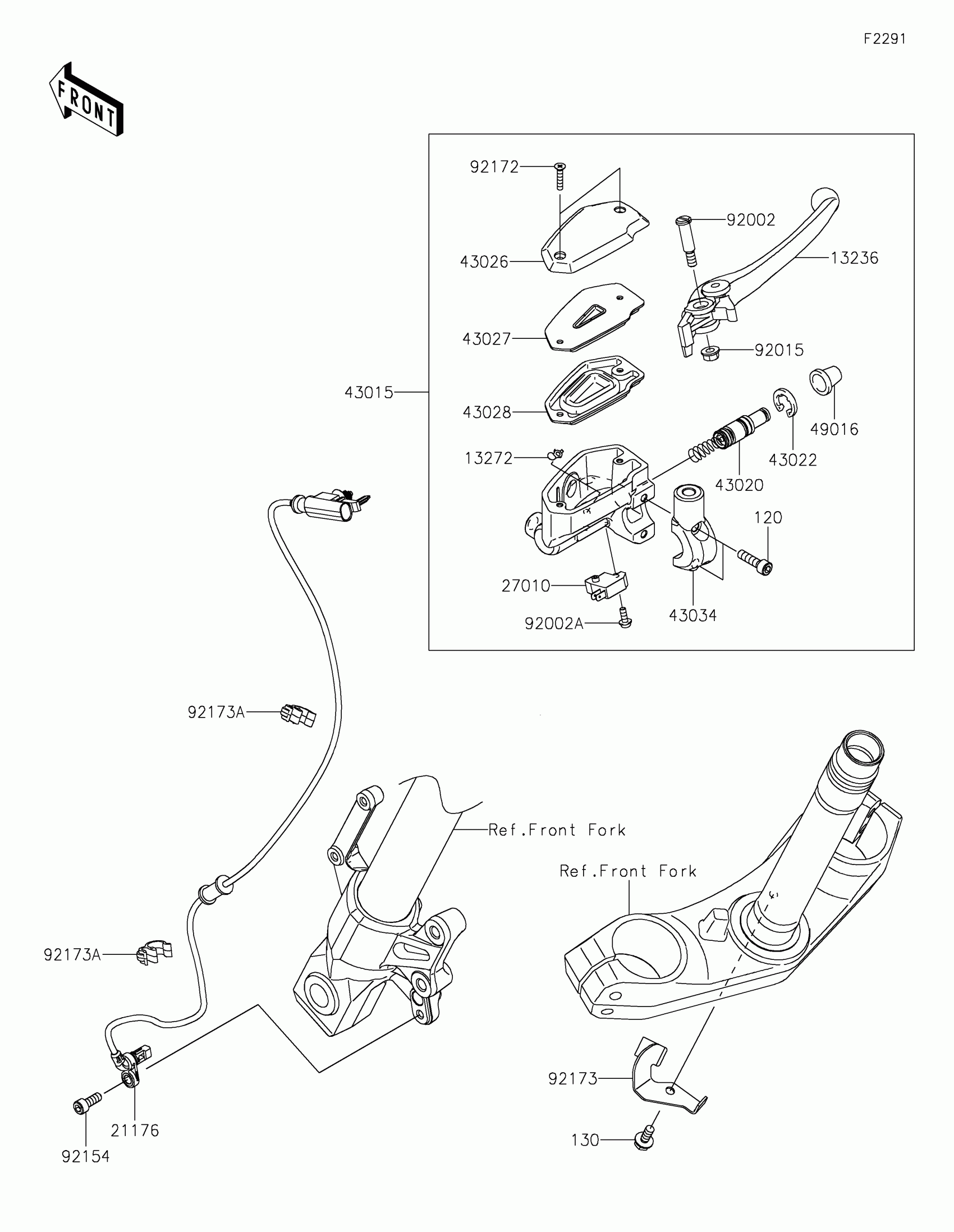

Kawasaki Versys 650 Front Master Cylinder Diagram

Description

Price

13236

LEVER-COMP,FRONT BRAKE

13236-0140

$68.13

13272

PLATE

13272-0573

$7.60

21176

SENSOR,FR

21176-0942

$139.72

27010

SWITCH,BRAKE

27010-0762

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0601

$410.93

43020

PISTON-COMP-BRAKE

43020-0008

$65.80

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-0019

$46.21

43027

PLATE-DIAPHRAGM

43027-0008

$8.69

43028

DIAPHRAGM

43028-0015

$36.45

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0049

$45.06

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92154

BOLT,SOCKET,6X16

92154-0235

$2.95

92172

SCREW,4X20

92172-0320

$3.90

92173

CLAMP,FORK UNDER HOLDER

92173-1288

$4.96

92173A

CLAMP,HOSE&SENSOR LINE

92173-1613

$1.42

120

BOLT-SOCKET,6X22

120CB0622

$5.31

130

BOLT-FLANGED,6X14

130BA0614

$1.20
