Description

Price

11065

CAP,FORK,LH,GRAY

11065-1369-11G

$132.33

11065A

CAP,FORK,RH,GRAY

11065-1370-11G

$132.33

11065B

CAP

11065-1371

$34.89

44008

PIPE-FORK OUTER,A.BLACK

44008-0072-499

$327.94

44013

PIPE-FORK INNER,RH

44013-0358

$426.71

44013A

PIPE-FORK INNER,LH

44013-0398

$426.71

44023

CYLINDER-SET-FORK

44023-0122

$132.59

44023A

CYLINDER-SET-FORK

44023-0172

$132.58

44026

SPRING-FRONT FORK

44026-0187

$60.79

44037

HOLDER-FORK UNDER

44037-0149

$426.60

44039

HOLDER-FORK UPPER,F.S.BLACK

44039-0159-18R

$212.04

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44065

BUSHING-FRONT FORK,GUIDE

44065-0030

$20.55

44065A

BUSHING-FRONT FORK

44065-0036

$20.83

44065B

BUSHING-FRONT FORK

44065-0063

$29.85

44071

DAMPER-ASSY,FORK,RH,BLACK

44071-1413-48M

$890.88

44071A

DAMPER-ASSY,FORK,LH,BLACK

44071-1570-48M

$890.88

92026

SPACER,FORK OUTER

92026-1276

$9.51

92033

RING-SNAP

92033-1222

$6.51

92049

SEAL-OIL

92049-0125

$26.40

92055

RING-O

92055-0131

$5.65

92066

PLUG

92066-0032

$11.66

92093

SEAL,DUST

92093-0035

$25.59

92150

BOLT,SOCKET

92150-1511

Unavailable

92152

COLLAR

92152-1893

$17.12

92153

BOLT,SOCKET,8X22

92153-0028

$7.98

92154

BOLT

92154-1295

$2.26

120

BOLT-SOCKET,8X40

120CA0840

$2.80

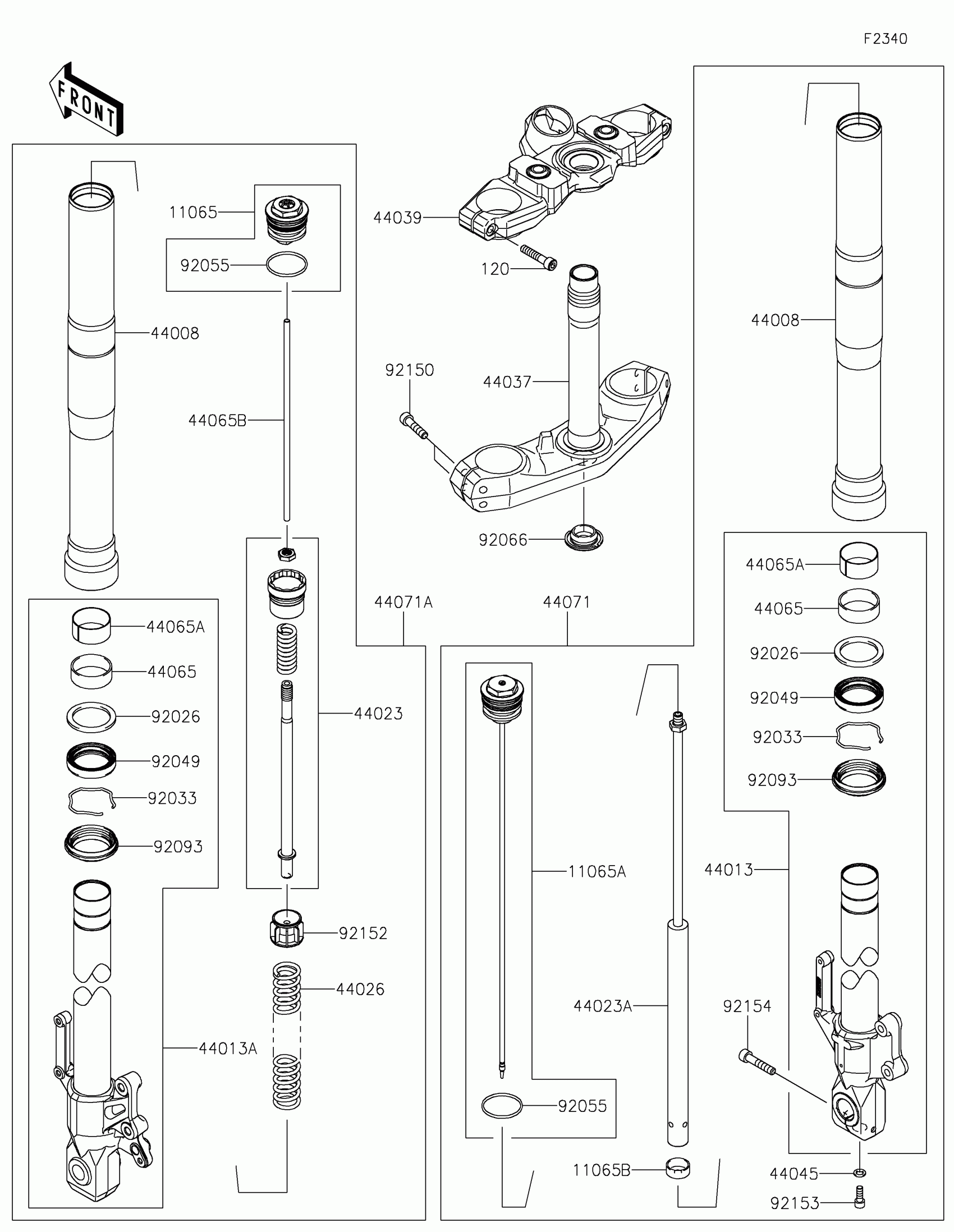

Kawasaki Versys 650 Front Fork Diagram

CAP,FORK,LH,GRAY

CAP,FORK,RH,GRAY

CAP

PIPE-FORK OUTER,A.BLACK

PIPE-FORK INNER,RH

PIPE-FORK INNER,LH

CYLINDER-SET-FORK

CYLINDER-SET-FORK

SPRING-FRONT FORK

HOLDER-FORK UNDER

HOLDER-FORK UPPER,F.S.BLACK

GASKET,FORK CYLINDER BOLT

BUSHING-FRONT FORK,GUIDE

BUSHING-FRONT FORK

BUSHING-FRONT FORK

DAMPER-ASSY,FORK,RH,BLACK

DAMPER-ASSY,FORK,LH,BLACK

SPACER,FORK OUTER

RING-SNAP

SEAL-OIL

RING-O

PLUG

SEAL,DUST

BOLT,SOCKET

COLLAR

BOLT,SOCKET,8X22

BOLT

BOLT-SOCKET,8X40
