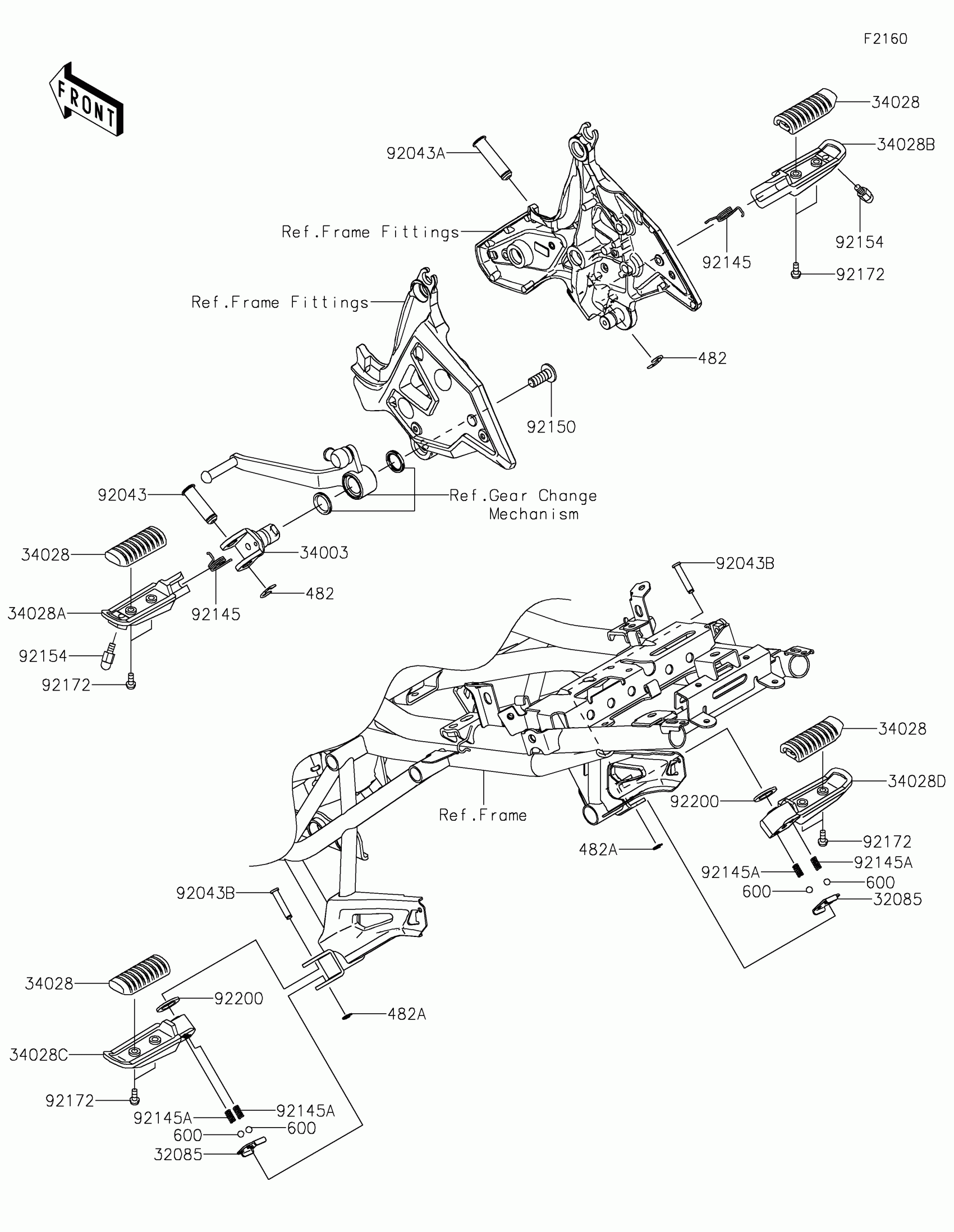

Kawasaki Versys 650 Footrests Diagram

Description

Price

32085

STOPPER,REAR STEP

32085-0047

$5.57

34003

HOLDER-STEP,FR,LH

34003-0145

$44.47

34028

STEP,RUBBER

34028-0133

$14.85

34028A

STEP,FR,LH

34028-0327

$36.60

34028B

STEP,FR,RH

34028-0328

$36.60

34028C

STEP,RR,LH

34028-0377

$45.71

34028D

STEP,RR,RH

34028-0378

$45.71

92043

PIN,12X37

92043-0025

$5.57

92043A

PIN,12X37.5

92043-0026

$5.57

92043B

PIN,6X34

92043-1271

$5.52

92145

SPRING,STEP RETURN

92145-0723

$3.67

92145A

SPRING

92145-1319

$1.81

92150

BOLT,SOCKET,10X25

92150-1268

$6.22

92154

BOLT,BANK SENSOR

92154-0838

$5.33

92172

SCREW-PAN-WP-CROS,5X14

92172-0473

$2.32

92200

WASHER,16X26X2.3

92200-0043

$7.65

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

482A

CIRCLIP-TYPE-E

482EA5000

$1.34

600

BALL-STEEL,1/4

600A0800

$0.62
