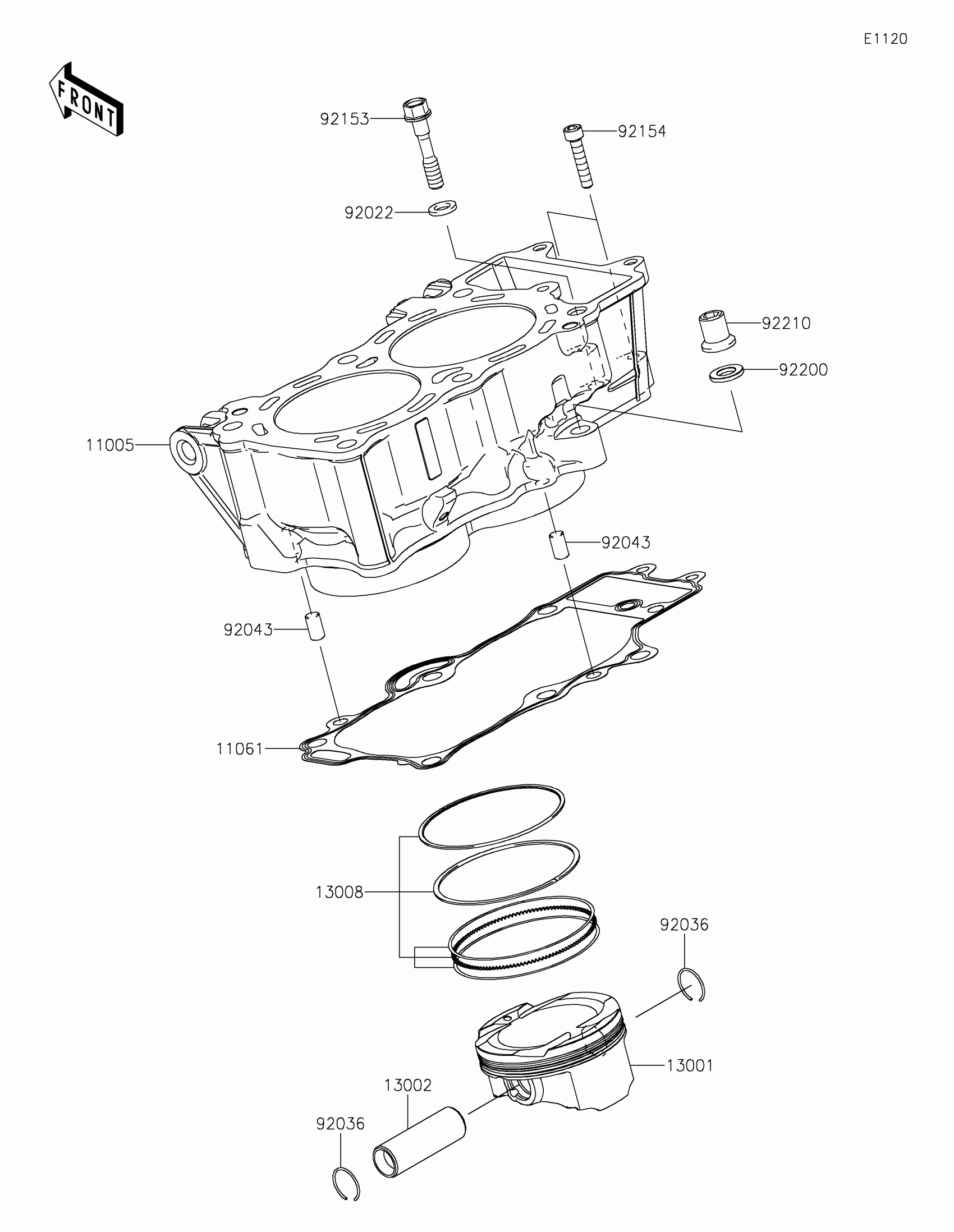

Kawasaki Versys 650 Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-0580

$1,242.96

11061

GASKET,CYLINDER BASE

11061-0171

$33.08

13001

PISTON-ENGINE

13001-0760

$93.21

13002

PIN-PISTON

13002-0007

$19.58

13008

RING-SET-PISTON

13008-1196

$66.40

92022

WASHER,9X15.5X2

92022-1401

$1.39

92036

RING-SNAP,PISTON PIN

92036-008

$0.49

92043

PIN,8X14

92043-1567

$2.26

92153

BOLT,8X43

92153-1011

$8.68

92154

BOLT,SOCKET,6X30

92154-0116

$2.95

92200

WASHER,10.5X19X2.3

92200-0363

$3.90

92210

NUT

92210-0223

$18.57
