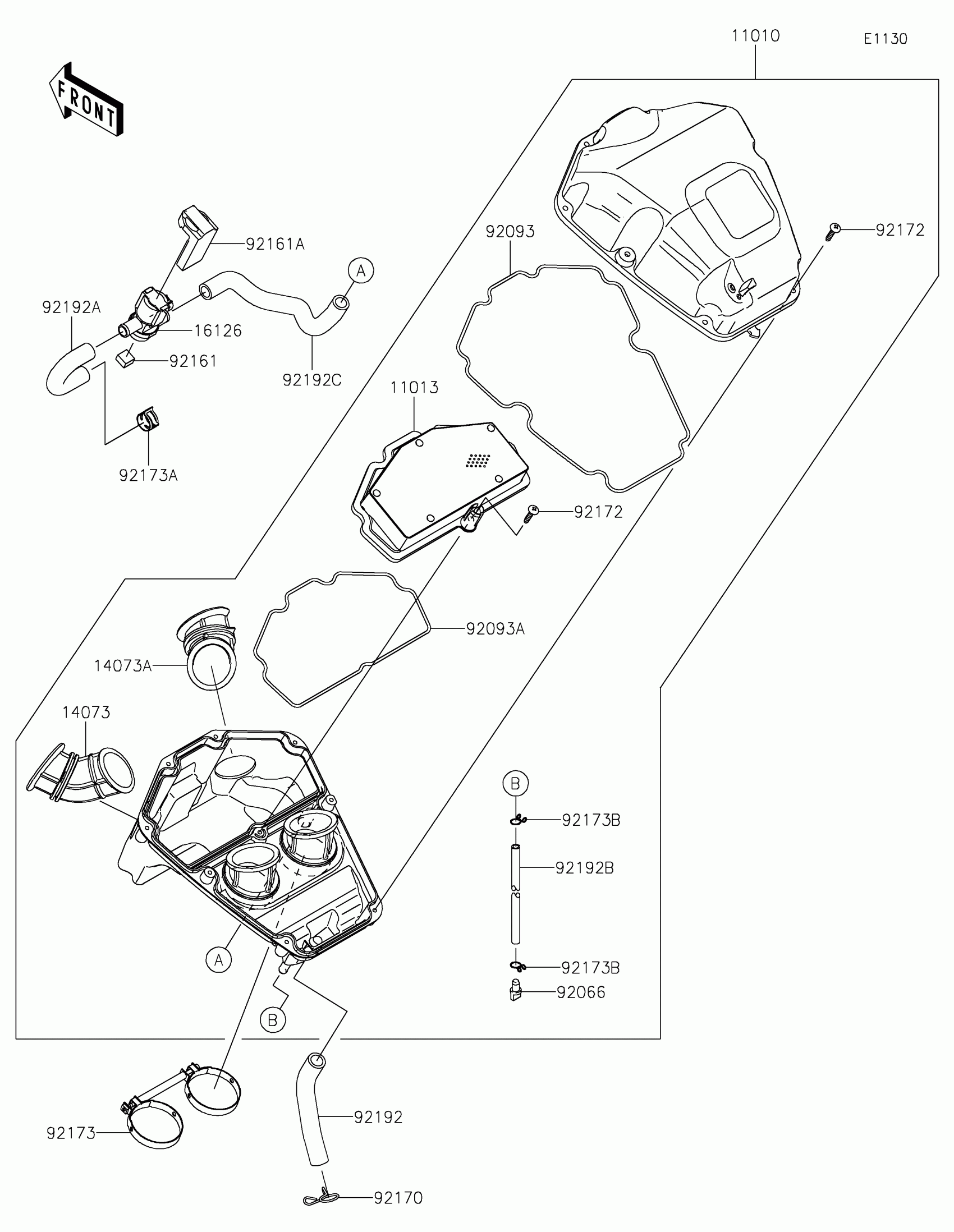

Kawasaki Versys 650 Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0991

$369.48

11013

ELEMENT-AIR FILTER

11013-0745

$47.66

14073

DUCT,INTAKE,LH

14073-0965

$32.64

14073A

DUCT,INTAKE,RH

14073-0966

$32.64

16126

VALVE,AIR SWITCHING

16126-0743

$88.65

92066

PLUG,DRAIN

92066-0782

$10.34

92093

SEAL

92093-0610

$18.31

92093A

SEAL,ELEMENT

92093-0611

$14.76

92161

DAMPER

92161-1374

$1.19

92161A

DAMPER

92161-1933

$14.56

92170

CLAMP

92170-1017

$4.69

92172

SCREW,5X25

92172-0891

$1.94

92173

CLAMP

92173-1698

$20.52

92173A

CLAMP

92173-2344

$1.97

92173B

CLAMP,10MM

92173-2400

$3.02

92192

TUBE,BREATHER

92192-0958

$7.64

92192A

TUBE,ASV-HEAD

92192-0960

$7.64

92192B

TUBE,DRAIN,L=245

92192-1380

$11.54

92192C

TUBE,ASV-A/C

92192-1381

$12.96
