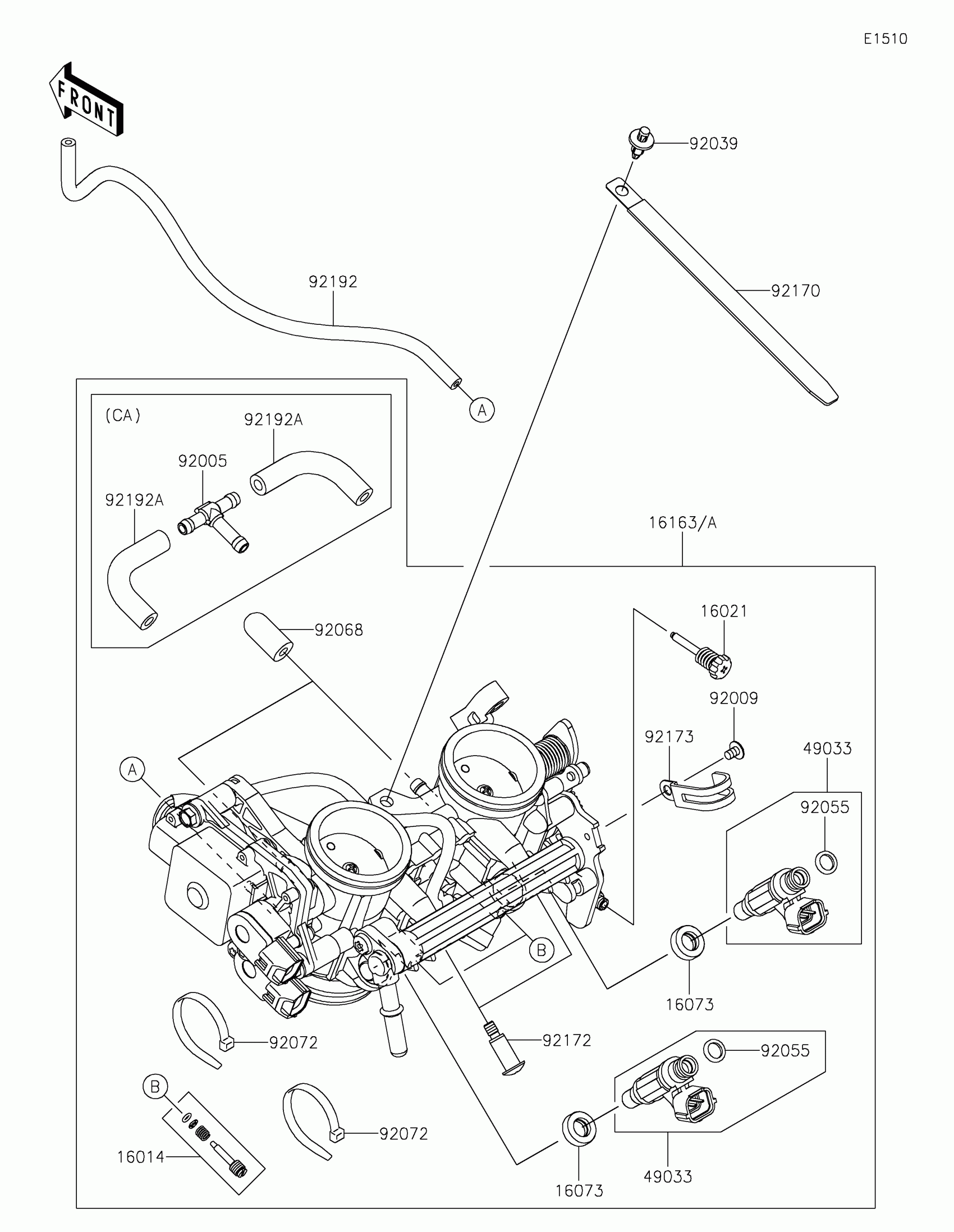

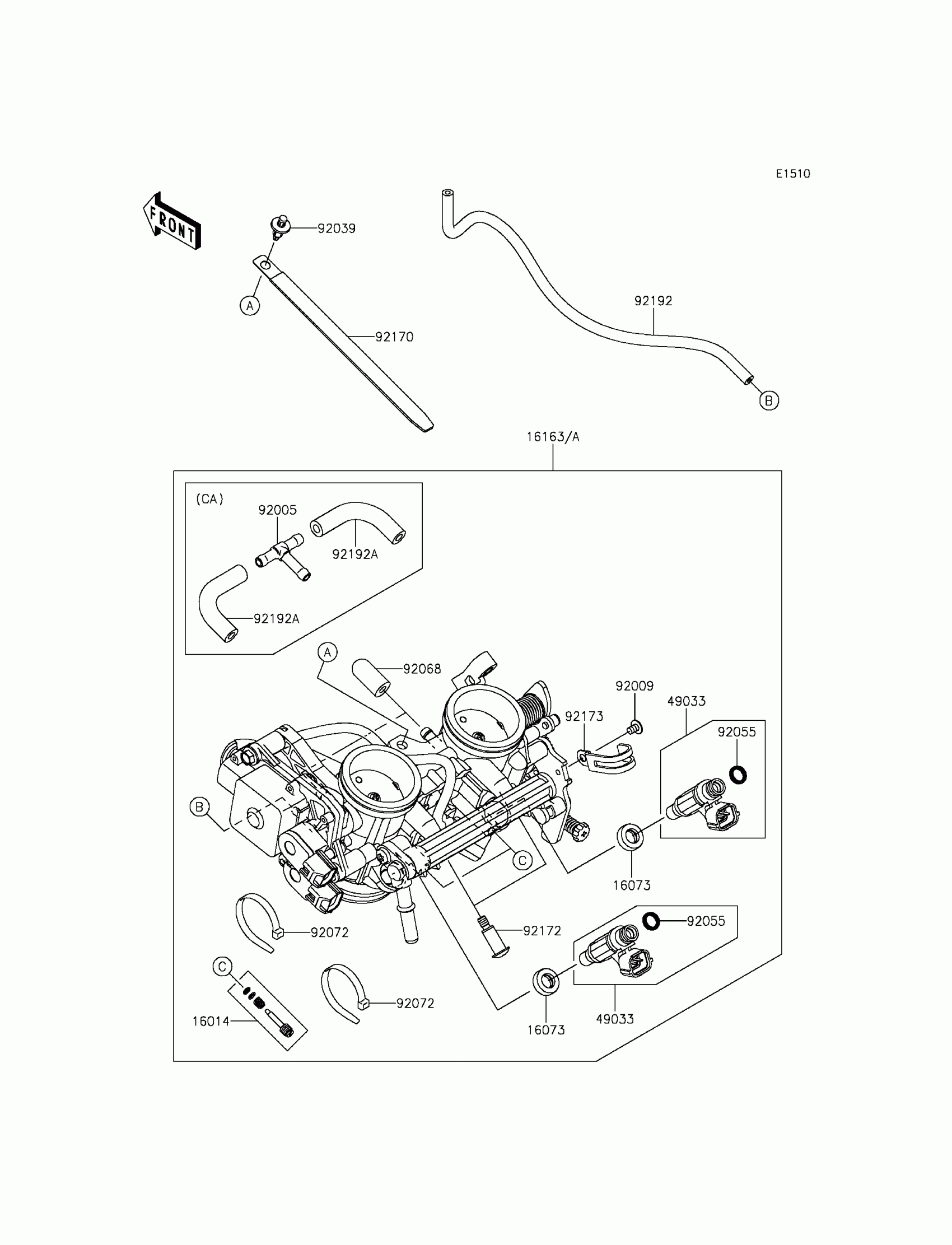

Kawasaki VERSYS® 650 ABS Throttle Diagram

Description

Price

16014

SCREW-PILOT AIR

16014-0002

$25.16

16021

SCREW-THROTTLE STOP

16021-0033

$69.57

16073

INSULATOR

16073-3707

$6.18

49033

NOZZLE-INJECTION

49033-0011

$92.32

92009

SCREW,CLAMP

92009-1860

$2.49

92039

RIVET

92039-0068

$2.97

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92072

BAND,SUB-HARNESS

92072-0012

$5.00

92170

CLAMP,L=150

92170-1114

$7.45

92172

SCREW,PIPE INJECTION

92172-0064

$2.80

92173

CLAMP

92173-0288

$6.26

92192

TUBE,3X6.7X300

92192-0977

$5.01
