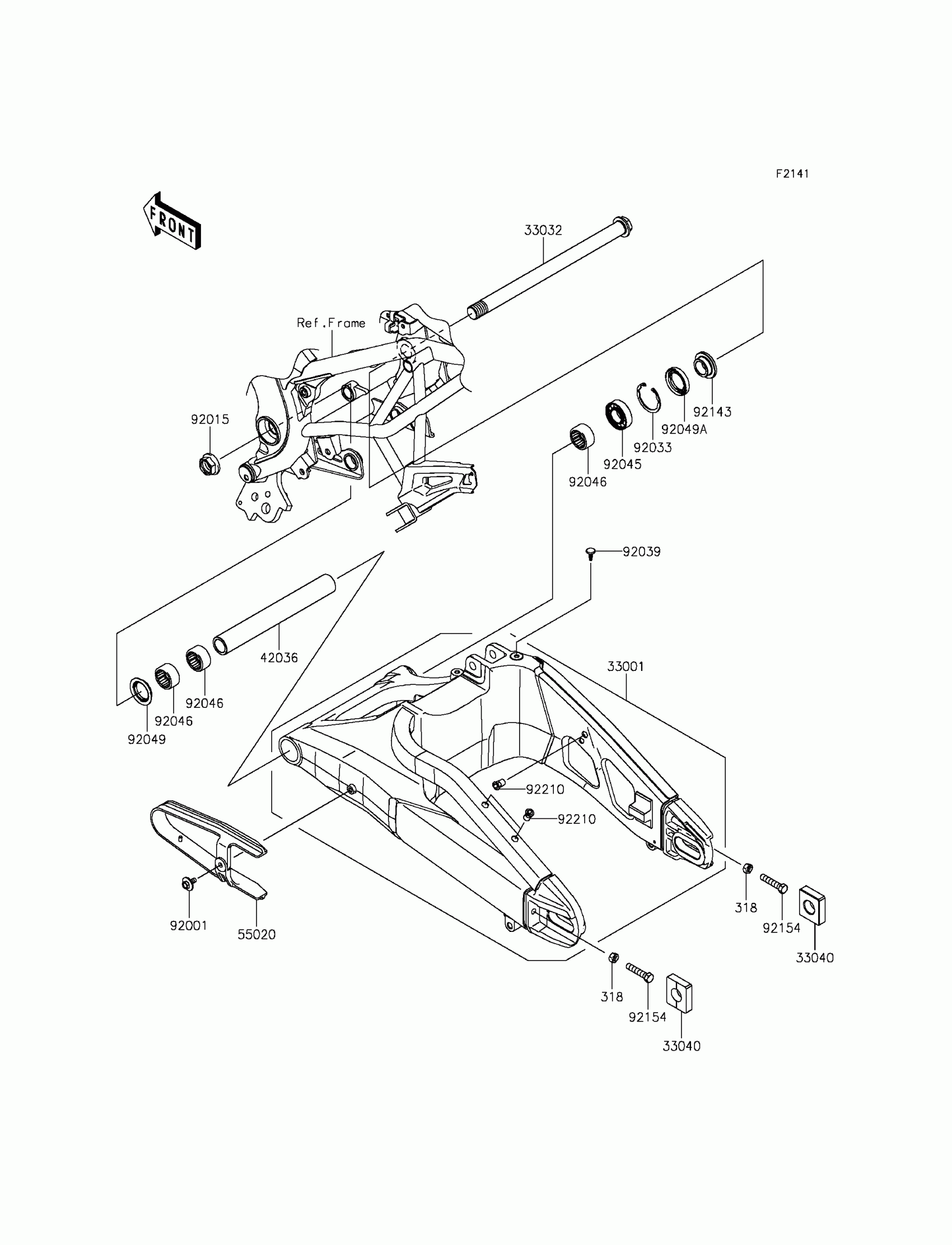

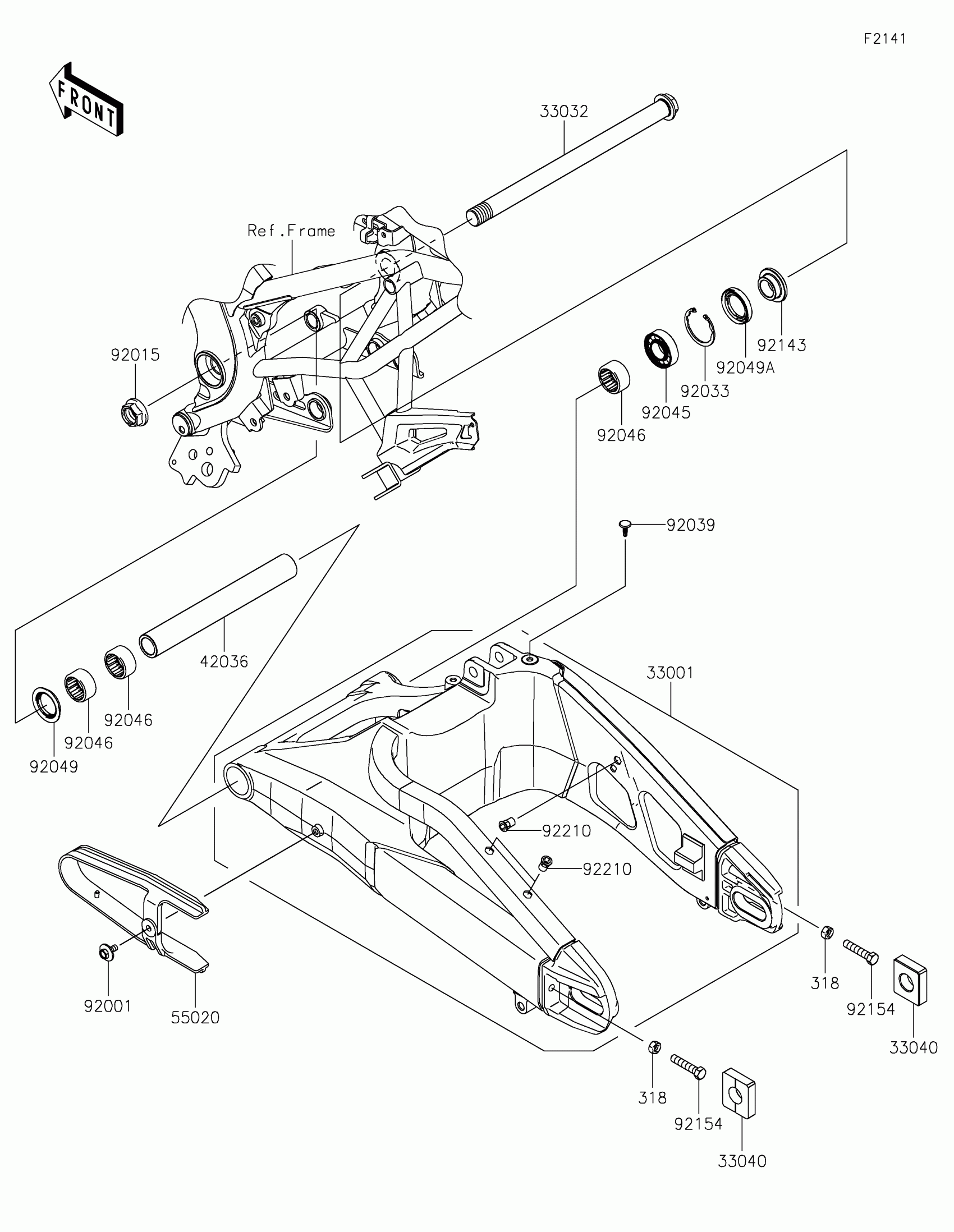

Kawasaki VERSYS® 650 ABS Swingarm Diagram

Description

Price

318

NUT-HEX-SMALL,8MM

318BA0800

$1.34

33001

ARM-COMP-SWING,F.S.BLACK

33001-0719-18R

$735.05

33032

SHAFT-SWING ARM,20X300

33032-0041

$100.34

33040

ADJUSTER-CHAIN

33040-1109

$19.66

42036

SLEEVE,SWING ARM,L=219.5

42036-0066

$71.54

55020

GUARD,CHAIN

55020-0234

$40.46

92001

BOLT,6X16

92001-1950

$4.31

92015

NUT,FLANGED,20MM

92015-1724

$14.90

92033

RING-SNAP,42MM

92033-1041

$6.16

92039

RIVET

92039-3787

$3.90

92045

BEARING-BALL,6004UL11

92045-0017

$14.39

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$21.54

92049

SEAL-OIL

92049-0132

$9.39

92049A

SEAL-OIL

92049-0138

$9.39

92143

COLLAR,SWING ARM,RH,L=12.5

92143-1727

$19.64

92154

BOLT,8X40

92154-0288

$4.92

92210

NUT,POP,6MM,L=15

92210-1397

$5.48
