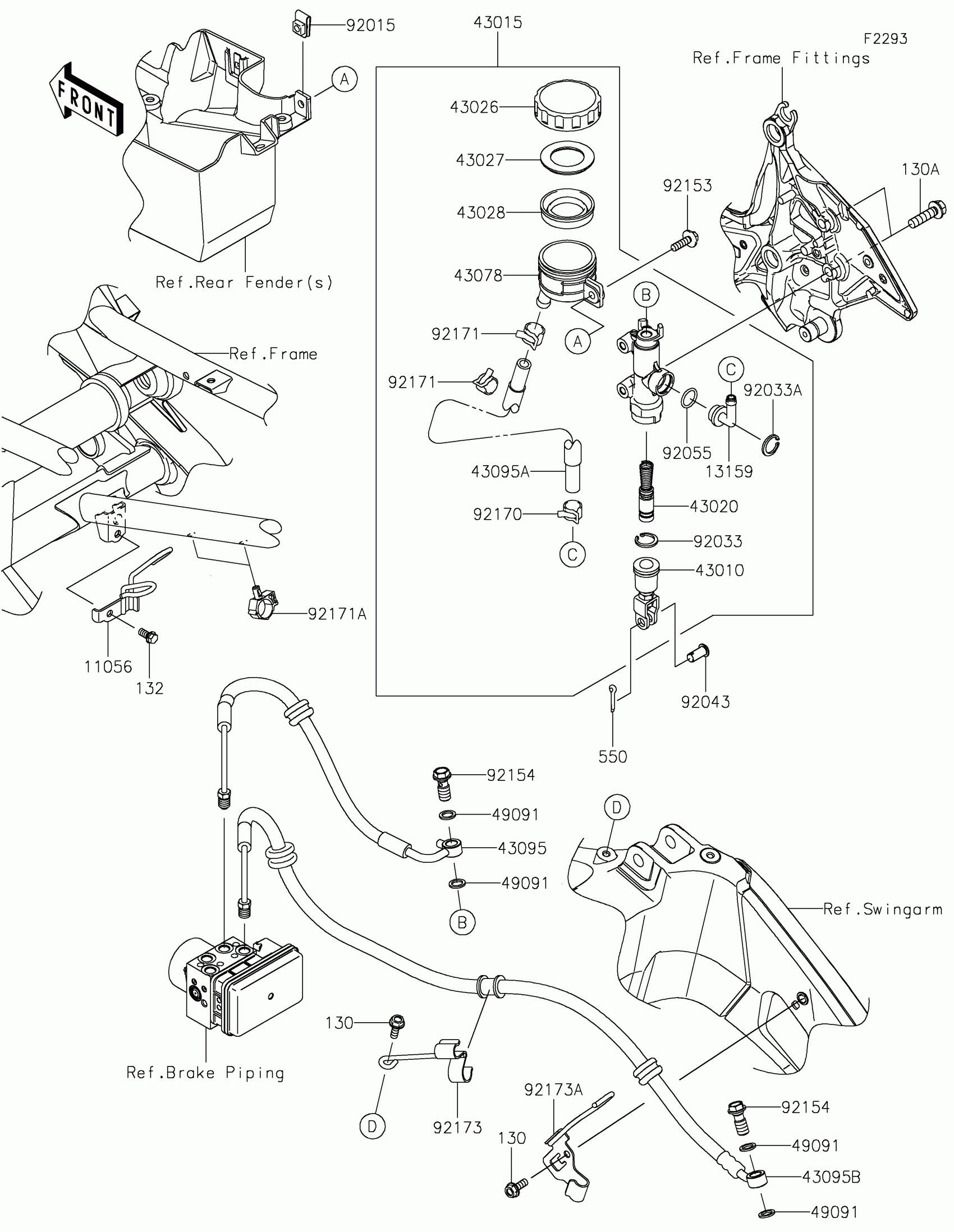

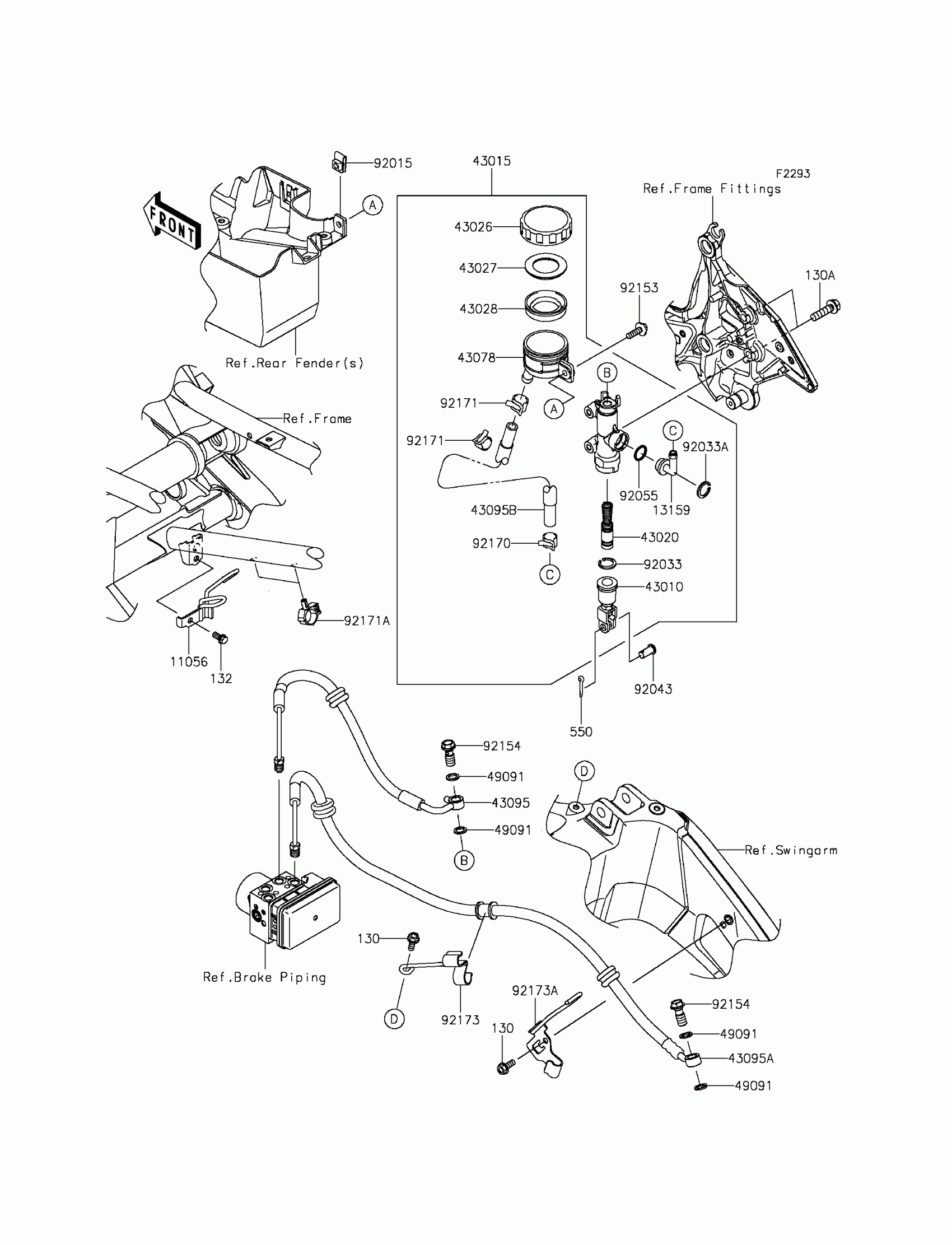

Kawasaki VERSYS® 650 ABS Rear Master Cylinder Diagram

#

Description
Price

11056

BRACKET,FRAME COMP

11056-4072

$9.43

130

BOLT-FLANGED,6X16

130BB0616

$2.06

130A

BOLT-FLANGED,8X30

130CA0830

$1.08

13159

CONNECTOR

13159-1056

$14.10

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

43010

ROD-ASSY-BRAKE

43010-1062

$51.24

43015

CYLINDER-ASSY-MASTER,RR

43015-0602

$262.42

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

$28.25

43095

HOSE-BRAKE,RR M/C-ABS UNIT

43095-0823

$147.62

43095A

HOSE-BRAKE,500MM

43095-0842

$16.74

43095B

HOSE-BRAKE,ABS UNIT-RR CAL.

43095-0938

$185.98

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

550

PIN-COTTER,2.0X15

550AA2015

$1.12

92015

NUT,6MM

92015-1602

$7.34

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN

92043-0182

$3.29

92055

RING-O,14.8X2.4

92055-0741

$3.71

92153

BOLT,6X22

92153-0725

$2.15

92154

BOLT,FLANGED,10X23

92154-0732

$5.05

92170

CLAMP,HOSE

92170-1091

$5.00

92171

CLAMP,HOSE

92171-0463

$6.38

92171A

CLAMP

92171-0955

$5.33

92173

CLAMP,SWING ARM,FR

92173-1290

$7.33

92173A

CLAMP,SWING ARM

92173-1291

$9.17
