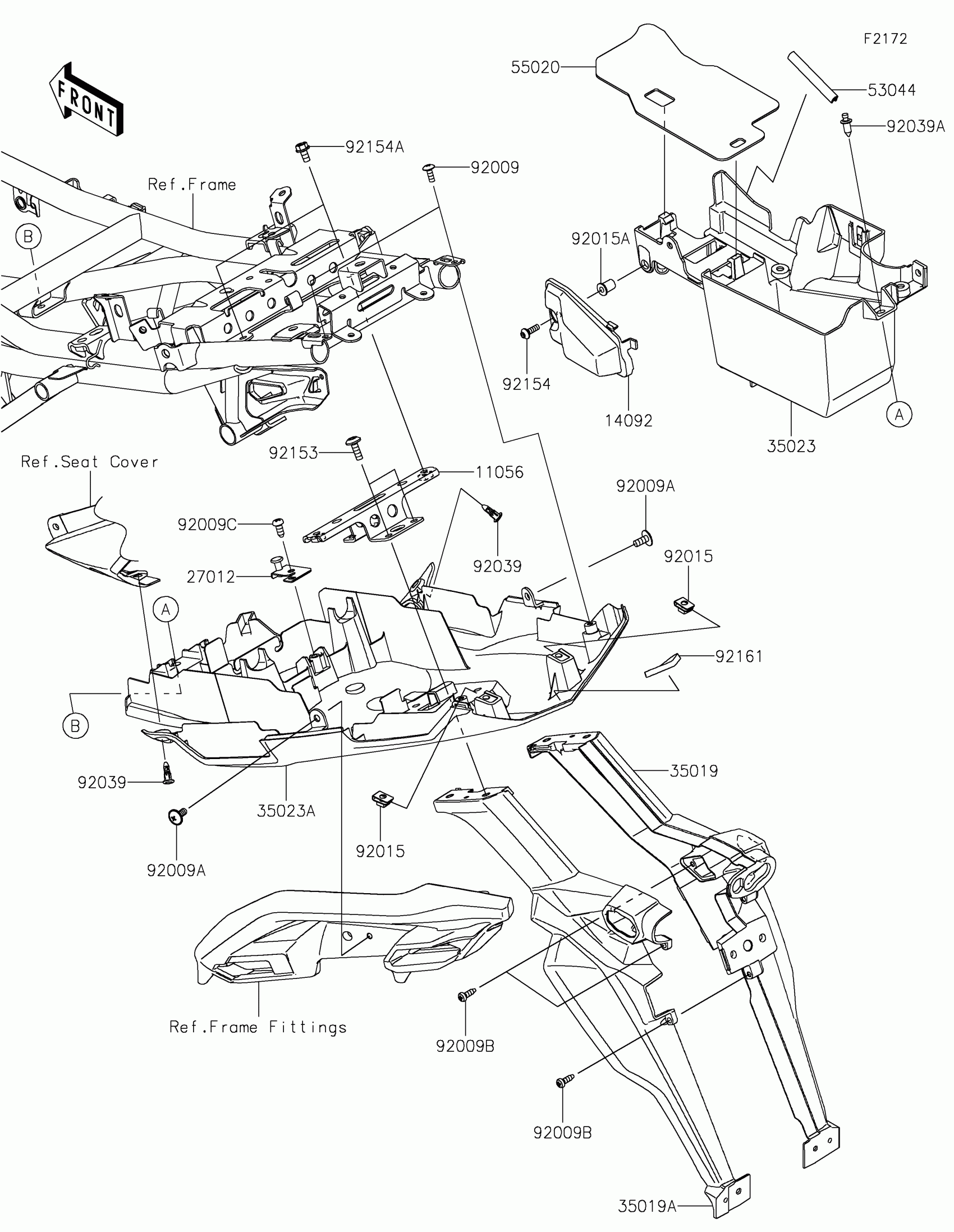

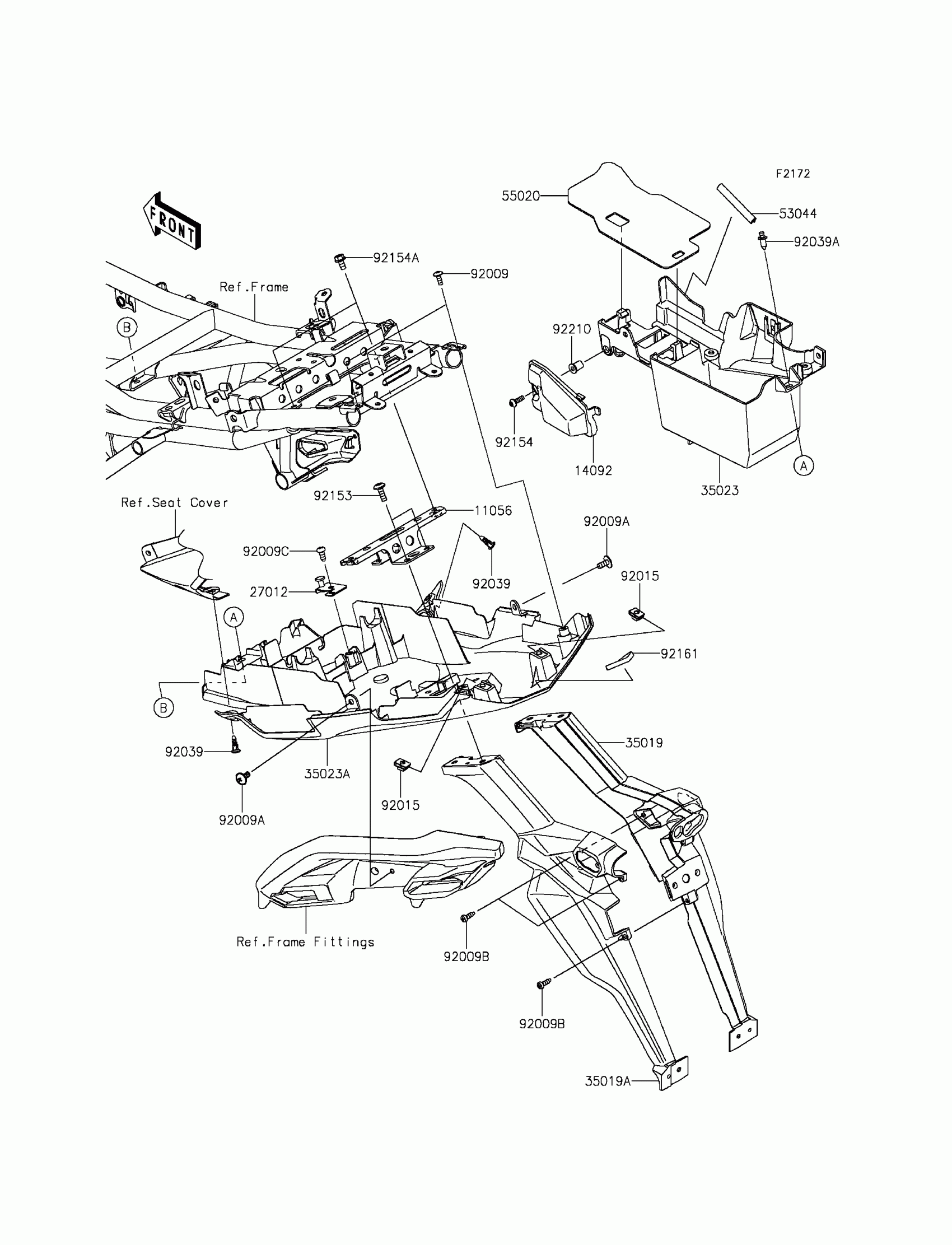

Kawasaki VERSYS® 650 ABS Rear Fender(s) Diagram

Description

Price

11056

BRACKET,FLAP

11056-3973

$19.20

14092

COVER,SWITCH MAINTE.

14092-0174

$10.51

27012

HOOK

27012-0781

$3.29

35019

FLAP,RR,RH

35019-0586

$35.12

35019A

FLAP,RR,LH

35019-0654

$32.12

35023

FENDER-REAR,FR

35023-0163

$32.80

35023A

FENDER-REAR,RR

35023-0416

$81.30

53044

TRIM,L=65

53044-0584

$2.73

55020

GUARD,HEAT

55020-0220

$21.82

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92009A

SCREW,6X14

92009-1662

$3.92

92009B

SCREW,TAPPING,5X16

92009-1984

$2.58

92009C

SCREW,6X14

92009-3845

$1.06

92015

NUT,5MM

92015-1627

$5.93

92015A

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0709

$2.67

92039A

RIVET

92039-1283

$2.80

92153

BOLT,SOCKET,6X18

92153-1675

$2.15

92154

BOLT,SOCKET,5X16

92154-0182

$2.55

92154A

BOLT,FLANGED,6X12

92154-1050

$1.97

92161

DAMPER,24X66X6.5

92161-1684

$2.26
